A reliable sanitary piping system starts with every connection point. Even when valves and equipment perform well, poor-quality connection components can affect sealing performance, maintenance efficiency, and long-term system stability.

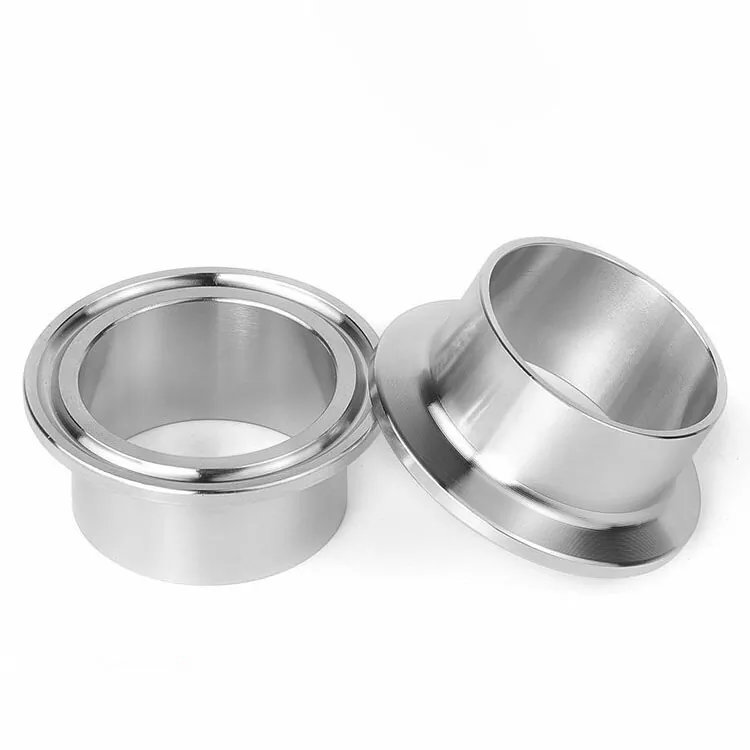

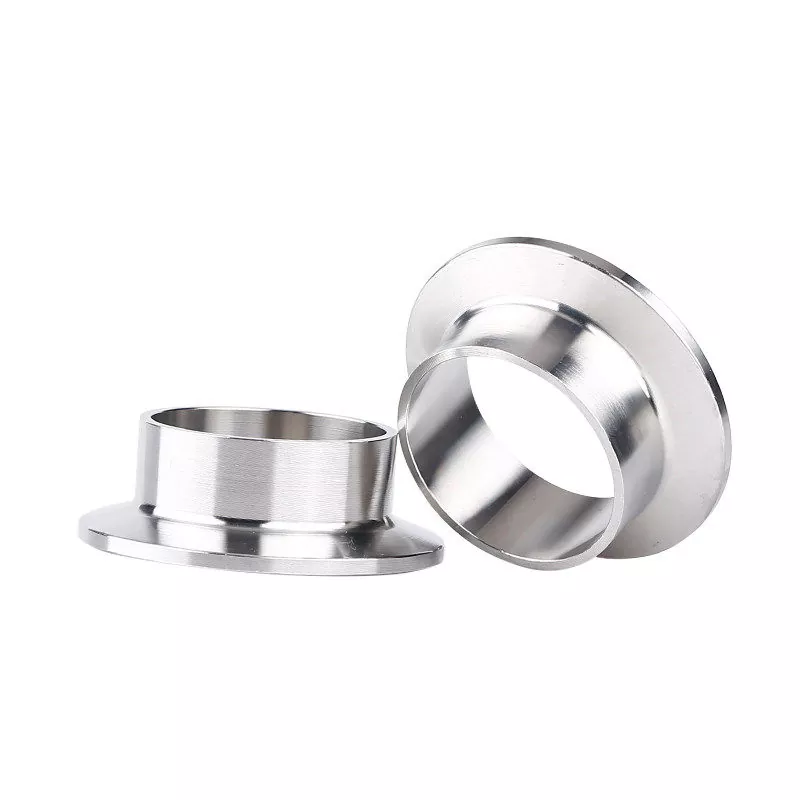

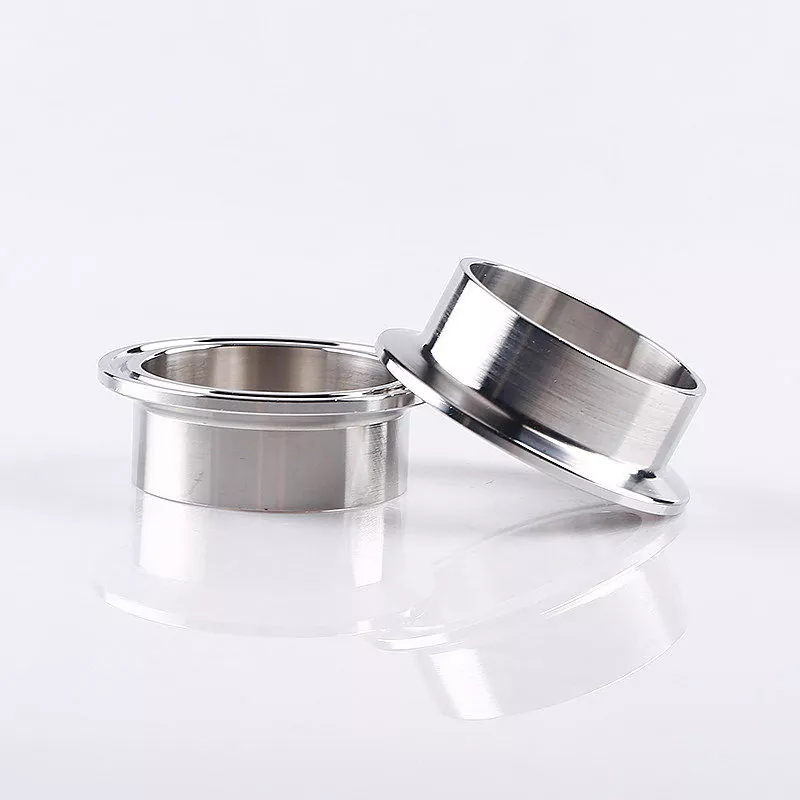

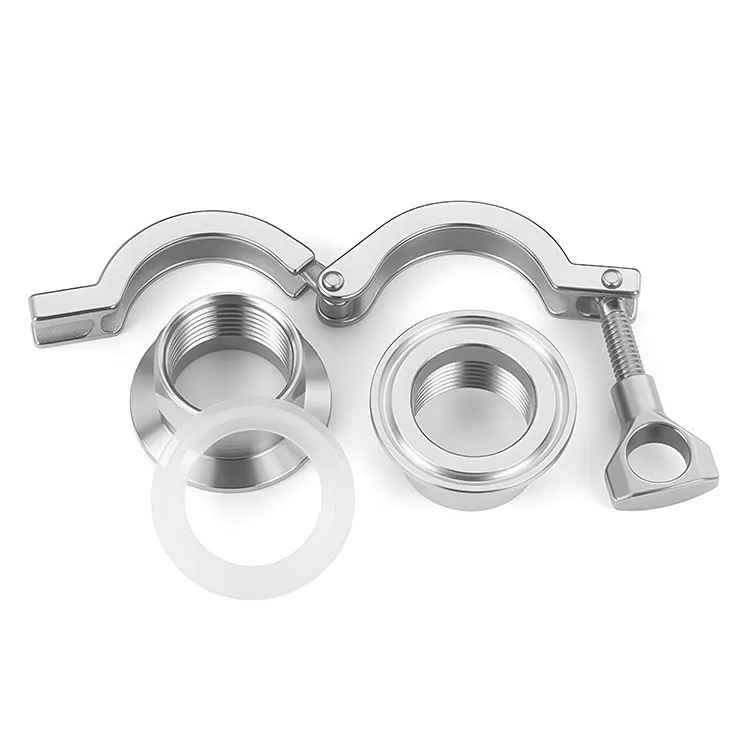

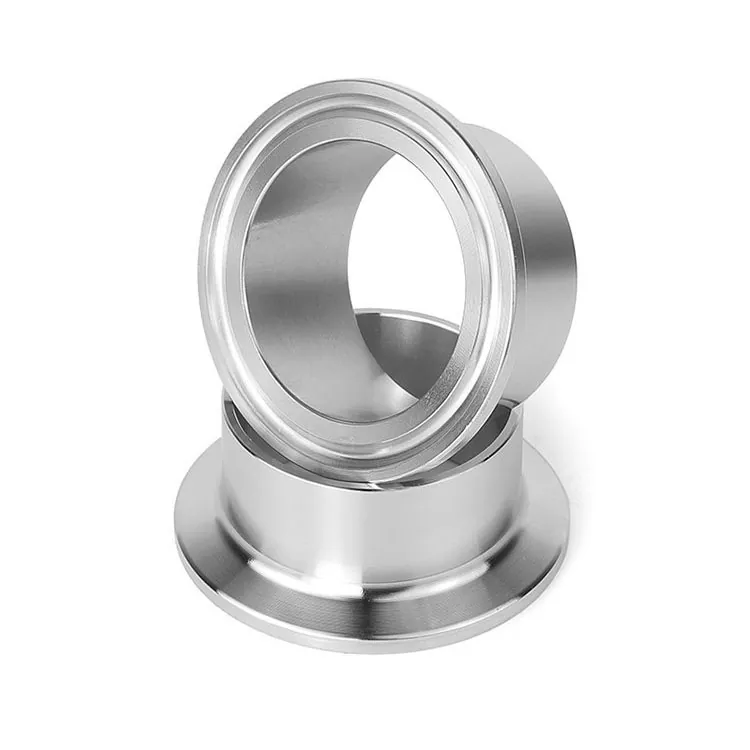

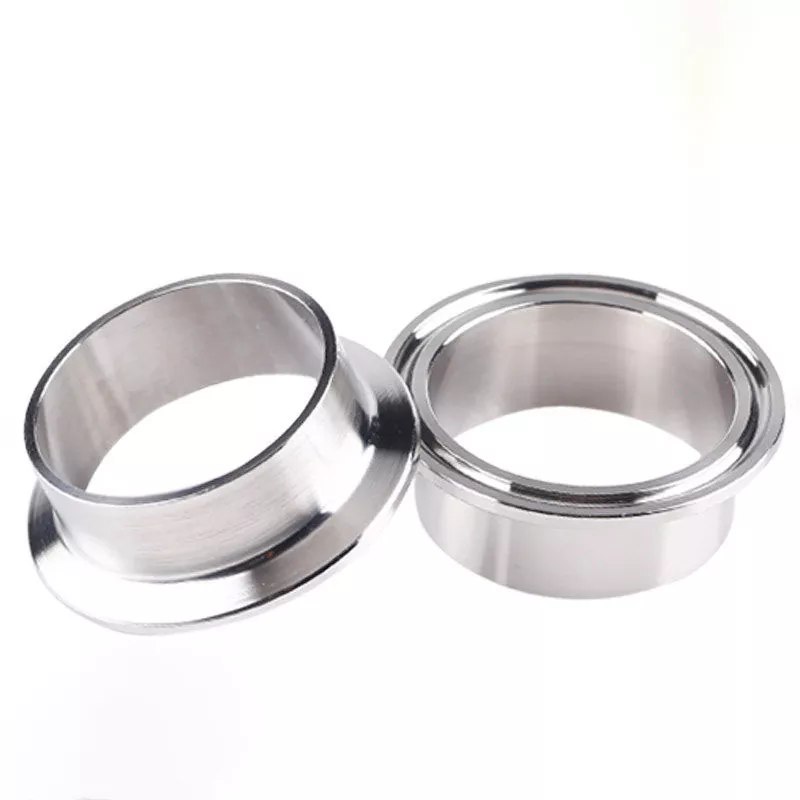

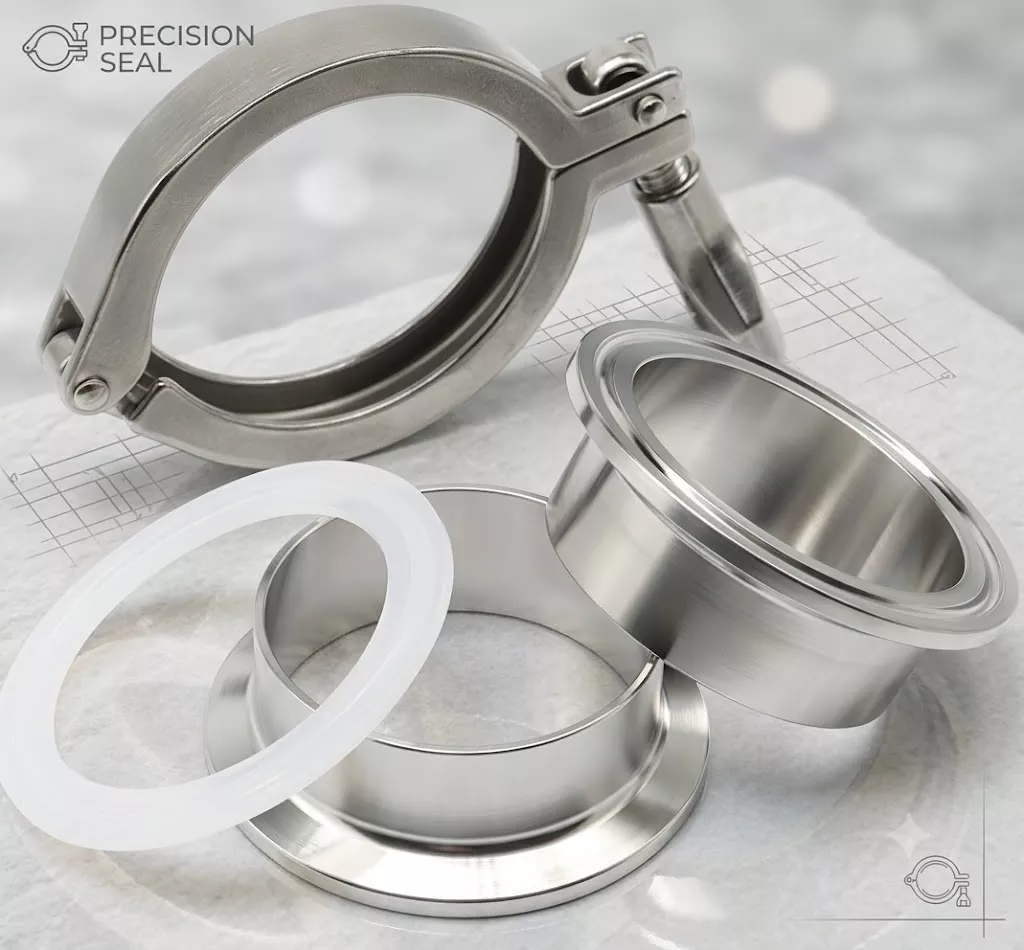

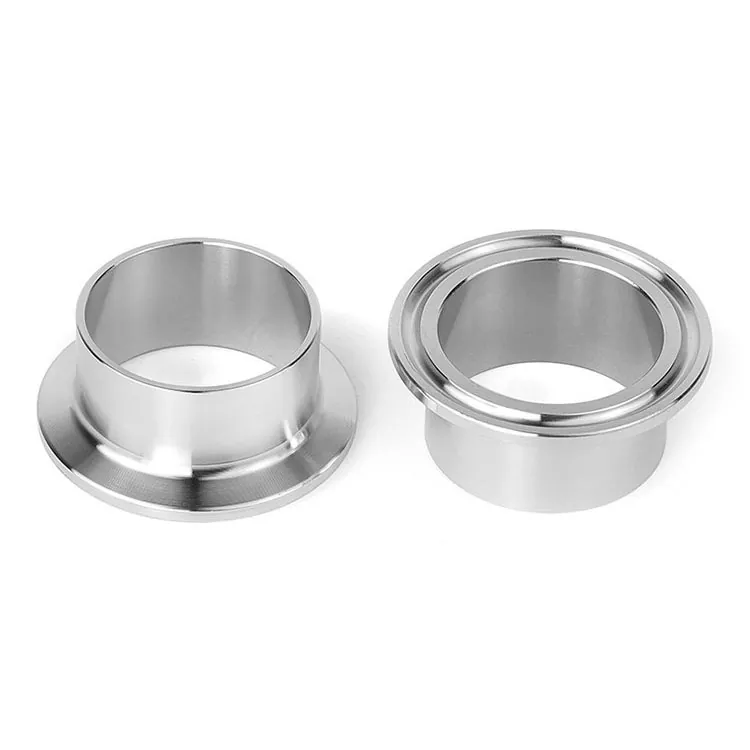

DINGYUE tri clamp ferrules are precision-machined components used to connect sanitary pipes, valves, pumps, tanks, and other processing equipment through clamp assemblies. During installation, the ferrule works together with a gasket and clamp to create a secure connection while maintaining a smooth internal pipeline surface.
We manufacture ferrules using high-quality stainless steel materials, including 304 and 316L options, according to different application requirements. For pharmaceutical, biotech, and high-purity applications, 316L stainless steel provides enhanced corrosion resistance and durability. For general food and beverage systems, 304 stainless steel offers a reliable and economical solution.
With support for common sanitary standards and customized specifications, our Tri-Clamp ferrules are widely applied in hygienic processing lines, equipment manufacturing projects, and advanced liquid cooling systems.
|
Category |
Key Parameters / Options |
Description & Application Notes |
|
Material Grade |
• 316L Stainless Steel (1.4404 / 1.4435) • 304 Stainless Steel (1.4301) |
316L: Low carbon, superior corrosion resistance. Preferred for biopharmaceutical, high-purity, and liquid cooling applications. 304: Standard commercial grade for food, beverage, and general industrial lines. |
|
Pressure Rating |
• Standard Wingnut Clamp: 10 – 25 bar (145 – 360 psi) • High-Pressure Bolted Clamp: Up to 50 – 100 bar (725 – 1450 psi) |
Working pressure depends on clamp design, operating temperature, and gasket material selection. |
|
Gasket Materials & Temperature |
• EPDM: -40°C to +135°C (-40°F to +275°F) • PTFE (Teflon): -20°C to +200°C (-4°F to +392°F) • FKM / Viton: -20°C to +200°C (-4°F to +392°F) • Silicone: -50°C to +180°C (-58°F to +356°F) |
EPDM: Best for steam and CIP/SIP cleaning. PTFE: Maximum chemical inertness. FKM: Excellent oil and strong acid/base resistance. Silicone: High flexibility and thermal stability. |
|
Standards & Compliance |
• ASME BPE / 3-A (US / Bio-Pharm) • DIN 32676 (Europe / Industrial) • ISO 1127 / ISO 2037 (International) • BS 4825 Part 3 (UK) • FDA 21 CFR 177.2600 & USP Class VI |
Guarantees global interchangeability, hygienic design compliance (zero dead-leg), and food/pharmaceutical grade safety. |
In hygienic processing systems, connection points require the same attention as valves and pipelines. Small gaps, uneven surfaces, or poor sealing structures may increase cleaning difficulty and affect production safety.
At DINGYUE, we machine ferrule sealing surfaces with controlled accuracy to ensure better contact with gaskets and clamps. The smooth internal structure helps reduce potential residue accumulation and supports efficient CIP and SIP cleaning procedures.
For industries such as food, beverage, and pharmaceutical manufacturing, this means easier maintenance and better control of hygiene conditions.
Sanitary pipelines often experience repeated pressure changes, temperature cycles, and cleaning procedures. Connection components must maintain reliable performance under these conditions.
Our tri clamp ferrules are manufactured with precise flange dimensions to provide consistent positioning between connected parts. When combined with suitable gaskets and clamps, they help create stable sealing performance and reduce risks caused by misalignment or improper installation.
Production downtime can directly affect operating costs, especially when frequent cleaning or equipment replacement is required.

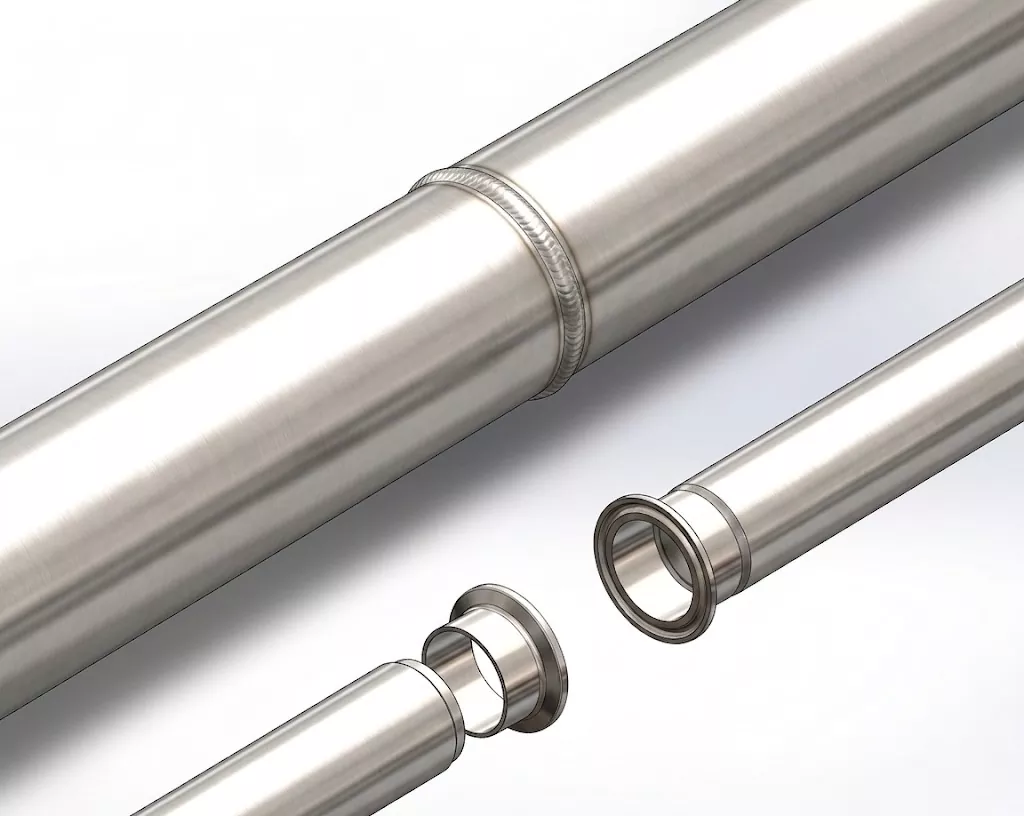

Compared with permanent welded connections, tri clamp systems allow faster assembly and disassembly. Operators can disconnect, inspect, clean, and reinstall components more efficiently, helping reduce maintenance time and improve production flexibility.
Many processing facilities combine equipment from different suppliers, so connection compatibility is an important purchasing consideration.
DINGYUE tri clamp ferrules follow widely used sanitary connection standards, allowing integration with common valves, pumps, filters, tanks, and piping systems. This makes replacement easier and helps customers simplify spare parts management.
Our tri clamp ferrules are widely used in breweries, dairy plants, beverage production lines, and food processing equipment where hygienic connections and easy cleaning are required.
For pharmaceutical and biotech systems, 316L stainless steel ferrules provide reliable corrosion resistance and compatibility with strict sanitary processing requirements.

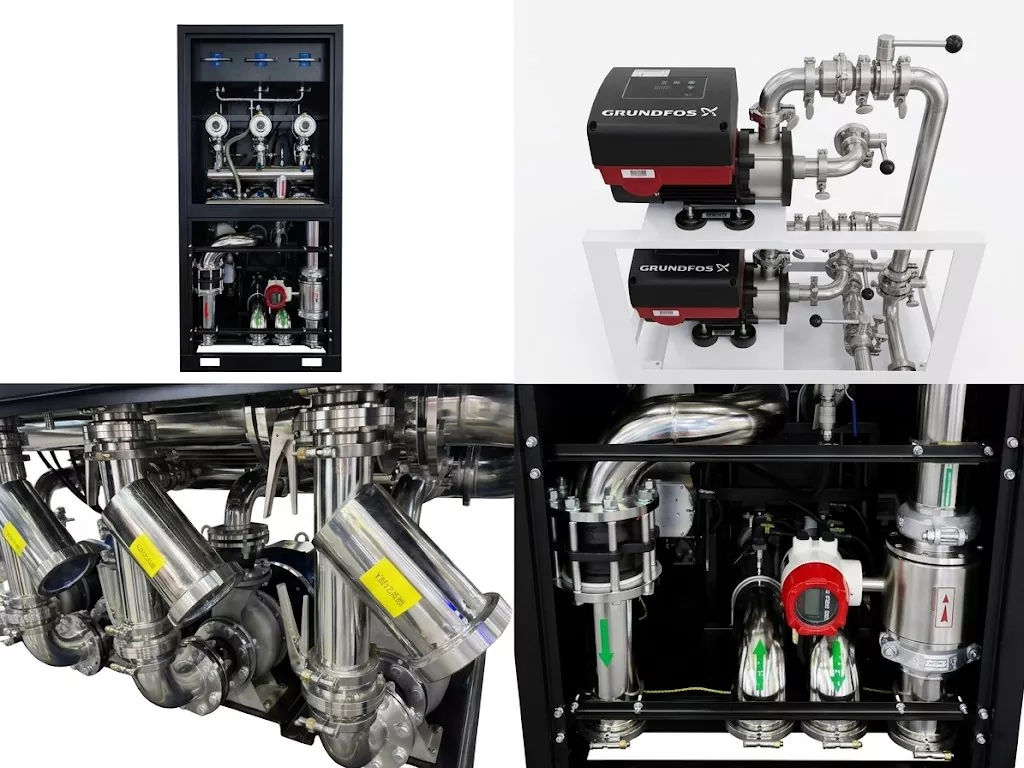

With the increasing demand for AI computing and high-performance servers, liquid cooling systems require reliable connection components to maintain continuous coolant circulation.
DINGYUE tri clamp ferrules support CDU piping systems and cooling loops with corrosion-resistant materials, accurate dimensions, and easy maintenance features.
304 stainless steel is widely used in food, beverage, and general hygienic piping systems. 316L stainless steel contains additional molybdenum, providing better resistance to corrosion and chemical exposure, making it more suitable for pharmaceutical, biotechnology, and high-purity applications.
Selection usually depends on pipe diameter, connection standard, operating conditions, and the equipment being connected. Our technical team can help confirm suitable dimensions based on your existing pipeline drawings or project requirements.
Yes. We manufacture products according to widely used sanitary standards, including ASME BPE, DIN, ISO, and other international specifications. This allows them to integrate with commonly used valves, pumps, tanks, and processing equipment.
Yes. We support customized manufacturing for different industries, including special dimensions, surface finishes, material requirements, and connection specifications. This service is commonly used for equipment manufacturers and engineering projects.
We control quality throughout the production process, including raw material verification, machining inspection, dimensional checks, and final appearance inspection. Material certificates and inspection documents can also be provided according to customer requirements.
These components are widely applied in industries where clean and reliable fluid transfer is required, including food and beverage processing, dairy production, pharmaceutical manufacturing, biotechnology systems, and high-purity liquid cooling applications.
tenance features make them suitable for continuous operation environments.
