In sanitary piping design, every change in direction can affect flow efficiency, cleaning performance, and system maintenance. DINGYUE 90° sanitary elbow fittings provide a practical solution for creating compact pipeline layouts while maintaining a consistent internal flow path.
Manufactured from 304 or 316L stainless steel with hygienic surface finishing, these elbows feature accurate dimensions and a smooth inner radius to help reduce turbulence and product retention during operation. They are commonly installed in processing equipment, tank connections, and transfer lines where reliable pipe routing and easy cleaning are essential.
|
Category |
Parameter |
Specifications & Details |
|
Product Overview |
Product Name |
90° Tri Clamp Elbow (45 Degree Clamp Elbow) |
|
|
Connection Type |
Quick-Release Tri-Clamp / Tri-Clover |
|
|
Applications |
Food & Beverage, Dairy, Brewery, Pharmacy, Biotechnology, and Chemical Industries |
|
Material & Standards |
Material Grade |
Stainless Steel 304, 316L (Available upon request) |
In sanitary processing systems, pipe fittings are directly related to cleaning efficiency and product safety. A poorly formed elbow may develop surface deformation or uneven areas during bending, creating places where liquid residue can remain after production.

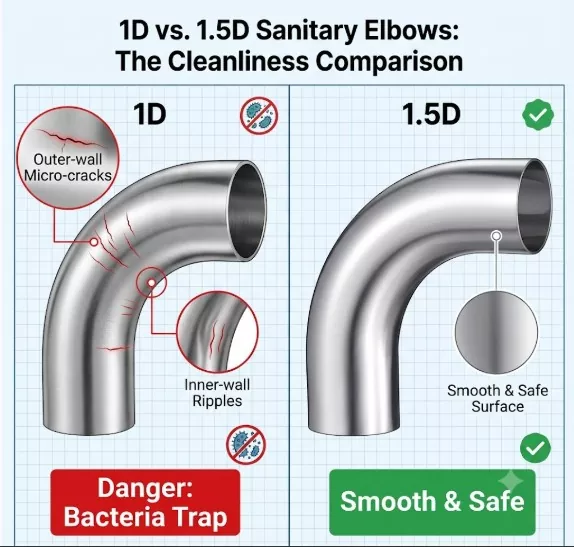

DINGYUE 90° sanitary elbows use a controlled 1.5D bend radius to maintain a smooth internal flow path. This helps reduce product retention areas, supports effective CIP cleaning, and lowers the risk of contamination in food, beverage, and pharmaceutical pipelines.
During the bending process, excessive deformation can weaken the outer wall of the elbow and affect the consistency of the material structure. This may lead to reduced durability in systems that operate continuously or require frequent cleaning cycles.
The 1.5D bend design provides a more balanced forming process, helping maintain uniform wall thickness and stable mechanical performance. This makes the elbow suitable for sanitary systems where reliability and service life are important considerations.
Sharp-radius elbows can create unnecessary turbulence and affect the smooth movement of fluids, especially in systems handling sensitive or viscous products.
With a carefully designed curved transition, DINGYUE 90° sanitary elbows help maintain a smoother flow direction change while preserving the original pipe diameter and roundness. This supports efficient fluid transfer in processing lines, reducing pressure loss and improving overall system performance.
Material quality directly affects the service life and hygiene performance of sanitary piping components. DINGYUE 90° sanitary elbows are manufactured from high-quality 304 and 316L stainless steel options, providing reliable corrosion resistance and mechanical strength for continuous processing environments.
The material selection allows the elbows to withstand frequent cleaning procedures and exposure to common processing conditions in food, beverage, dairy, and pharmaceutical applications. Compared with lower-grade alternatives, high-quality stainless steel helps maintain stable performance and reduces the risk of premature replacement.
In sanitary systems, internal surface quality has a direct impact on cleaning efficiency. Rough surfaces or inconsistent finishing may increase the chance of product residue accumulation during operation.
It features carefully finished internal and external surfaces to create a smoother flow path and support effective cleaning processes. The polished surface helps reduce material retention and makes the fittings suitable for applications where hygiene control and process cleanliness are critical.
A sanitary elbow must provide more than just a change in pipe direction. Poor dimensional accuracy can create installation difficulties, welding issues, or unnecessary flow disturbance in the pipeline system.
DINGYUE 90° sanitary elbows are produced with precise forming processes to maintain consistent dimensions and smooth curved transitions. This helps ensure better fitting compatibility during installation while supporting stable fluid movement in sanitary piping layouts.
DINGYUE 90° sanitary elbows are mainly manufactured from 304 and 316L stainless steel. 304 stainless steel is widely used in general food and beverage processing, while 316L stainless steel is preferred for pharmaceutical, biotech, and high-purity applications that require stronger corrosion resistance and higher hygiene performance.
They are commonly installed in hygienic piping systems where pipelines need to change direction while maintaining clean fluid transfer. Typical applications include food and beverage processing, dairy production, pharmaceutical equipment, biotechnology systems, and high-purity liquid cooling pipelines.
The bend radius influences both flow performance and cleaning efficiency. A properly designed bend helps reduce turbulence and prevents excessive deformation during manufacturing. DINGYUE uses controlled forming processes to maintain a smooth internal surface, helping minimize residue retention and support sanitary operation.
Yes. DINGYUE can provide customized solutions based on different piping requirements, including pipe diameter, wall thickness, connection standards, surface finishing, and special project specifications. Custom dimensions are available for OEM equipment manufacturers and engineering projects.
DINGYUE sanitary elbows can be manufactured according to commonly used sanitary piping standards, including DIN, SMS, and other international specifications. Available connection options include clamp, welded, and customized configurations depending on the installation requirements.
Each sanitary elbow undergoes inspection throughout the manufacturing process, including material verification, dimensional checking, surface quality inspection, and final appearance inspection. These controls help ensure consistent dimensions, reliable installation, and stable performance in sanitary piping systems.
