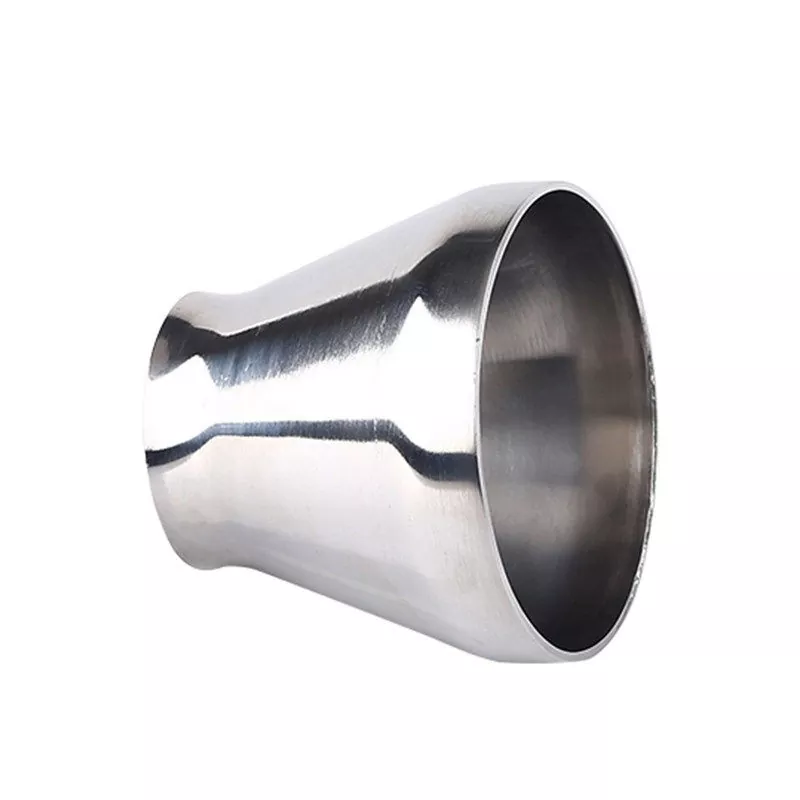

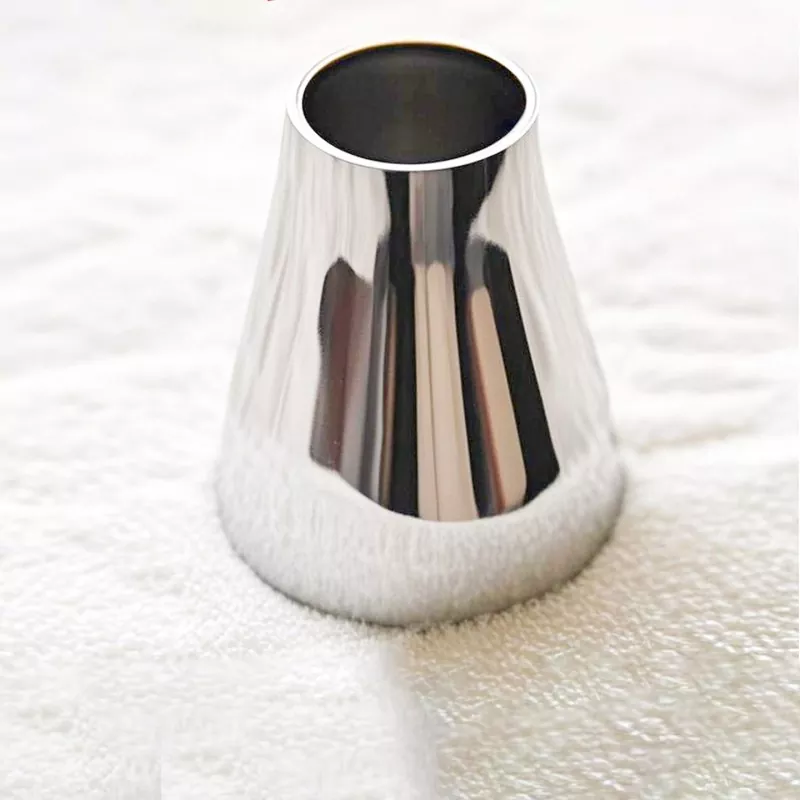

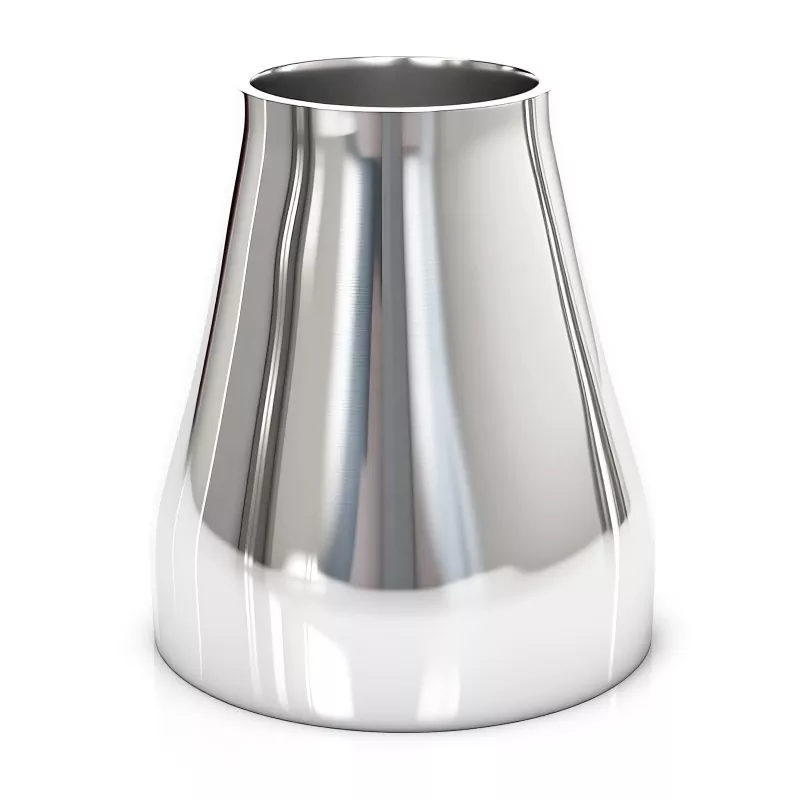

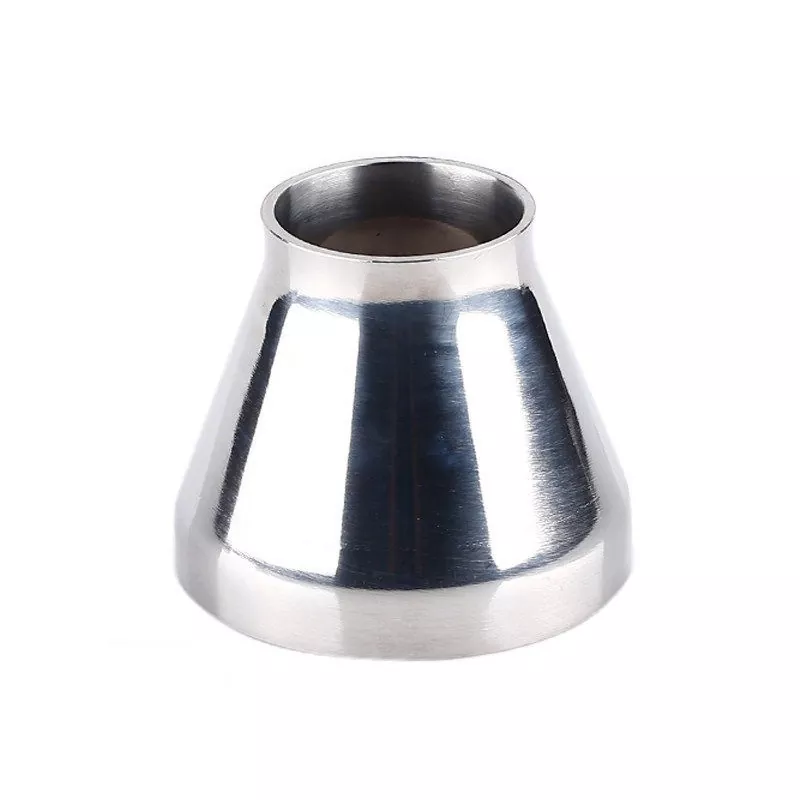

Sanitary Reducer

When a sanitary piping system requires a change in pipe size, an improperly designed transition can affect flow performance and create areas where materials may remain trapped. DINGYUE sanitary reducers provide a gradual connection between different pipeline diameters, helping equipment designers achieve a more efficient and hygienic piping layout.

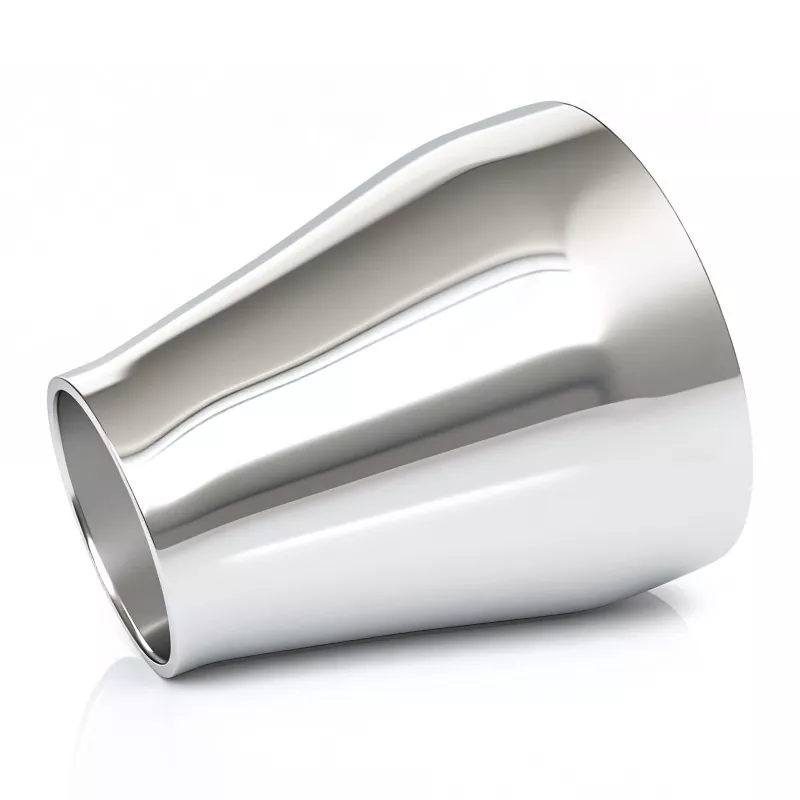

Available in concentric and eccentric configurations, these reducers can be selected according to installation requirements and process conditions. Manufactured from 304/316L stainless steel with precise dimensions and hygienic finishing, they are suitable for processing equipment, transfer pipelines, and liquid cooling systems that require reliable connections and consistent fluid movement.

Specifications

Product Advantages

In highly clean piping systems, a pipe sanitary reducer does much more than just connect two pipes of different sizes. It plays two critical roles to keep the production safe and smooth:

1). Making Sure the System Drains Completely

This is one of the strictest rules in food and medicine production. When production ends or when the pipes are being washed and sanitized, absolutely no liquid can be left behind. Any leftover liquid can grow bacteria and ruin the next batch of products.

How it works on flat pipes: For horizontal (flat) lines, we use an Eccentric Reducer (a reducer with one flat side). It keeps the bottom of the pipes at the exact same level. This allows every single drop of product or cleaning water to flow out naturally by gravity, leaving the inside completely dry.

2). Keeping the Flow Smooth and Protecting the Product

Different liquids—like milk, liquid medicine, or thick sauces—are sensitive. Some can be easily damaged if pushed too hard.

Controlling Speed and Pressure: Changing the pipe size helps manage how fast and at what pressure the liquid travels through the line.

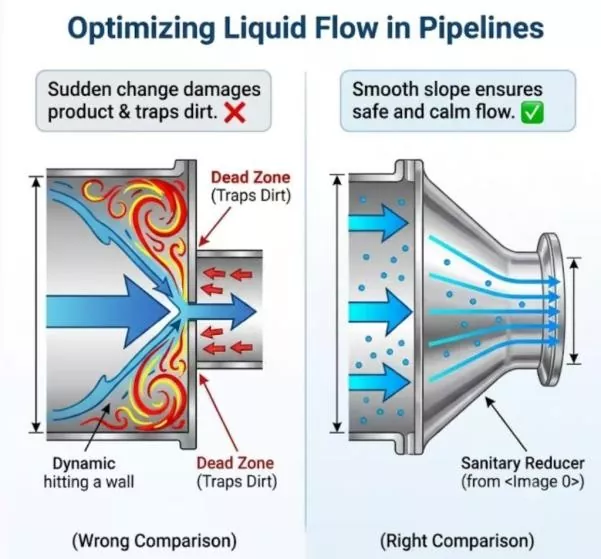

Stopping Traps and Swirls: If you connect a big pipe to a small pipe with a sharp, sudden wall, the liquid will swirl violently (creating turbulence) and get trapped in corners. A reducer provides a gentle, smooth slope. This keeps the liquid flowing calmly, prevents ingredients from getting damaged, and stops food particles from building up in dead corners.

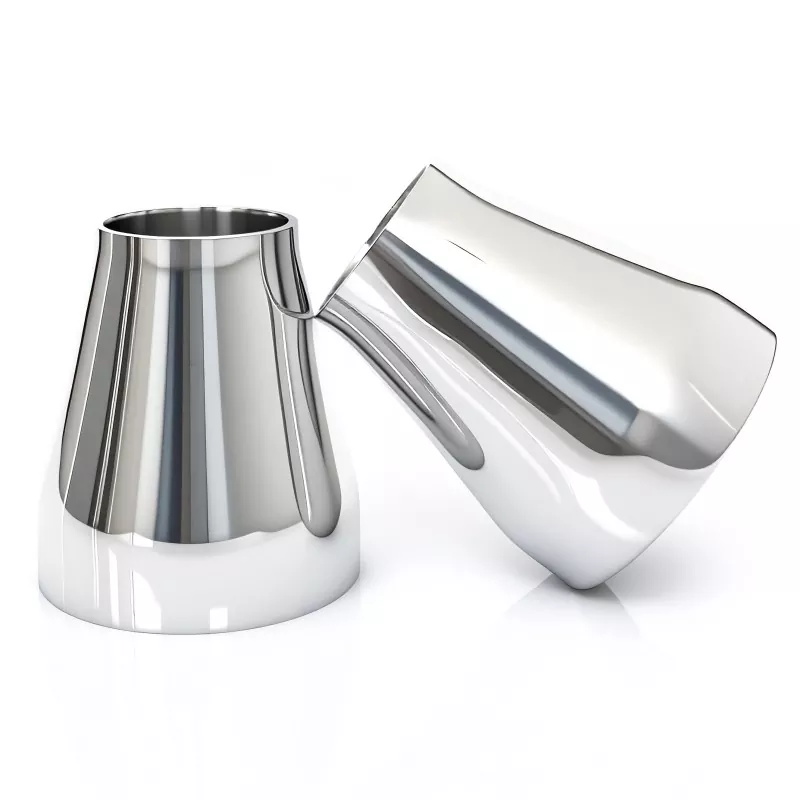

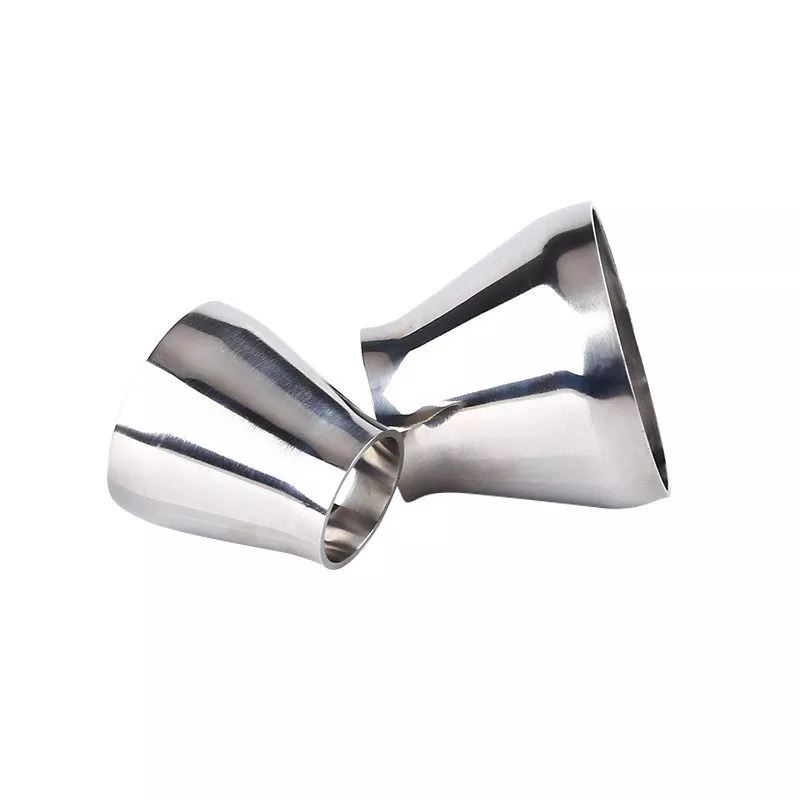

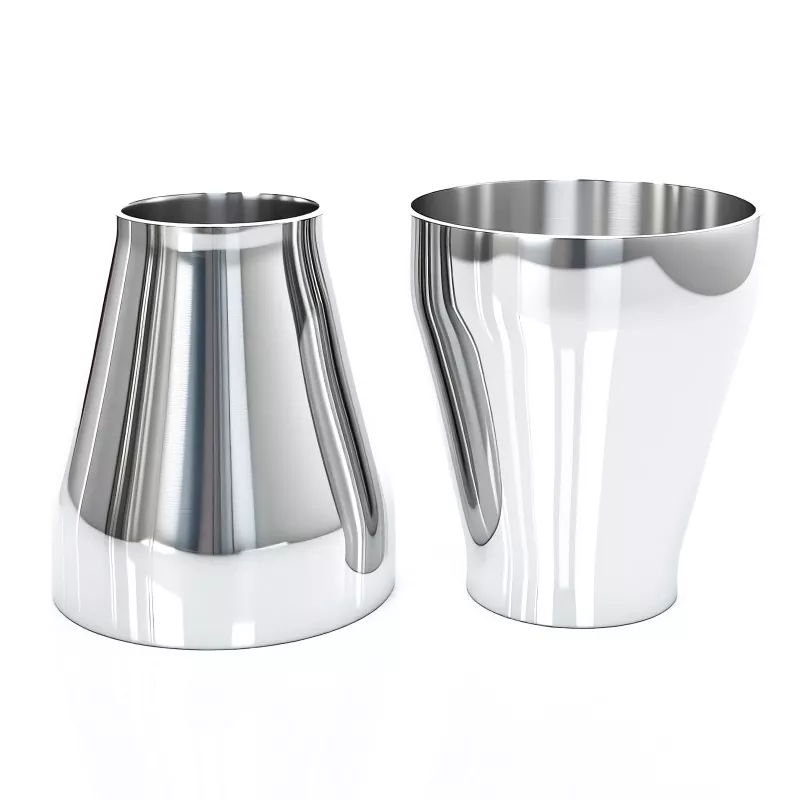

Concentric reducer VS  Eccentric Reducer

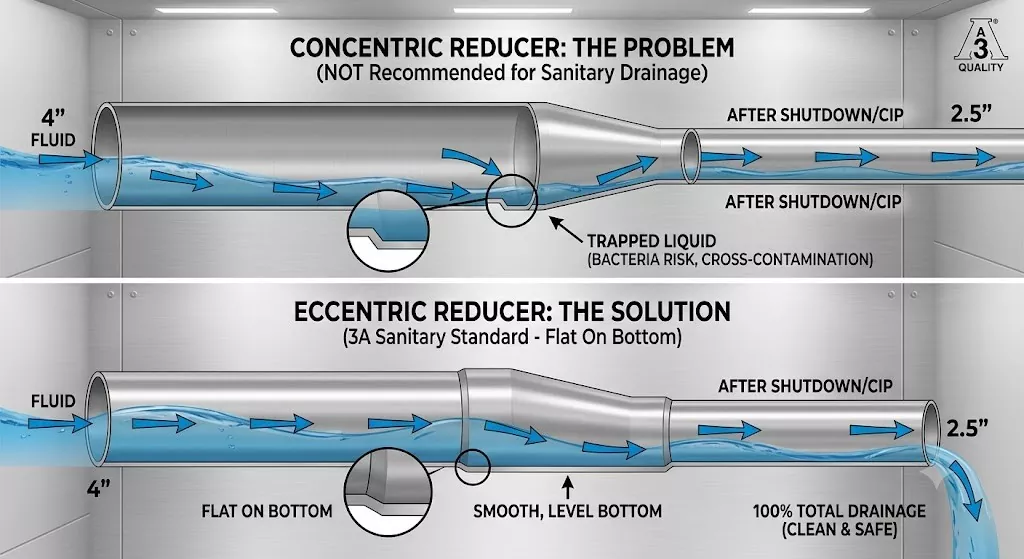

When installing horizontal pipes, 3A sanitary standards strongly recommend using an Eccentric Reducer (a pipe adapter where one side is completely flat). This comes down to a fundamental rule in clean piping systems: everything must drain out completely by itself.

The Problem with Standard (Concentric) Reducers: If you use a standard, cone-shaped sanitary reducer in a horizontal line, it creates a "step" or a lip at the bottom of the pipe. When you turn off the machine or run a cleaning cycle (CIP), liquid gets trapped behind this step, creating a small puddle. This leftover liquid can easily breed bacteria and ruin your next batch of products.

The Magic of Eccentric Reducers: An eccentric reducer is designed with one perfectly flat side (which we always install facing down). This keeps the bottom of your pipeline completely level. When it's time to empty the system, every single drop of liquid flows out smoothly with zero resistance. It perfectly matches the strict 3A rule: no trapped liquids, 100% total drainage.

Why Choose DINGYUE

Choosing the right sanitary component supplier is not only about product availability, but also about long-term reliability, consistent quality, and technical support. DINGYUE focuses on providing hygienic fluid control components that meet the strict requirements of industries where performance and cleanliness cannot be compromised.

Reliable Supply for Global Projects

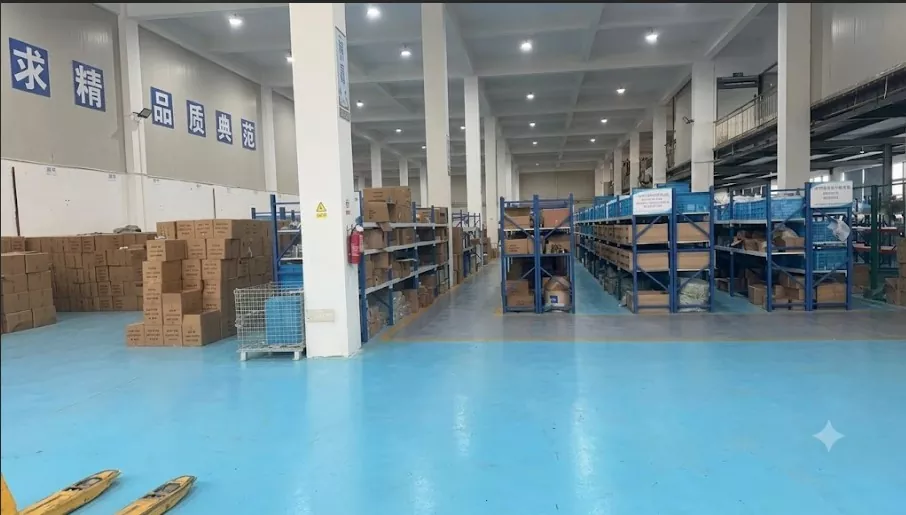

With an organized production and storage system, DINGYUE supports stable supply for customers across different regions. Our finished products are properly managed before shipment to ensure order accuracy, packaging protection, and efficient delivery for ongoing projects in food processing, pharmaceutical systems, semiconductor applications, and liquid cooling infrastructure.

Strict Control of Material and Surface Quality

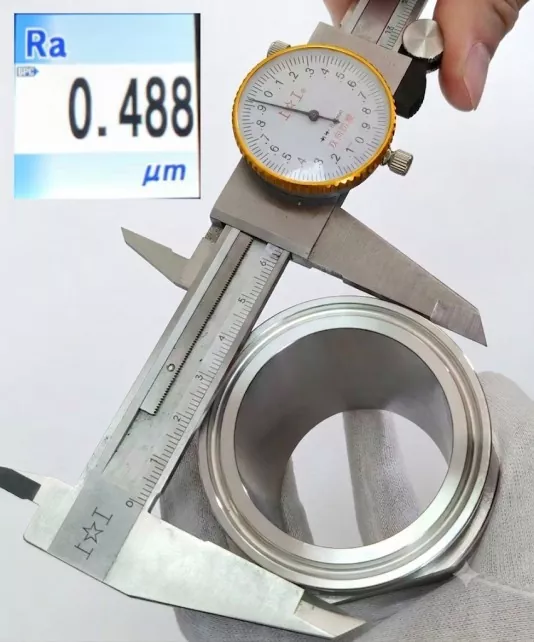

For sanitary fittings and fluid control components, surface quality directly affects cleaning efficiency and system performance. DINGYUE performs detailed inspections throughout manufacturing, including dimensional checks and surface roughness testing. Internal surface finishes are carefully controlled to achieve consistent hygiene performance and reduce the risk of residue accumulation in processing systems.

Solutions Trusted Across Multiple Industries

DINGYUE products are designed for demanding applications including pharmaceutical production, beverage processing, dairy systems, and advanced liquid cooling projects. By combining precision machining, sanitary design, and manufacturing experience, DINGYUE helps engineering companies, equipment manufacturers, and industrial users build reliable fluid systems.
