28WB Sanitary Butt Weld True Wyes

Pipeline branching design can directly affect flow consistency, pressure stability, and overall system efficiency. Unlike standard branch fittings with sharper flow changes, our 28WB Sanitary Butt Weld True Wyes create a more gradual transition between three pipeline sections, helping fluids move through the system with less disturbance.

Manufactured according to sanitary engineering requirements and ASME BPE standards, this fitting is produced from high-quality stainless steel with precise dimensions for reliable butt welding installation. The permanent welded connection helps create a clean, secure pipeline structure, making it suitable for applications such as pharmaceutical process lines, biotech equipment, food production systems, and advanced liquid cooling networks.

Specifications & Details

Why This Design is Crucial in CDUs

This "Y-shaped tee"configuration is designed primarily for optimized flow distribution and system balancing.

1）Optimized Flow Dynamics: In a complex cooling system like a CDU, getting an equal volume of liquid to each component is critical. If you have multiple cooling loops, a linear manifold creates an uneven distribution.

2）Uniform Flow: A symmetric Y-junction ensures that the incoming flow is perfectly split and distributed. This provides equal, uniform flow rate and constant fluid pressure to all secondary lines, which is vital for the balanced operation of high-performance electronics.

Low Turbulence: The smooth, angled branches reduce the turbulence and energy loss that can occur with harsh, 90-degree junctions, improving pump efficiency and reducing system noise.

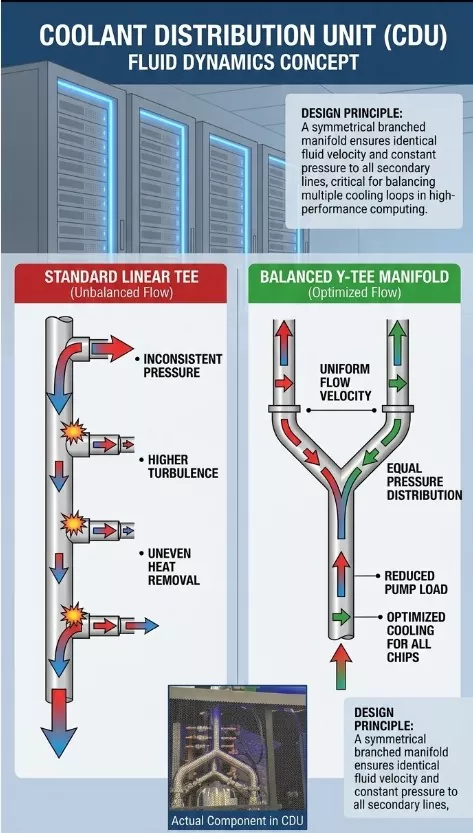

Visual Comparison: Flow Distribution Manifolds

Left: Shows a standard linear manifold where the flow gets progressively weaker, leading to uneven cooling.

Right: Shows the optimized Y-tee manifold which creates perfectly symmetric, uniform flow to all outputs.

Lateral Tee vs. True Y-Tee

Many people confuse these two because they both look like a "Y". However, they route your liquids very differently. Here is how to choose the right one for your piping layout.

Quick Comparison  Lateral Tee VS True Y-Tee

1. Lateral Tee — "The Highway Exit"

How it works: Think of this as a highway with an exit ramp. The main traffic continues straight without interruption, while a small portion of traffic exits at a gentle angle.

Why use it: If you have a main line running through your facility and you just need to tap into it to feed a smaller tank or station on the side, this is your go-to. It offers a much smoother flow than a standard $90^\circ$ T-Tee.

Best for: Adding bypass lines or sampling lines along a main pipe.

2. True Y-Tee — "The Fork in the Road"

How it works: Think of a fork in the road where the main road ends, and you must choose left or right. It splits the flow perfectly down the middle into two symmetrical paths.

Why use it: If you need to feed two identical tanks or yeast brinks at the exact same rate, you need a True Y-Tee. Because it is perfectly symmetrical, it ensures balanced pressure and equal flow rate to both branches.

Best for: Equal splitting, symmetrical filling lines, or merging two separate lines into one main drain.

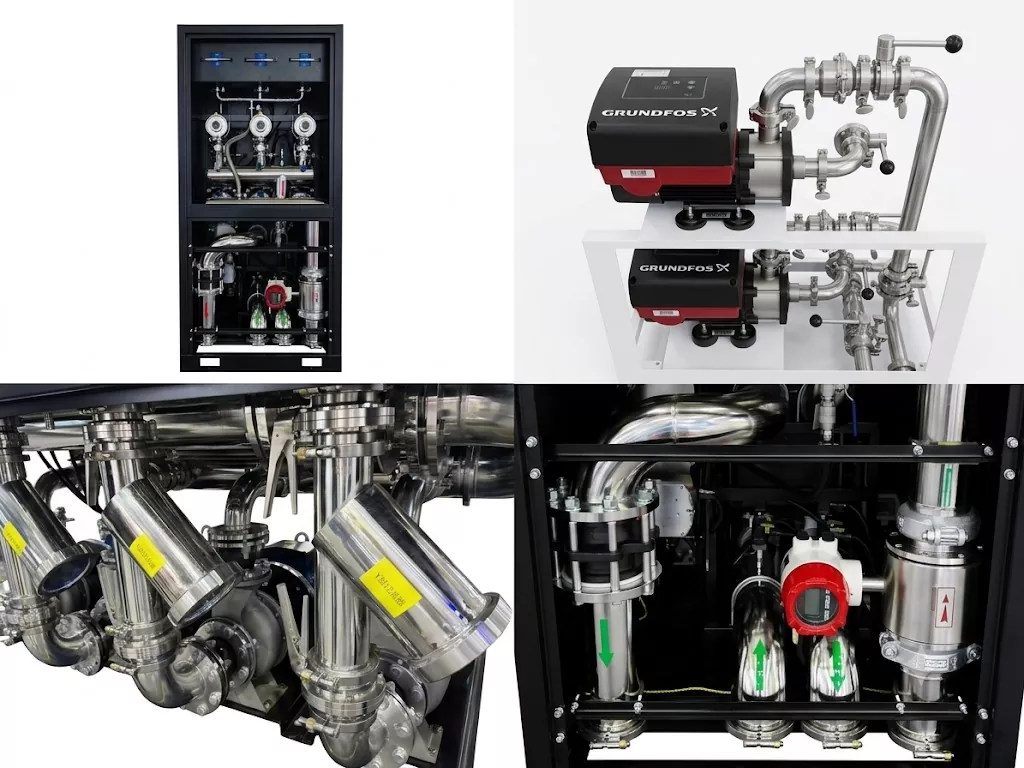

Widely used in CDU

Our premium sanitary valves and pipe fittings are built for high-performance Cooling Distribution Units. They help keep fluid running smoothly and safely through critical cooling loops. Made from top-grade stainless steel, they prevent leaks and protect sensitive electronics. Easy to install and built to last, our parts are the ideal choice for modern data center liquid cooling systems.
