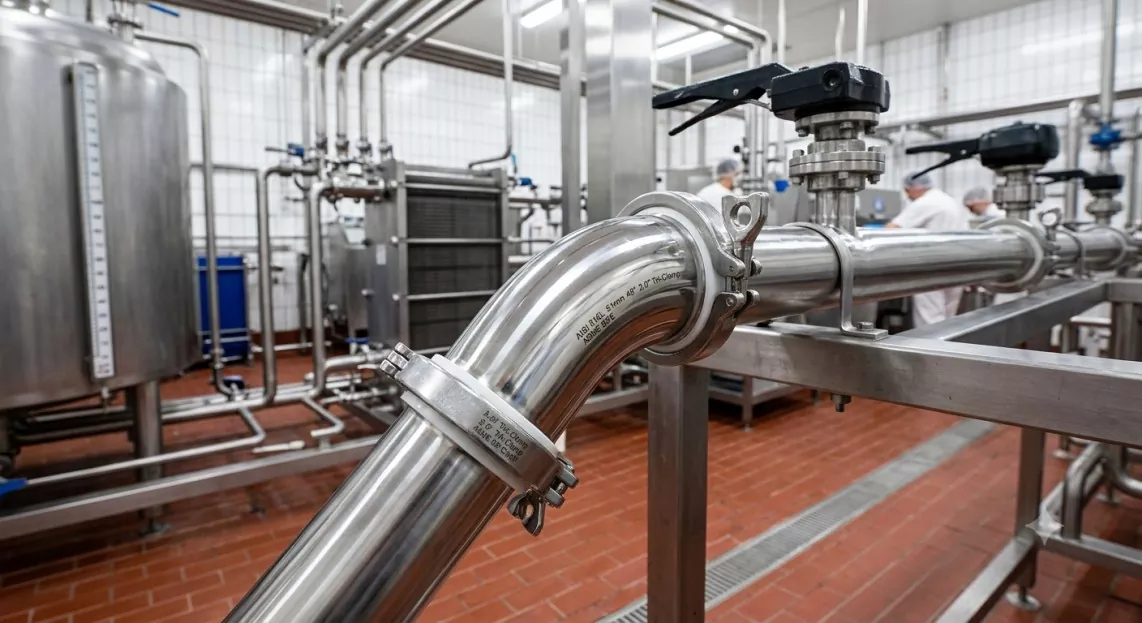

45° Tri-Clamp Elbow

In sanitary piping design, the angle of a pipe fitting directly affects space utilization, flow stability, and maintenance efficiency. The DINGYUE 45° Tri-Clamp Elbow provides a gentler transition compared with traditional 90-degree bends, making it suitable for systems where smoother routing and reduced pressure loss are important.

Why Choose a 45° Tri Clamp Elbow Instead of a Standard 90° Elbow?

1. Smoother Flow Direction Change for Sensitive Products

In many processing systems, sudden changes in flow direction can increase turbulence and create unnecessary pressure loss. This can affect products with sensitive characteristics, such as dairy products, beverages, and high-viscosity liquids.

A 45° configuration provides a more gradual transition path, allowing fluids to move through the pipeline with less disturbance. This makes it a practical choice for applications where maintaining product consistency and stable flow performance is important.

2. More Flexible Piping Layout in Limited Spaces

Equipment layouts in food, pharmaceutical, and industrial facilities often require compact piping arrangements around tanks, pumps, and processing units.

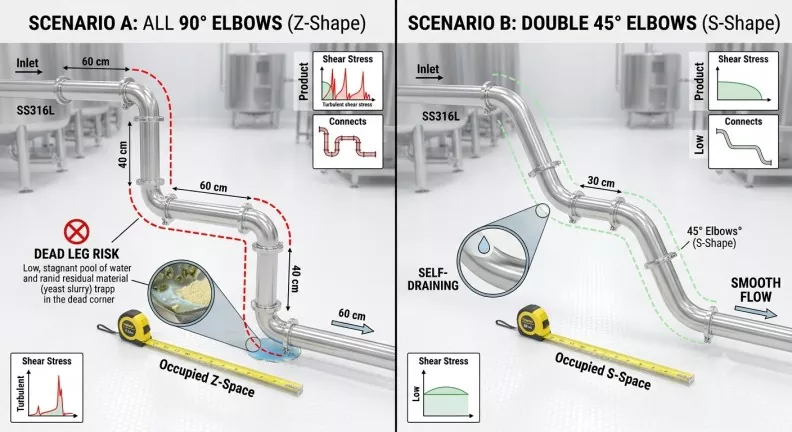

The 45° Tri Clamp Elbow provides greater flexibility when designing pipeline routes. By combining multiple 45-degree fittings, engineers can create smoother directional changes while reducing the need for large, space-consuming pipe arrangements.

3. Hygienic Design for Easier Cleaning and Maintenance

Sanitary piping systems require fittings that minimize residue accumulation and simplify cleaning procedures.

DINGYUE 45° Tri Clamp Elbows are manufactured with smooth internal surfaces and precise clamp-end dimensions to support reliable connections and effective CIP/SIP cleaning processes. The design helps maintain cleaner pipelines and reduces maintenance difficulties caused by poor fitting accuracy or surface irregularities.

Technical Specifications

Applications

Food & Beverage Processing

45° Tri Clamp Elbows are commonly installed in beverage, brewery, dairy, and food processing pipelines where smooth product transfer and easy cleaning are required.

Pharmaceutical & Biotechnology Systems

For pharmaceutical and biotech applications, hygienic pipeline components help maintain clean processing conditions and support strict sanitation procedures.

Liquid Cooling Systems

In advanced cooling systems such as data center liquid cooling loops, compact piping layouts and reliable connections are important. Stainless steel sanitary fittings provide stable performance for specialized fluid circulation systems.

Strict Control from Raw Material to Finished Product

For sanitary piping components, material authenticity and surface quality directly affect system reliability and hygiene performance. DINGYUE applies strict inspection procedures throughout the manufacturing process to ensure every 45° Tri Clamp Elbow meets the required material and dimensional standards.

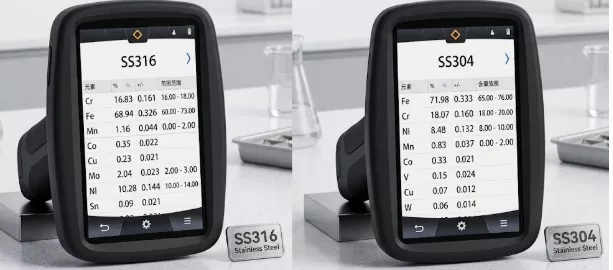

Before production, stainless steel materials are verified to confirm the correct grade of 304 or 316L. During manufacturing, each fitting is checked for dimensions, forming quality, and surface condition. Final inspections ensure that finished products meet customer requirements before packaging and shipment.

This traceable quality control process helps customers reduce risks caused by inconsistent materials, inaccurate dimensions, or unsuitable surface finishes in sanitary pipeline projects.

Manufactured for Reliable Sanitary Pipeline Integration

A sanitary fitting needs to match accurately with valves, pumps, tanks, and other processing equipment. DINGYUE 45° Tri Clamp Elbows are produced with controlled dimensions and standardized connection options to support smooth installation in different systems.

The tri clamp design allows faster assembly and maintenance compared with permanent connections, making it suitable for production environments where equipment cleaning, inspection, or replacement is frequently required.

Careful Handling for International Shipments

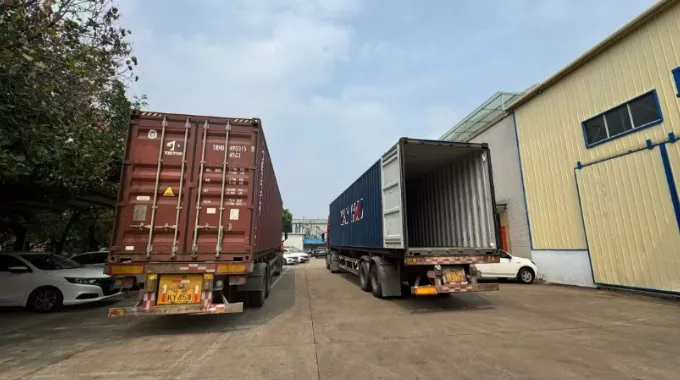

Proper packaging is an important part of maintaining sanitary component quality during transportation. After final inspection, DINGYUE 45° Tri Clamp Elbows are carefully packed to protect the polished surface and connection areas during international shipping.

Orders are prepared according to customer requirements, with attention to product quantity, packaging security, and shipment coordination. Through experienced export handling and global logistics cooperation, DINGYUE supports customers with stable delivery for both regular orders and project-based supply.

FAQ

1. What is a 45° Tri Clamp Elbow used for?

It is used to change the direction of sanitary pipelines while providing a smoother transition compared with sharper-angle fittings. It is commonly installed in food, beverage, pharmaceutical, dairy, and high-purity fluid systems.

2. What materials are available for our Tri Clamp Elbows?

DINGYUE provides 45° Tri Clamp Elbows manufactured from stainless steel 304 and 316L. 316L stainless steel is often selected for pharmaceutical and high-purity applications because of its enhanced corrosion resistance and suitability for demanding environments.

3. What is the difference between a 45° elbow and a 90° sanitary elbow?

A 45° elbow provides a more gradual change in pipeline direction, which can help reduce turbulence and pressure loss. A 90° elbow is commonly used when a direct right-angle turn is required due to equipment layout limitations.

The suitable choice depends on pipeline design, available installation space, and process requirements.

4. Can DINGYUE customize Tri Clamp Elbows?

Yes. DINGYUE can customize sanitary elbows according to project requirements, including size, material grade, wall thickness, surface finish, and connection standards. OEM solutions are available for equipment manufacturers and engineering projects.

5. Which standards are supported for this sanitary elbow?

It can be produced according to common sanitary standards, including 3A, DIN, SMS, ISO, IDF, RJT, BS, and BPE requirements.

6. How does DINGYUE ensure product quality?

Each fitting undergoes material verification, dimensional inspection, surface quality checks, and final inspection before shipment. These processes help ensure consistent performance and compatibility with sanitary piping systems.
