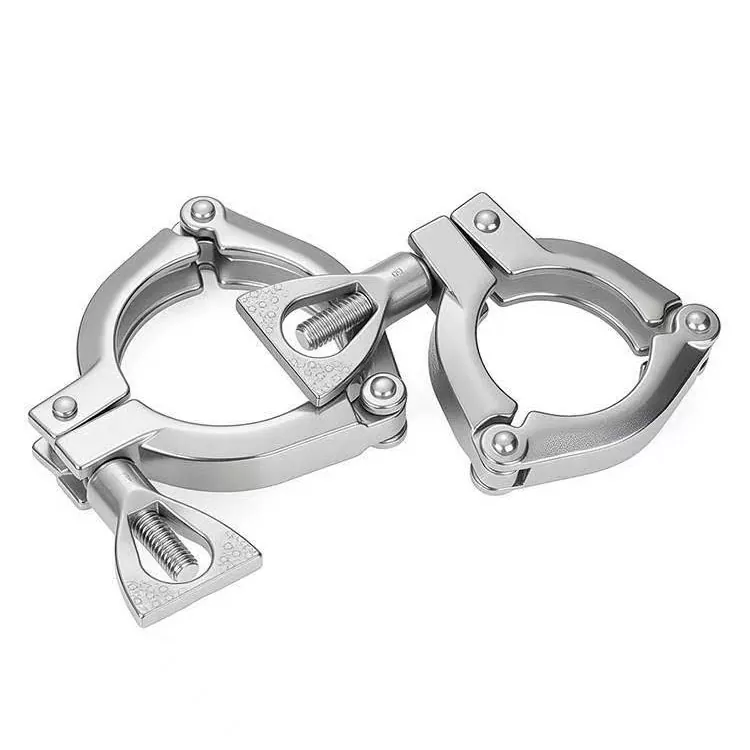

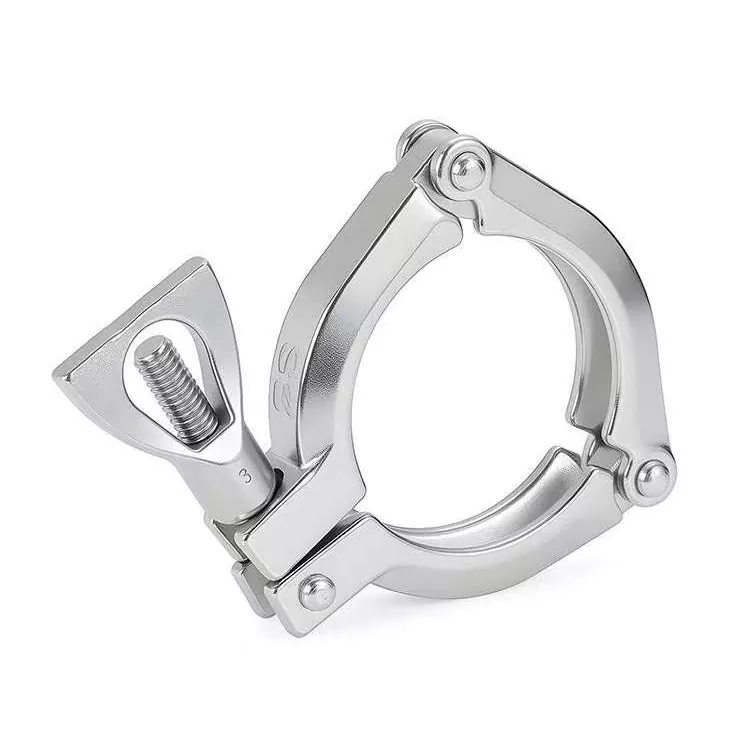

Thanks to its 3-piece hinged body, this clamp wraps smoothly around pipes to squeeze evenly from every angle. The Three Segment Clamps 13MHM 3P fits easily into tight, crowded spaces where regular clamps won't fit, while offering up to 20% higher pressure strength. Perfect for tight liquid cooling manifolds in data centers and complex beverage piping setups.
|
Specification Item |
Technical Value |
Notes & Details |
|
Material |
304 |
Dual-Hinge 3-Piece Construction |
|
Size Range |
1" to 4" (DN25 - DN100) |
Standard Tube O.D. sizes |
|
Clamping Force |
360° Uniform Circumferential Load |
Prevents localized gasket distortion |
|
Tightening Method |
Heavy-Duty Wing Nut |
Easy hand operation in tight spaces |
|
Target Torque |
25 in-lbs (approx. 2.8 N·m) |
Optimal seal protection |
|
Key Advantage |
Articulated wrap-around fit |
Low clearance radius for compact racks |

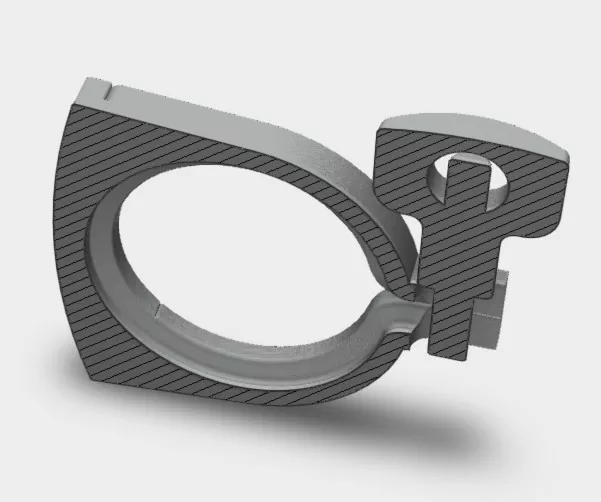

The three-segment design articulates seamlessly around the ferrule flanges, ensuring perfectly balanced gasket compression and superior leak protection.
Delivers up to 20% higher pressure ratings compared to standard 2-segment single-pin clamps (e.g., 550 PSI vs. 450 PSI at 2" O.D.).

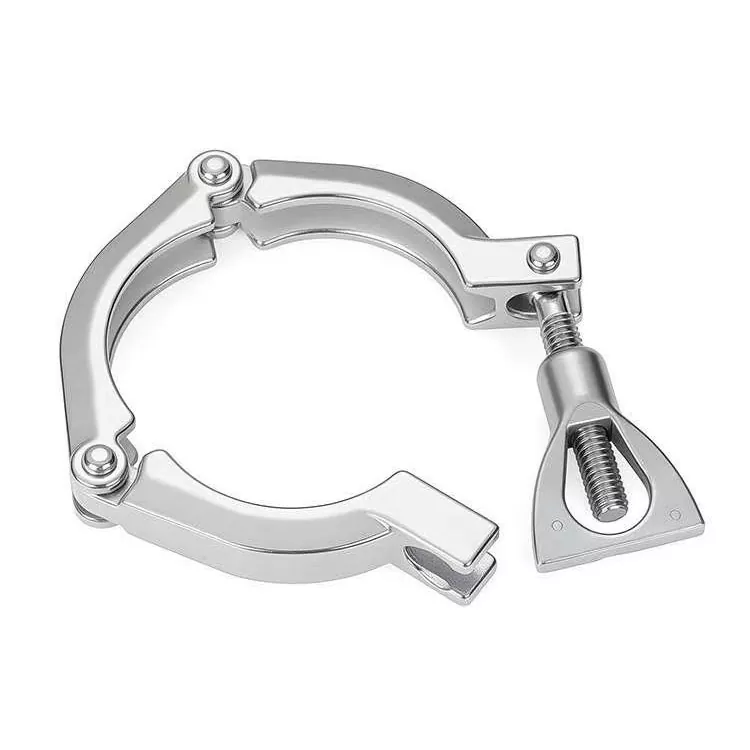

The dual-hinge flexibility allows smooth wrap-around installation in compact liquid cooling racks or high-density piping manifolds with minimal clearance.
Prevents gasket binding or edge scratching during rapid CIP/SIP maintenance cycles
|

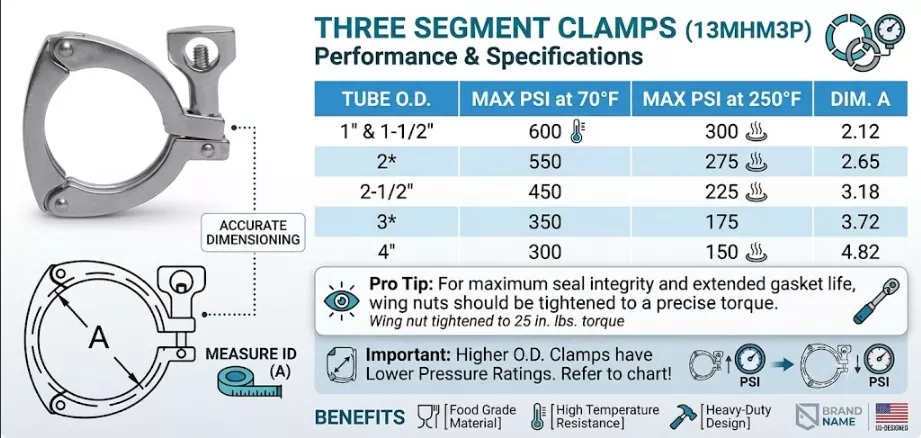

Tube O.D. |
2-Segment Single-Pin Clamp(13MHM) @ 70°F |
3-Segment Clamp(13MHM3P) @ 70°F |
Pressure Rating Increase |
|
1" & 1-1/2" |
500 PSI |
600 PSI |
+20% |
|
2" |
450 PSI |
550 PSI |
+22% |
|
2-1/2" |
400 PSI |
450 PSI |
+12.5% |
A: For standard sizes that we keep in stock, there is no strict MOQ—we accept sample orders for quality evaluation. For customized dimensions, special materials (like Titanium or Hastelloy), or non-standard configurations, the MOQ typically ranges from 10 to 50 pieces depending on the specifications. Contact us to discuss your project requirements!
A: We provide a complete documentation package to ensure smooth inspection and compliance for your supply chain. This includes EN 10204 3.1 Material Test Reports (MTRs), raw material heat numbers for full traceability, and FDA/USP Class VI compliance certificates for the matching gaskets. Standard pressure test certificates are also available upon request.
A: Yes, we are a direct manufacturer with an in-house R&D and engineering team. We offer full OEM and ODM services. Whether you need custom multi-segment bolted designs, specific pressure ratings, or laser-engraved brand logos/part numbers on the clamps, we can produce them precisely according to your blueprints or physical samples
A: In-Stock Items: Usually shipped within 3 to 7 business days after order confirmation.Standard Bulk Orders: Typically takes 15 to 25 days, depending on the order volume and factory scheduling.Custom/OEM Orders: Generally requires 30 to 45 days.We always provide a guaranteed shipping schedule when quoting.
