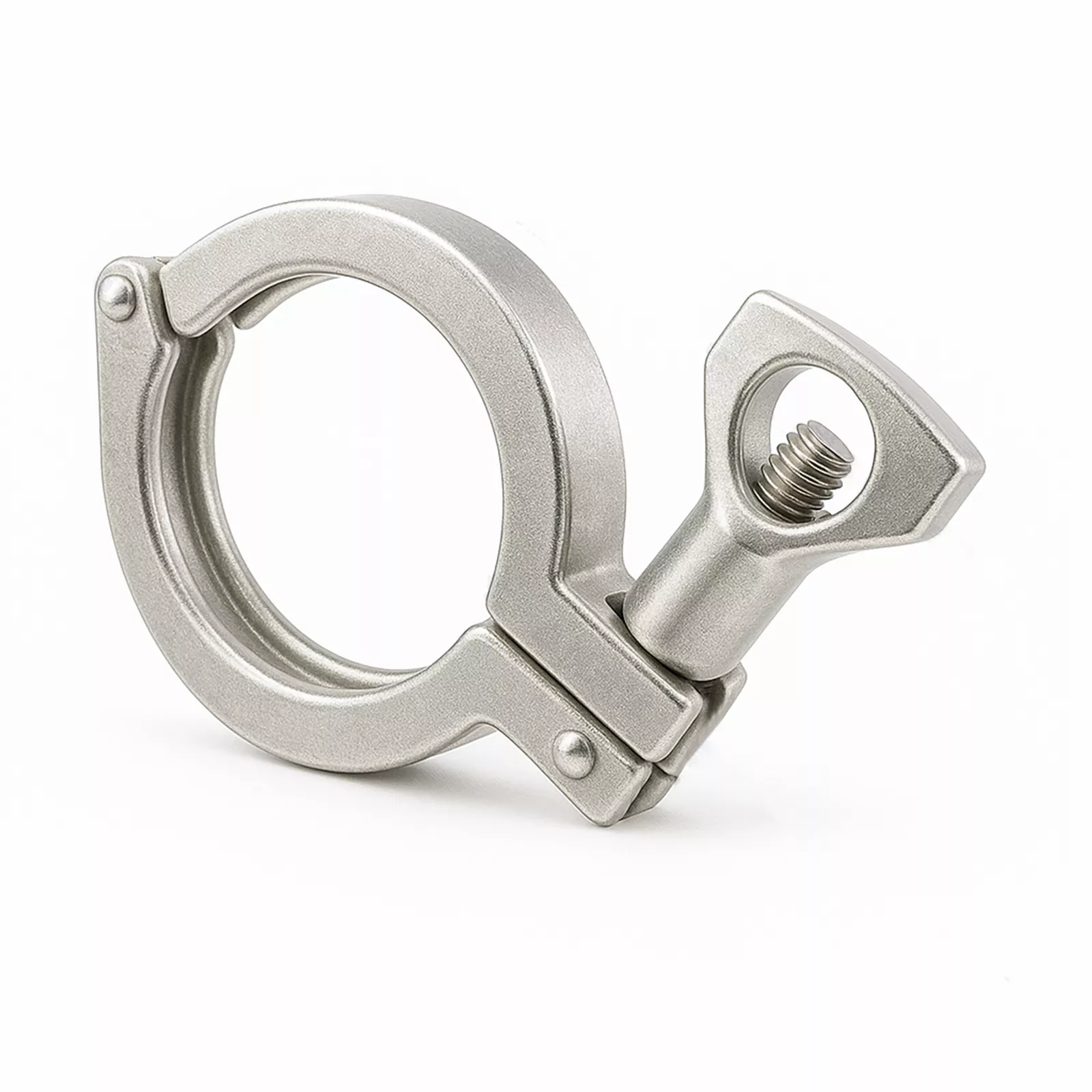

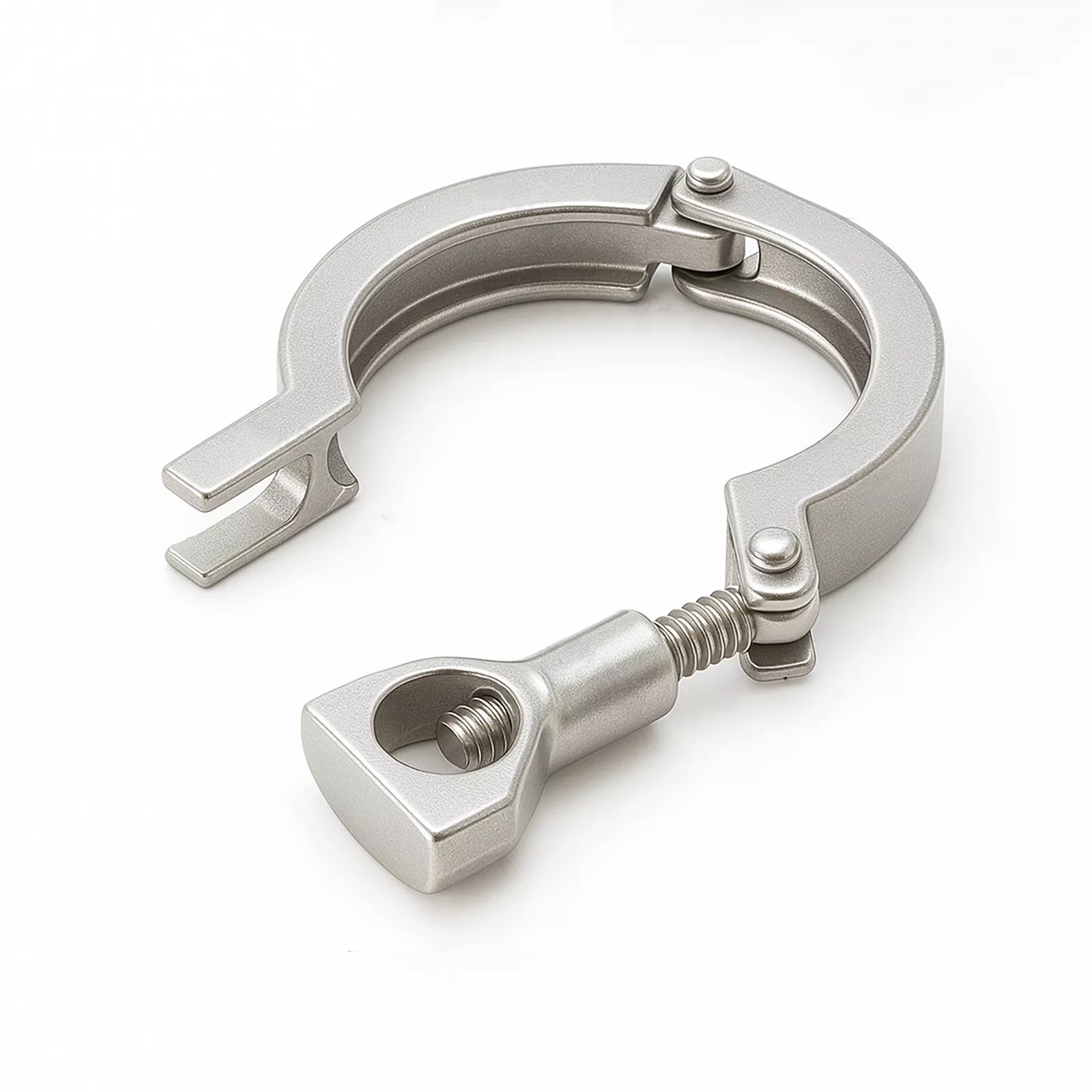

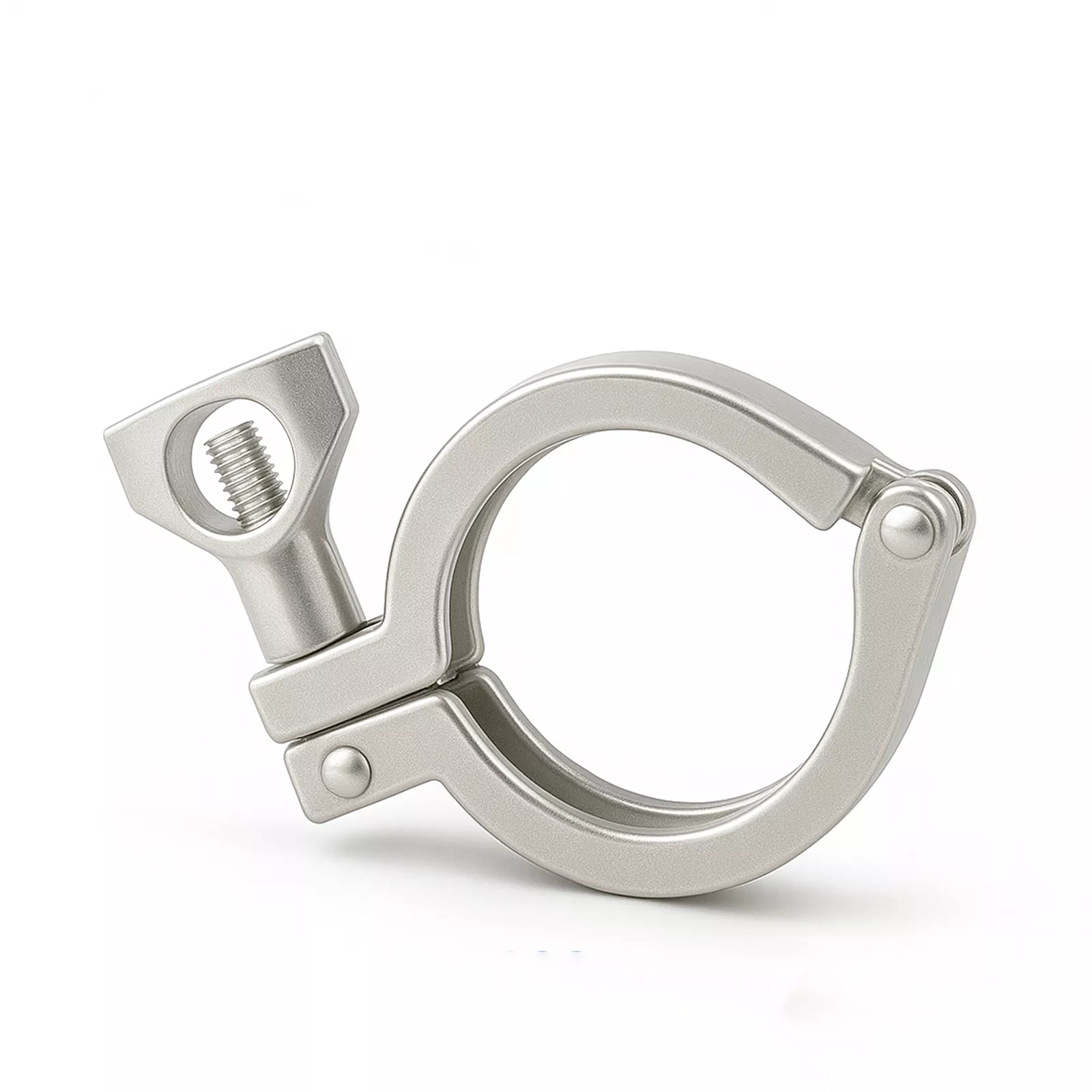

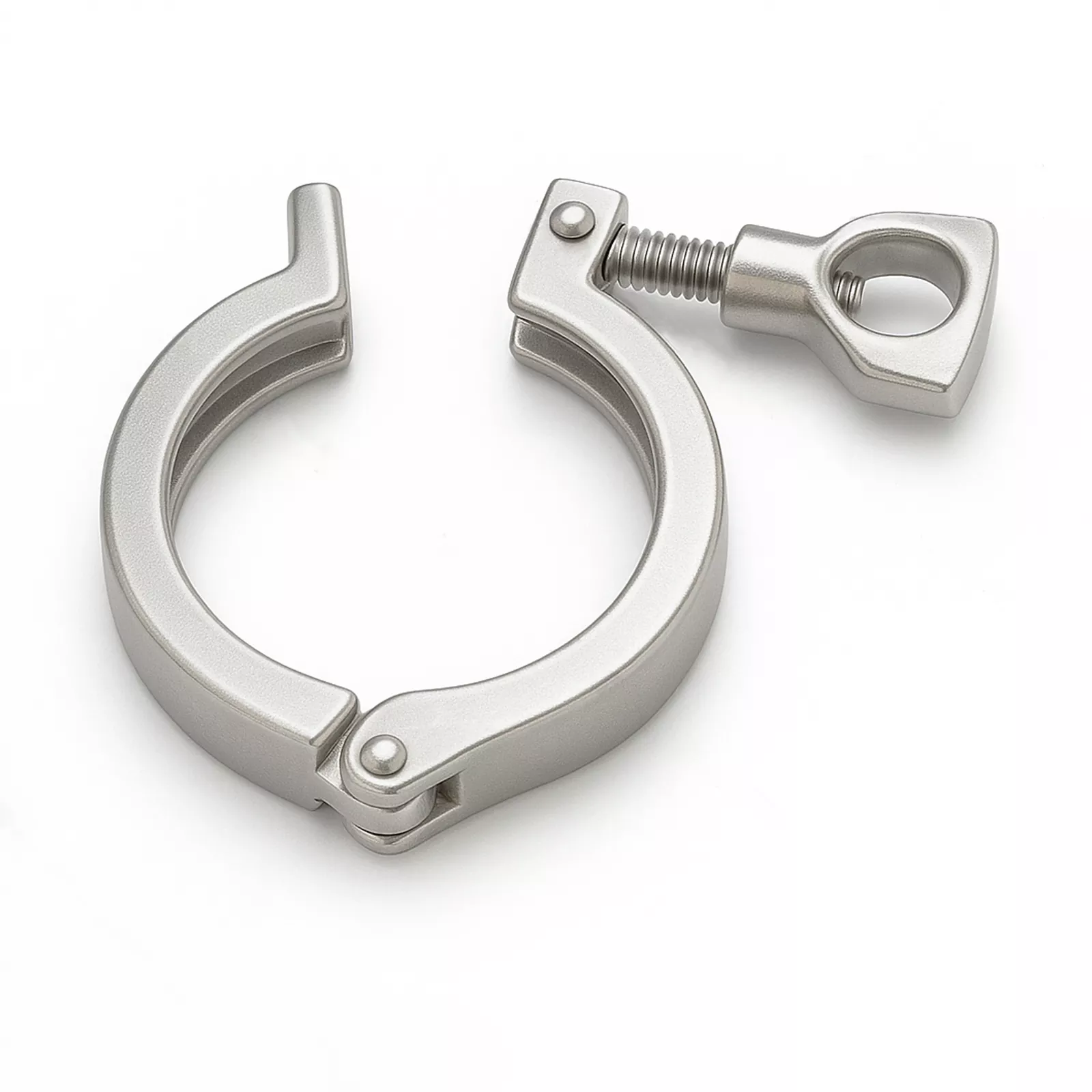

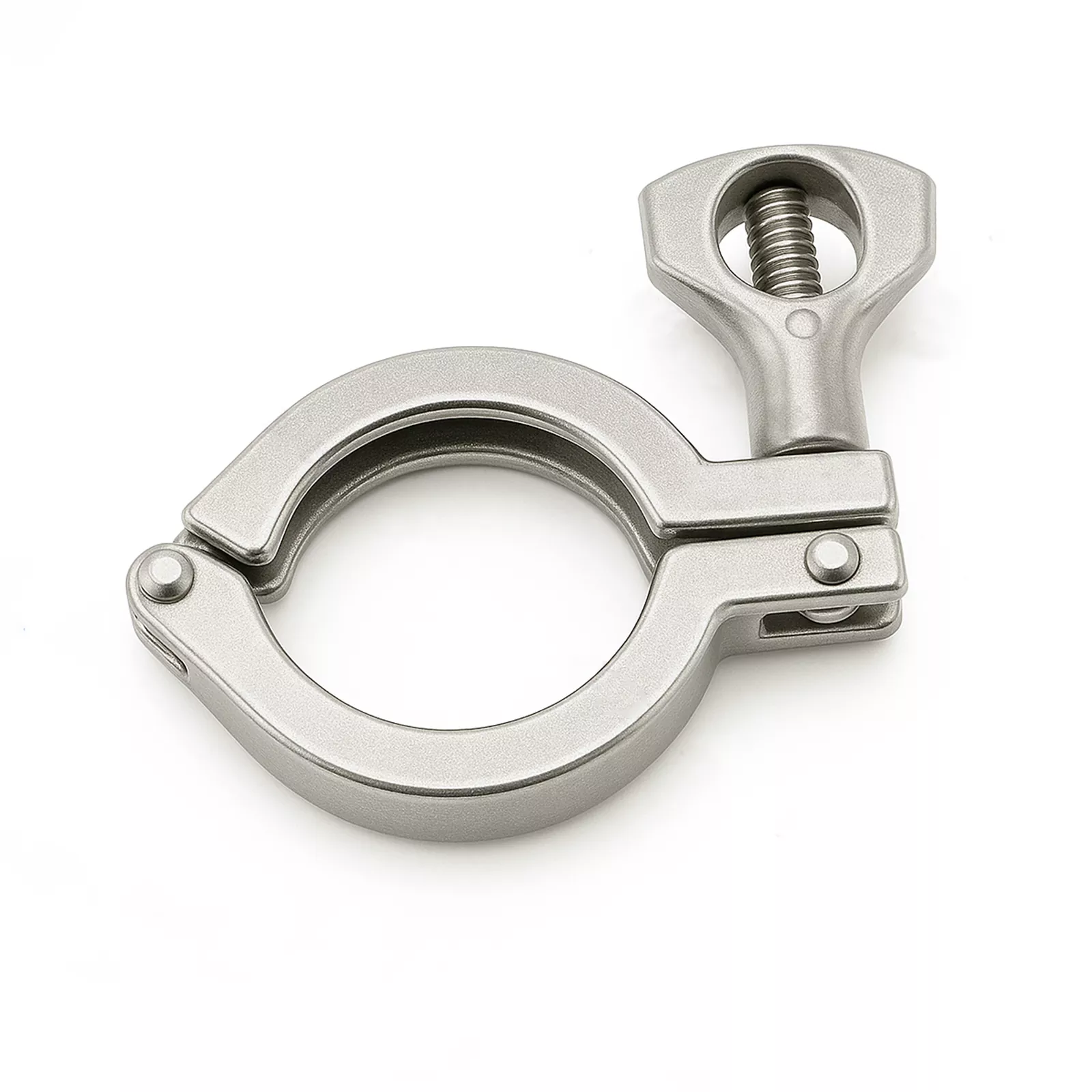

Designed for quick setup without any tools. The Sanitary Tri-Clamp 13MHM lets you tighten or loosen the clamp by hand in seconds. Made from high-grade stainless steel, it is perfect for daily cleaning in food and beverage lines. It is also a great choice for quick-connect liquid cooling pipes inside AI server racks, where space and speed matter most.
|
Specification Item |
Technical Value |
Notes & Details |
|
Material |
304 |
Forged / Cast options available |
|
Size Range |
1/2" to 12" (DN15 - DN300) |
Standard Tube O.D. sizes |
|
Operating Temp |
-40°F to 300°F (-40°C to 149°C) |
Dependent on selected gasket material |
|
Tightening Method |
Hand-tightened Cross-Hole Wing Nut |
No tools required |
|
Target Torque |
25 in-lbs (approx. 2.8 N·m) |
Hand-tight firm seal |
|
Compliant Standards |
3-A Sanitary Standards, FDA 21 CFR |
Food Grade & Hygienic certified |

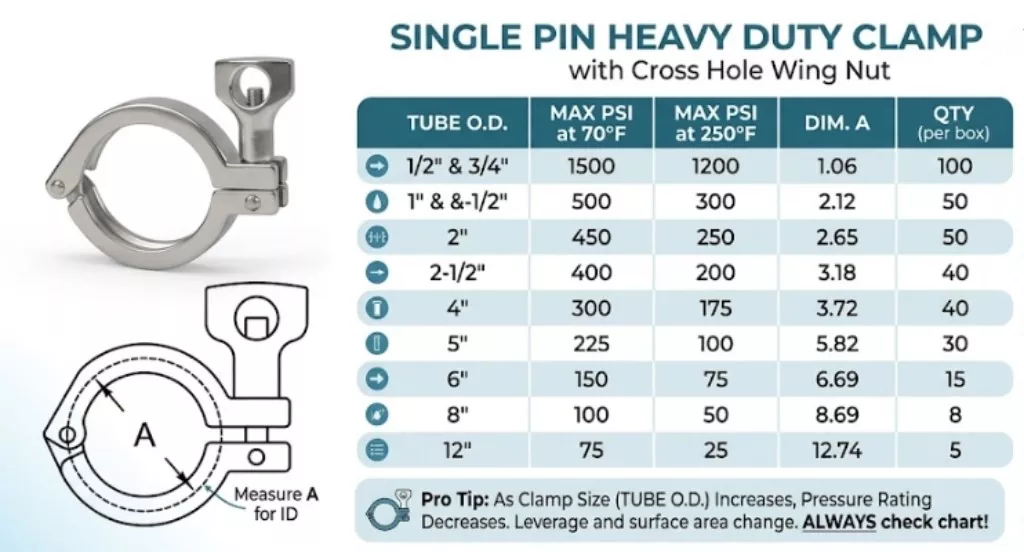

It all comes down to two simple factors:
surface area and leverage.
As the tube diameter increases, internal pressure acts against a much larger surface area inside the clamp, generating significantly more total outward force.
A larger clamp creates a longer distance between the hinge and the tightening nut. This added length creates a leverage effect that exerts greater stress on the pin, bolt, and closure mechanism.
Even with heavy-duty construction, a larger clamp requires more structural strength to hold the same PSI as a smaller one. Always check our rating table to ensure you select the correct clamp for your operating pressure and temperature.

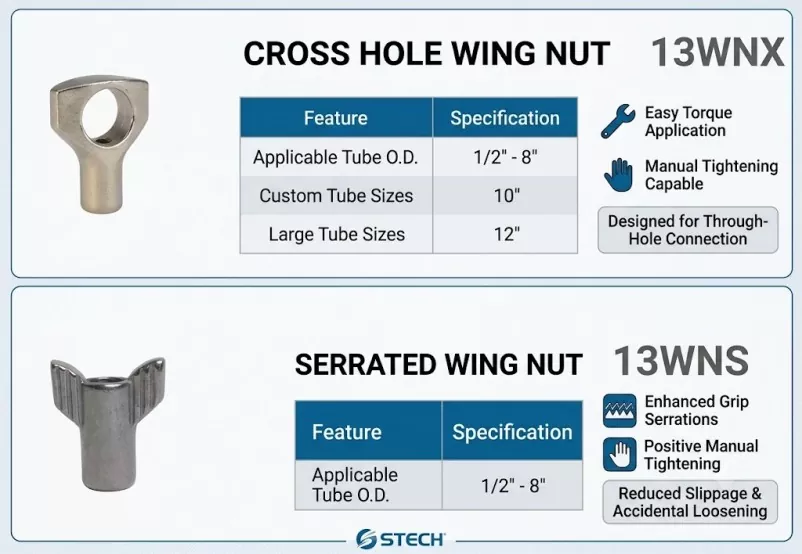

Both wing nuts are designed for quick manual tightening, but they excel in different operating environments:
Feature: Includes a precision cross-hole through the head.
Best For: High-pressure lines, tight spaces, or high-temperature applications where manual tightening isn't enough.
Why Choose It: Allows operators to insert a screwdriver, rod, or leverage tool through the hole to apply extra torque without damaging the wings. It also accommodates safety wire tagging in critical processing lines.
Feature: Ergonomic wing design with raised vertical serrations .
Best For: Environments subject to machine vibration, damp conditions, or frequent hand-tightening by operators wearing gloves.
Why Choose It: The serrations provide superior finger grip and help prevent accidental loosening caused by pipe vibration.

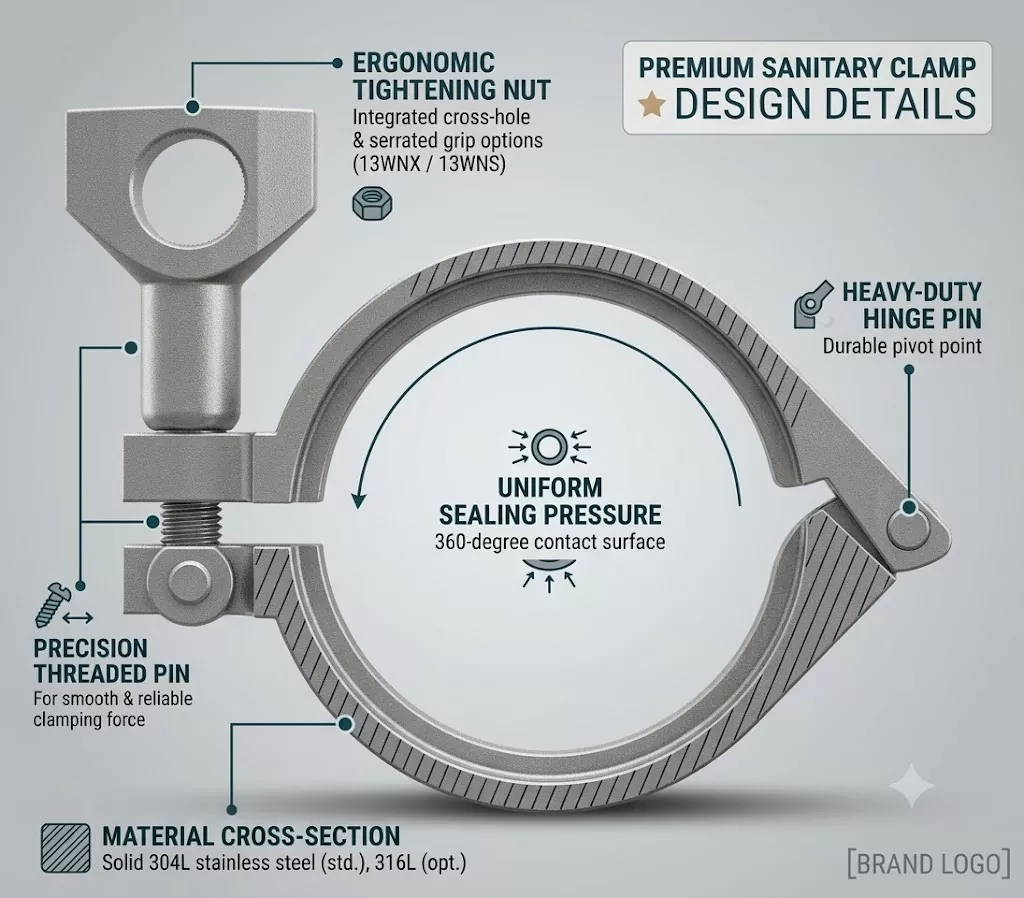

Features an ergonomic wing nut mechanism for tool-free, rapid installation and disassembly. Dramatically reduces line setup time and maintenance downtime during cleaning cycles.
Engineered with precise 360-degree uniform radial compression, ensuring an airtight, leak-proof seal across high-pressure and high-vibration sanitary fluid lines.
Our sanitary tri clamp 13MHM is manufactured from high-grade 304 or 316L stainless steel, offering exceptional corrosion resistance, high tensile strength, and long service life in harsh operating environments.
Available with specialized wing nut designs to meet diverse operational needs.
As AI workloads drive high-density power requirements, liquid cooling systems—including Cooling Distribution Units (CDUs) and rack-level manifolds—demand ultimate fluid containment reliability. The Single Pin sanitary tri clamp 13MHM has become a top choice for liquid cooling infrastructure worldwide.

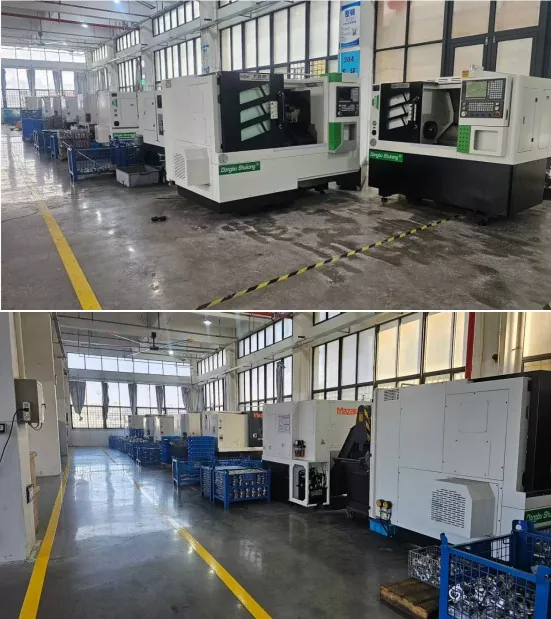

This is where the magic happens! Our bright, clean, and modern facility is designed for maximum efficiency. By letting advanced computer machines handle the heavy cutting, we keep our prices fair and our quality sky-high. See for yourself why so many businesses trust our factory to make their hardware.
Don't wait until your shelves are empty—place your order now to secure your spot in our upcoming shipping schedule. We offer great rates, superb quality, and fast turnaround times. Send us an inquiry right now to get started!
