Our premium series of Sanitary Pipe Holder for Hygienic Piping Systems is engineered exclusively for the pharmaceutical, biotechnology, life sciences, and high-purity food & dairy industries. Manufactured from premium-grade Stainless Steel 304. these heavy-duty supports provide unparalleled mechanical stability and zero-rust reliability for sterile fluid transfer and process piping networks.
|
Parameter |
Standard Specification |
|
Product Type |
Sanitary Pipe Holders / Tubes Hangers / Wall-Mount Brackets / Floor Stands |
|
Size Range |
1/2" to $8" (DN15 to DN200) standard; larger sizes available upon request |
|
Material (Body) |
Stainless Steel 304 (1.4301) / Stainless Steel 316L (1.4404) |
|
Material (Hardware) |
Stainless Steel 304 / 316 bolts and locking nuts |
|
Hygienic Compliance |
ASME BPE, 3A Sanitary Standards, DIN 11850, ISO 2037 |
|
Cushion/Liner Material |
FDA-Approved Silicone, EPDM, Viton (FKM), or PTFE |
|
Liner Color |
Hygienic Blue, Translucent White, or Black |

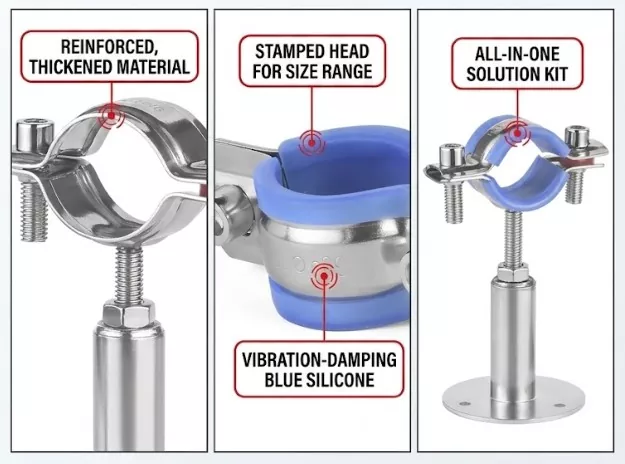

Authentic 304 Stainless Steel:Built with premium 304 stainless steel and clearly stamped on the clamp head for guaranteed quality. It offers maximum resistance to rust, corrosion, and high humidity.
Thicker Material for Heavy Loads:Uses an upgraded, extra-thick steel band that resists bending or deformation under high pressure and heavy pipe loads.

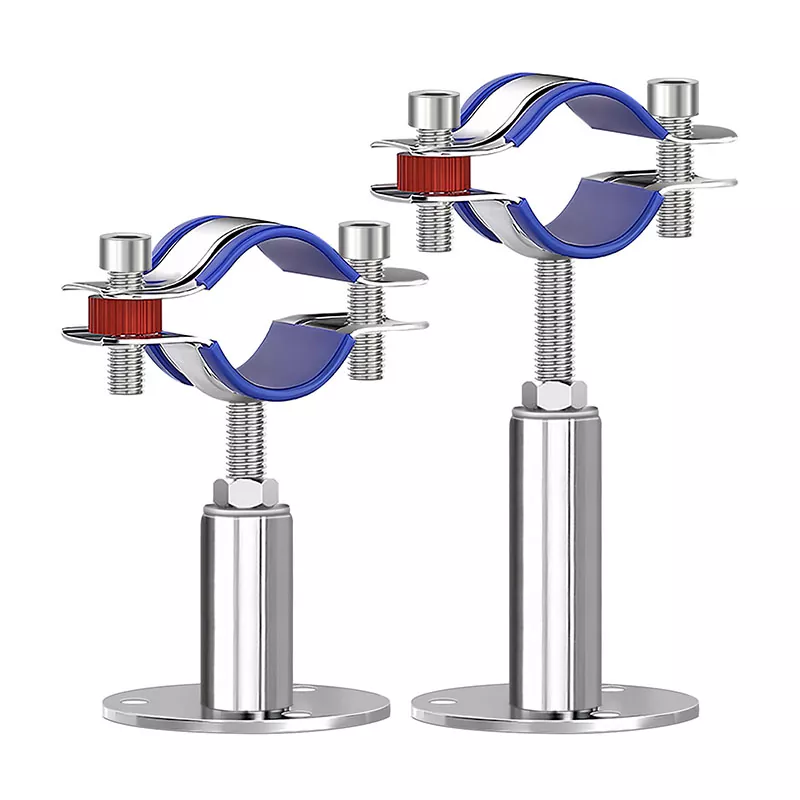

Blue Silicone Protection:Features a flexible blue silicone cushion that absorbs pipeline vibrations, dampens system noise, and protects copper or steel pipes from surface scratches.
All-in-One Complete Kit :Includes the clamp head, silicone liner, threaded support rod, and mounting base. Everything you need is in one box for fast and effortless setup.
Flexible Height & Angle Adjustment :The central threaded stem allows smooth height fine-tuning to perfectly match your pipeline layout.
Fix the Base: Anchor the round floor/wall base to your surface using heavy-duty screws or expansion bolts.
Adjust the Stem: Thread the center rod into the base and spin to your target height.
Place the Pipe: Insert the blue silicone ring onto your pipe and clamp the two halves around it.
Tighten Bolts: Secure the side bolts with a standard wrench until snug. Do not over-tighten.
A: Absolutely. Both the 304 stainless steel hardware and the silicone inserts are built for sanitary environments. They can easily handle standard CIP/SIP cleaning temperatures up to 130°C (266°F) without losing their grip or shape.
A: Very easy! These feature a quick-release hinged design. You just need to unscrew the side bolt (many models use a thumb screw or easy-flip bolt), swing the front half open, and you can access your piping in seconds without taking the whole bracket off the wall.
A: Yes! Our sizes are based on the standard Outside Diameter (OD) of sanitary tubes. A 2" pipe holdersis precisely sized to clamp a 2" sanitary pipe perfectly with the cushion installed. If you are unsure about your pipe standard (DIN, SMS, or Inch), just send us a quick message!

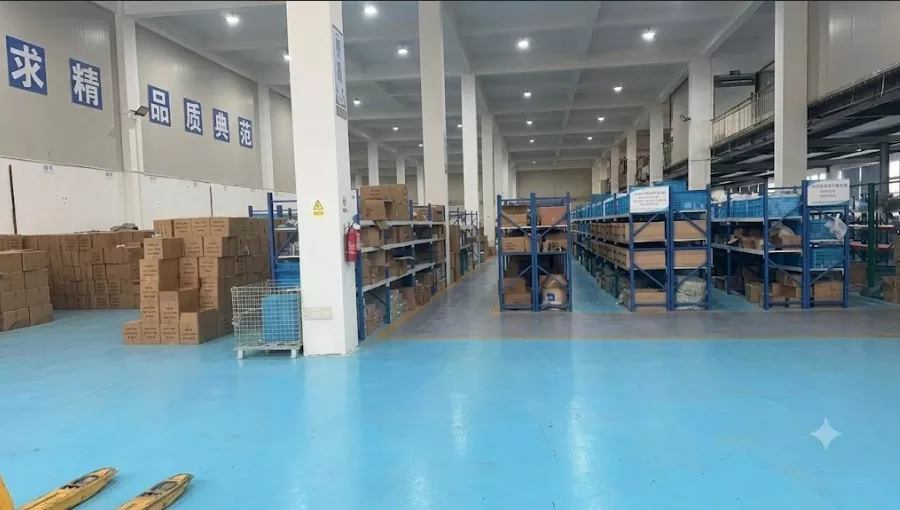

Our warehouse isn't just large; it's a strategically designed powerhouse. We keep high volumes of inventory perfectly organized so that our picking crews can locate and pack your orders with zero friction. This unique combination of massive scale and streamlined organization is the secret behind our famous fast shipping times. No matter your order size, we are ready to ship it instantly.
