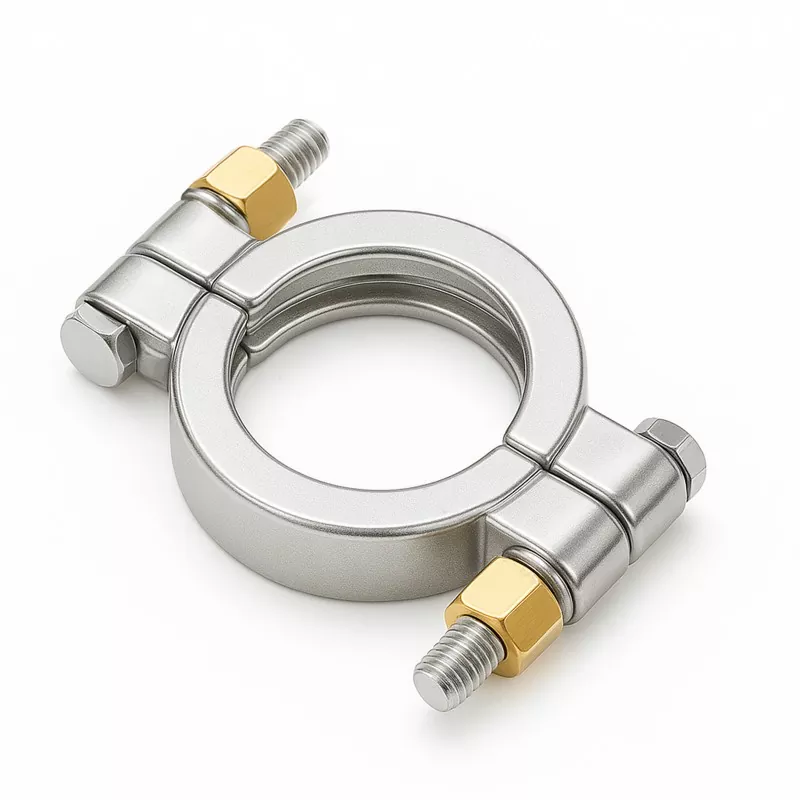

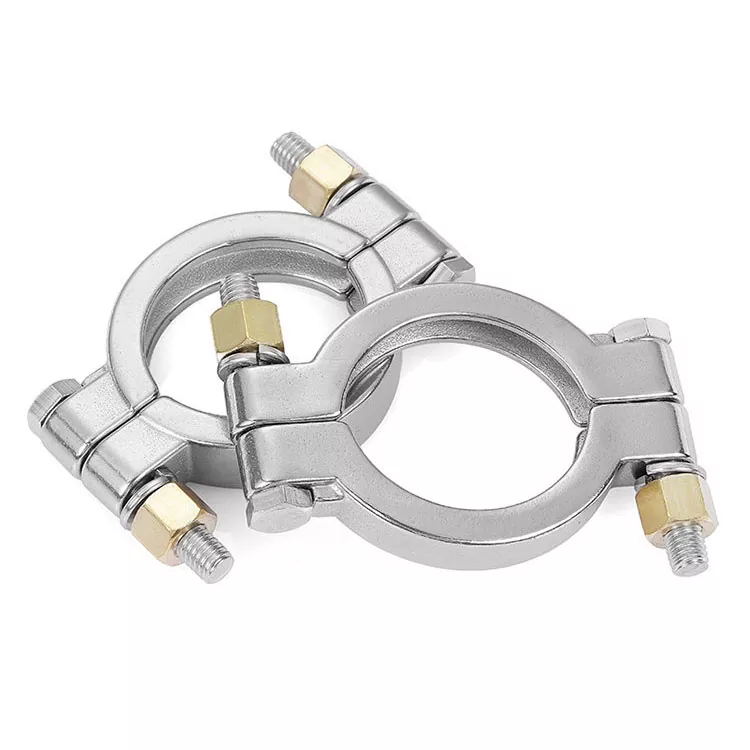

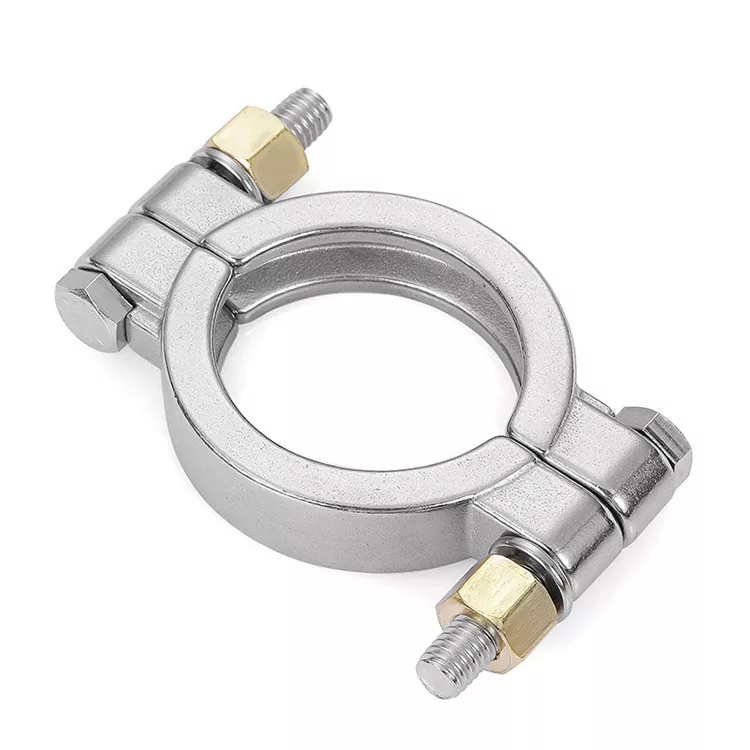

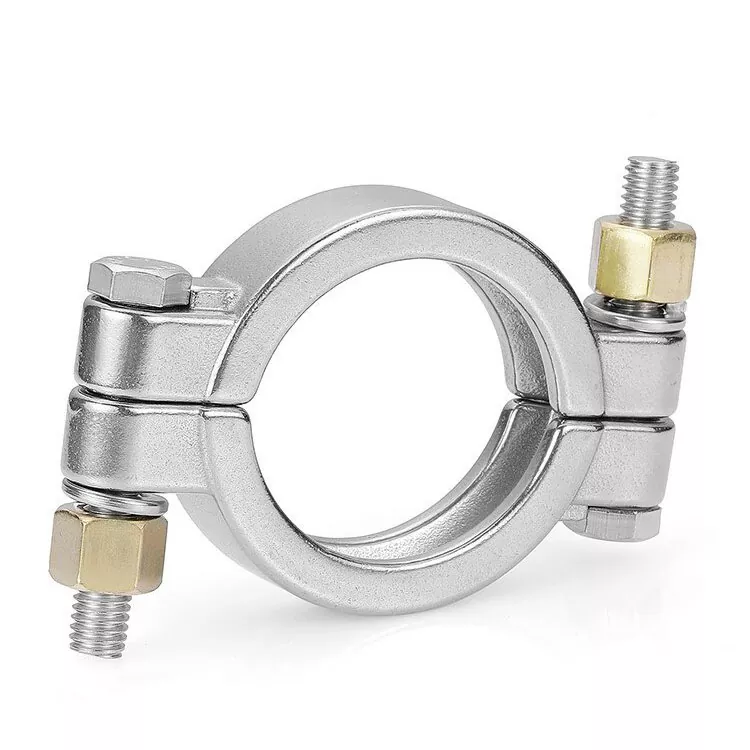

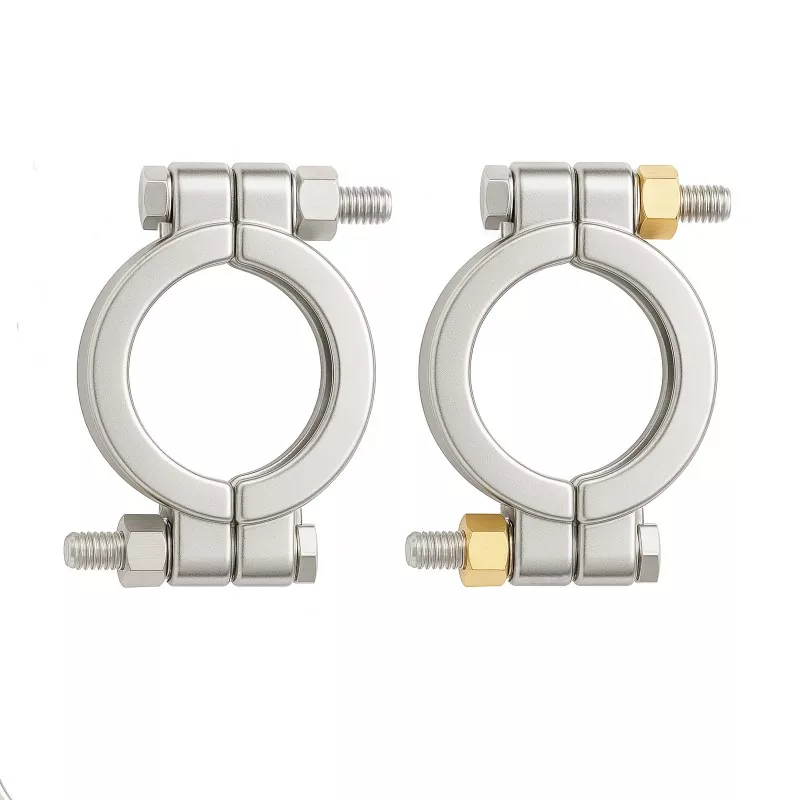

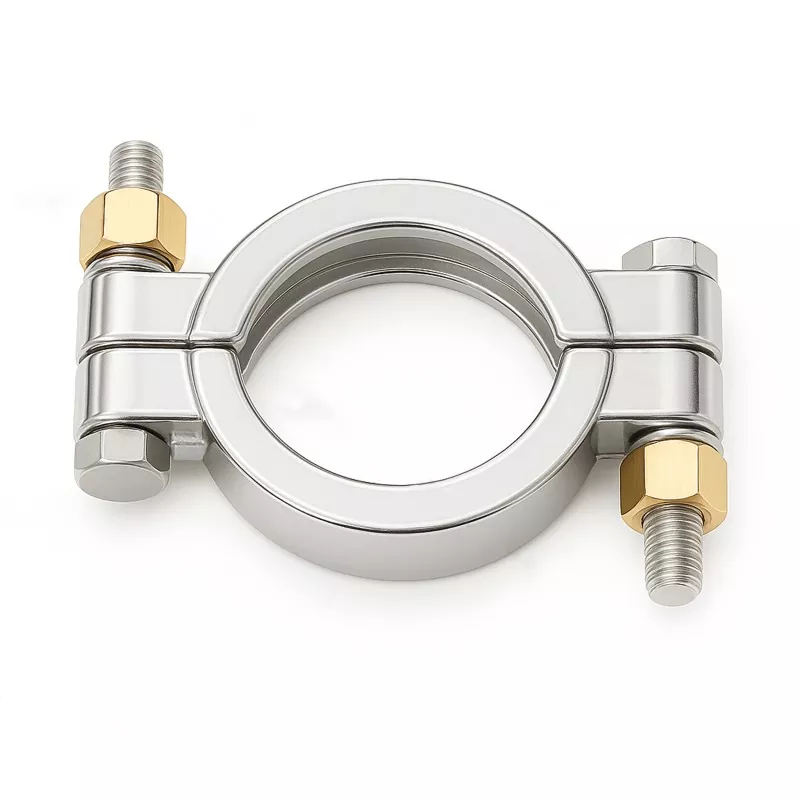

High-Pressure Tri-Clamp 13MHP

Built for tough jobs where leaks are not an option. This High-Pressure Tri-Clamp 13MHP uses two strong bolts to lock pipes tightly together, handling over twice the pressure of standard clamps. It stands up to heavy vibration and hot-and-cold temperature swings. Ideal for protecting expensive AI server racks, main liquid cooling supply lines (CDU), and high-pressure food processing systems.

Technical

Key Advantages

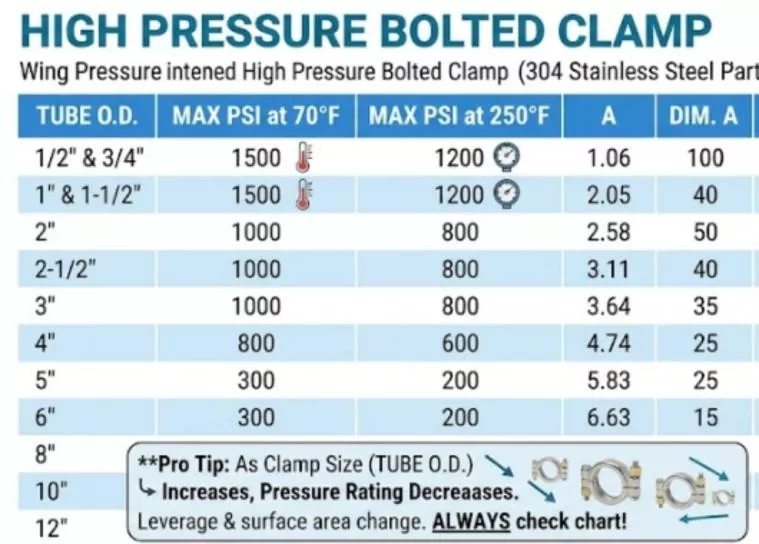

Superior High-Pressure Capacity

Engineered with a heavy-duty dual-bolt design that provides double the clamping load of standard single-pin clamps, easily handling extreme operating pressures.

Extreme Anti-Vibration & Anti-Loosening Security

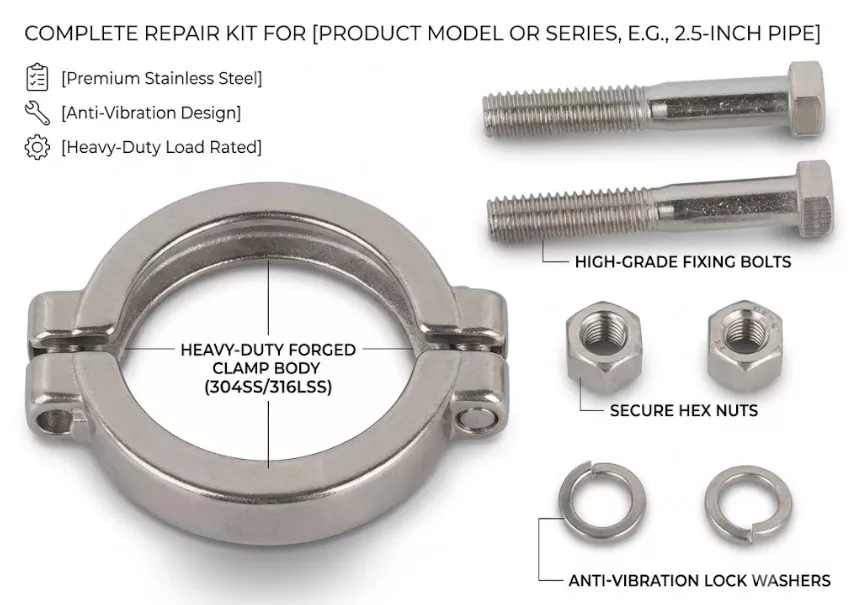

Uses dual brass or stainless steel nuts fastened with socket tools. This mechanical lock eliminates the risk of accidental loosening caused by heavy pump pulsation, thermal expansion, or liquid pressure spikes.

360° Heavy-Duty Uniform Sealing

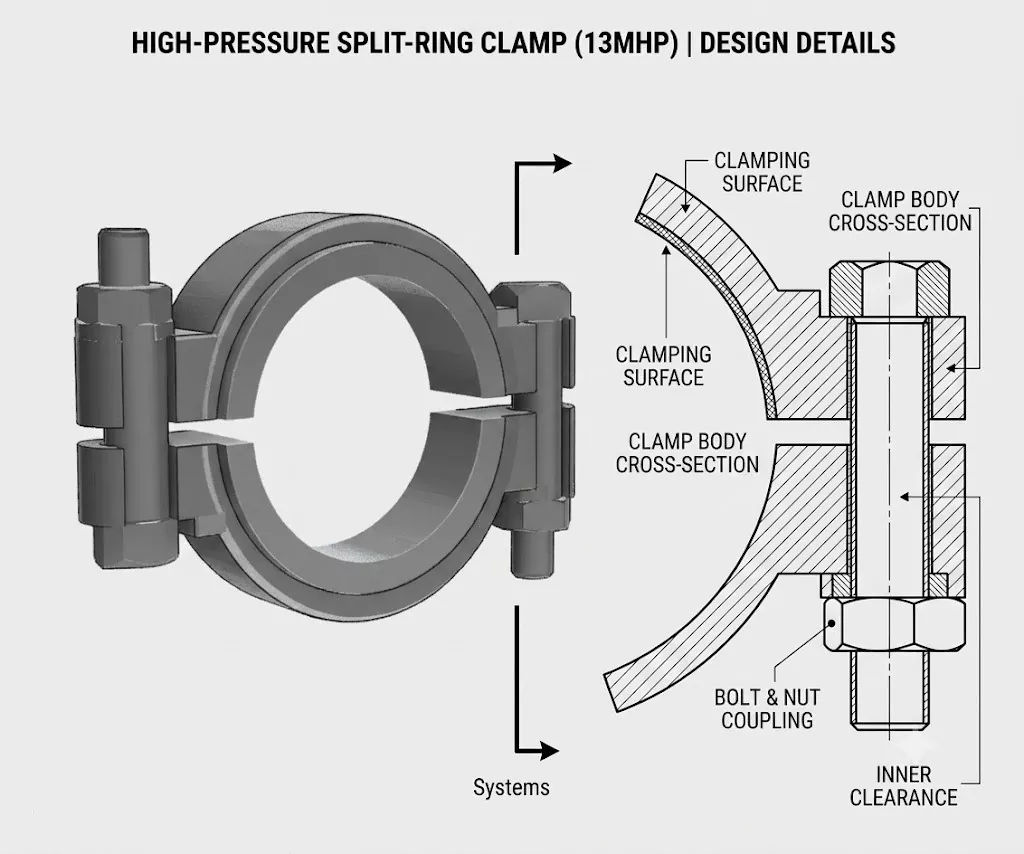

The rigid two-segment forged frame distributes clamping force symmetrically around the entire ferrule flange, preventing gasket deformation and guaranteeing a zero-leak seal over long service lives.

Installation & Best Practices

1) Inspect Components Before Assembly

Ensure the clamp halves, ferrule flanges, and gasket are clean, dry, and free of burrs or scratches. A damaged gasket or dirty flange face is the primary cause of system leaks.

2. )Proper Alignment First

Align the two ferrule flanges perfectly parallel before placing the clamp over them. Never use the clamp to pull misaligned pipes together, as this creates uneven stress and premature gasket failure.

3.) Torque & Tightening Guidelines

Single Pin Wing Nuts: Hand-tighten firmly, then use a leverage tool via the cross-hole if higher torque is required for medium-pressure lines. Do not over-tighten with heavy tools to avoid stripping threads.

High Pressure Tri Clamp 13MHP: Always tighten the dual bolts evenly and incrementally (alternating between both sides) using a torque wrench. Target standard torque: 20 ft-lbs (or according to your spec sheet).

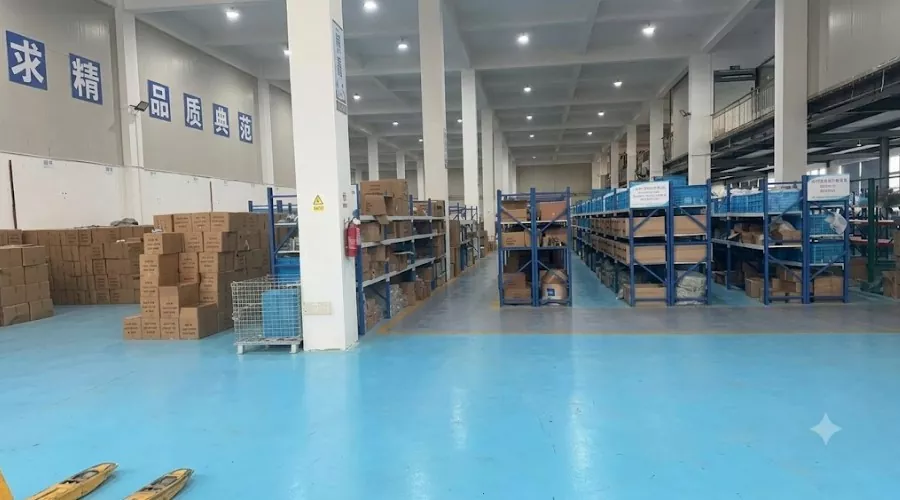

Finished Goods Storage
