316L Sanitary Long Weld Ferrule for Hygienic Piping Systems

In large hygienic piping projects, connecting sanitary equipment with industrial pipe networks often requires more than a standard ferrule. Different pipe sizing systems, welding requirements, and installation conditions can create challenges during pipeline integration.

316L Sanitary Long Weld Ferrule for Hygienic Piping Systems provide an extended welding area that allows easier positioning and more stable welding between Schedule pipe and sanitary clamp connections. The longer weld section is especially suitable for TIG welding and orbital welding processes commonly used in high-purity piping systems.

Manufactured from 316L stainless steel with precise dimensional control and smooth internal surfaces, this ferrule helps maintain clean flow paths while supporting reliable installation in demanding environments such as biopharmaceutical facilities, semiconductor plants, data center liquid cooling loops, and sanitary processing equipment.

Technical Specifications

Why Choose a Long Weld Ferrule Instead of a Standard Ferrule?

More Welding Space for Complex Piping Installation

Large sanitary piping systems often require accurate positioning before welding. A short welding section can limit installation flexibility and make alignment more difficult, especially on larger diameter pipes or prefabricated pipe assemblies.

The extended barrel design of the 316L Sanitary Long Weld Ferrule provides additional welding length, giving installers more room for precise alignment and stable welding operations.

This makes it a practical choice for:

· Orbital welded piping systems

· Large process skids

· Permanent hygienic pipeline installations

· High-purity fluid circulation systems

Designed for Schedule Pipe Applications

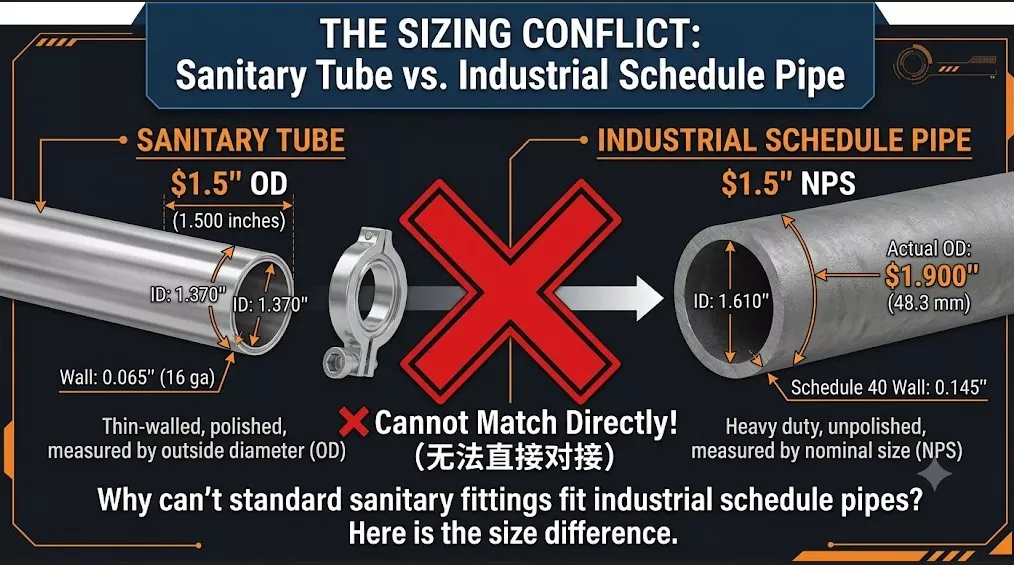

Traditional sanitary ferrules are commonly used with standard sanitary tubing, but many industrial projects use Schedule pipe sizes for stronger mechanical performance.

The 14AM7X Long Weld Ferrule bridges this dimensional gap by combining:

· Schedule pipe welding compatibility

· Sanitary Tri-Clamp connection flexibility

· Hygienic internal flow design

This allows engineers to connect heavy-duty piping networks with valves, pumps, tanks, and equipment that require sanitary clamp connections.

Engineering Advantages

Reliable Welding Integration

The extended weld end supports more controlled welding procedures compared with short ferrules. This helps reduce installation difficulties and improves consistency during pipeline fabrication.

For systems requiring orbital welding, the additional weld length provides better accessibility and process control.

316L Stainless Steel for High-Purity Environments

316L stainless steel is widely selected for applications where corrosion resistance and cleanliness are important.

Compared with standard stainless steel grades, 316L offers:

· Better resistance against pitting corrosion

· Improved performance in demanding fluid environments

· Compatibility with high-purity water and process media

It is commonly used in:

· Pharmaceutical water systems

· Semiconductor chemical delivery

· Liquid cooling circulation loops

· Food and beverage processing equipment

Smooth Internal Surface Supports Clean Fluid Handling

For 316L Sanitary Long Weld Ferrule for Hygienic Piping Systems, internal surface quality directly affects cleaning efficiency and contamination control.

DINGYUE Long Weld Ferrules are manufactured with controlled internal geometry to reduce unnecessary flow disturbance and help maintain a cleaner pipeline environment.

Where 316L Sanitary Long Weld Ferrule Is Used

Biopharmaceutical Processing Systems

Used in WFI systems, purified water loops, and process equipment connections where hygienic welding and material traceability are required.

Semiconductor High-Purity Fluid Systems

Suitable for ultrapure water and chemical delivery piping where contamination control and reliable stainless steel performance are critical.

Data Center Liquid Cooling Infrastructure

Modern liquid cooling systems require reliable stainless steel piping connections around CDUs, manifolds, and cooling loops.

The Long Weld Ferrule helps integrate sanitary clamp components into larger Schedule pipe networks while maintaining service flexibility.

Food & Beverage Processing Equipment

Applied in hygienic production lines where cleanability, corrosion resistance, and easy maintenance are important.

14AM7X Long Weld Ferrule vs Standard Ferrule

Manufacturing & Quality Control

Every DINGYUE Long Weld Ferrule is manufactured with controlled machining processes to ensure dimensional accuracy and reliable installation performance.

Production includes:

· 316L raw material verification

· CNC precision machining

· Dimensional inspection

· Surface finish checking

· Heat number tracking

· Material documentation support

For critical industries such as pharmaceutical, semiconductor, and liquid cooling, consistent dimensions and material traceability help reduce installation risks during large-scale projects.

FAQ

Q1: What is the difference between a standard ferrule and a long weld ferrule?

A standard ferrule is mainly used for common sanitary connections, while a long weld ferrule provides an extended welding section for larger piping systems. The longer weld area makes installation easier and is especially suitable for orbital welding and permanent process pipelines.

Q2: Can this ferrule be used for liquid cooling systems?

Yes. 316L Sanitary Long Weld Ferrules are suitable for liquid cooling applications where stainless steel piping, clean connections, and reliable long-term operation are required, including CDU and high-density cooling loops.

Q3: Why choose 316L stainless steel instead of 304 stainless steel?

316L provides better resistance against corrosion and pitting, making it more suitable for high-purity fluids, pharmaceutical systems, semiconductor applications, and demanding cooling environments.

Q4: Do you provide material certificates for these ferrules?

Yes. DINGYUE can provide material traceability documents including MTR reports and heat number records according to project requirements.

Q5: Are these ferrules compatible with orbital welding?

Yes. The extended weld section is designed to provide better welding accessibility and is suitable for TIG welding and orbital welding applications.

Q6: Can DINGYUE customize sizes or dimensions?

Yes. Custom dimensions, materials, surface finishes, and special project requirements can be discussed based on your piping specifications.
