Industrial piping and sanitary processing systems often follow different dimensional standards. A pipe that appears to have the same nominal size may have different wall thicknesses and internal diameters, creating alignment problems during installation.
DINGYUE 19MPX adapters solve this mismatch by combining a Tri-Clamp connection on one side with a Schedule 10S weld end on the other. The internal transition is machined to reduce sudden changes in flow area, making it suitable for systems where cleanliness, flow stability, and long-term reliability are important.
|
Category |
Key Specifications / Options |
Application & Features |
|
Product Type / Part No. |
• 19MPX (Tri-Clamp x Schedule 10S Butt Weld Adapter) |
Serves as a heavy-duty transition fitting between sanitary Tri-Clamp processing lines and Sch 10S industrial piping systems. |
|
Connection Ends |
• End 1: Tri-Clamp Flange • End 2: Schedule 10S Plain End Butt Weld (Sch 10S BW) |
Clamp End: Easy disassembly for routine maintenance/cleaning. Sch 10S Weld End: High-strength permanent welding to Schedule 10S pipe. |
|
Material Grade |
• 316L Stainless Steel (1.4404) • 304 Stainless Steel (1.4301) |
316L: Superior pitting/corrosion resistance for biopharm, high-purity fluid, and liquid cooling systems. 304: Standard grade for food, beverage, and general industrial process lines. |
|
Material & Quality Standards |
• ASTM A182 / A479 / A269 compliance • Stamped with Heat Lot Number • Full Material Test Report (MTR) traceability |
Manufactured from solid forged bar stock or heavy-wall tubing to withstand higher operating pressure and mechanical stress. |
|
Standards & Certification |
• 3-A Sanitary Standards (No. 63-03 / Authorization No. 621) • ASME BPE compliant • FDA 21 CFR 177.2600 & USP Class VI (for mating gaskets) |
Certified hygienic construction ensuring global interchangeability and safety compliance for high-purity and sanitary processing applications. |
When building a liquid cooling data center or a sanitary fluid system, engineers often face a hidden trap: Industrial Pipes and Sanitary Valves do not speak the same language.
Even if they are both labeled as "2 inches," their actual inside diameters are totally different. If you force them together using a standard straight ferrule:
The "Speed Bump" Effect: A sharp, jagged internal ledge forms inside the pipe.
The Bacteria/Debris Trap: Fluid will slam into this wall, creating turbulence, stagnant dead zones, and a breeding ground for bacteria or coolant debris. Your CIP (Clean-In-Place) system won't be able to flush it out.

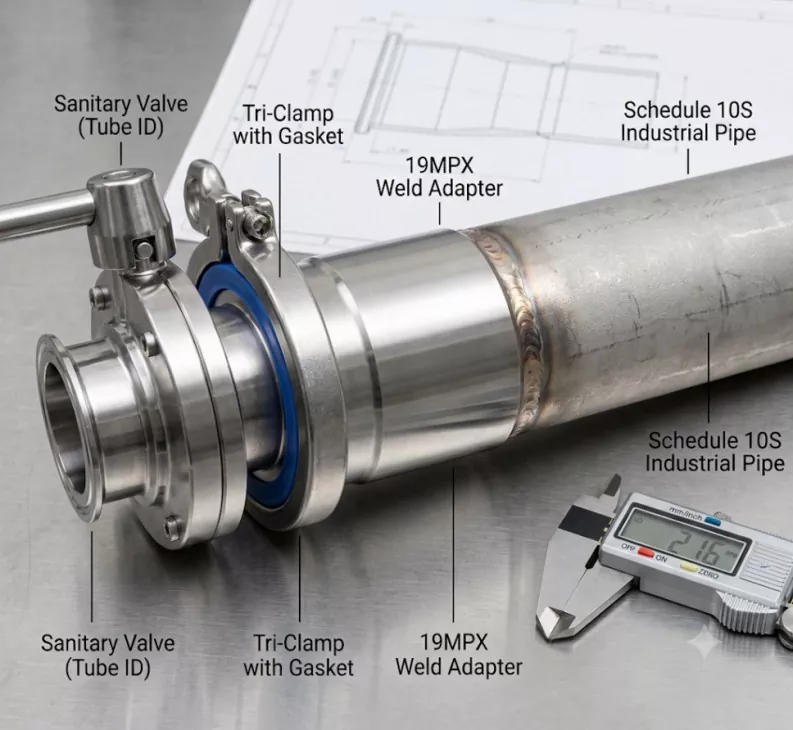

This is exactly why smart engineers choose the 19MPX Weld Adapter.
Instead of a sharp cliff, the 19MPX CLAMP X SCHEDULE 10S WELD ADAPTERS features a precision-machined Tapered Internal Slope (Internal Chamfer). It acts like a smooth highway ramp:
On the Weld End (Right): It perfectly matches the thick wall and wide ID of your Schedule 10S Industrial Pipe.
On the Clamp End (Left): It smoothly tapers down inside to match the standard Sanitary Tube ID of your valves, pumps, or equipment.
The Result: 100% Dead-Space-Free. Perfect laminar flow. Fully compliant with 3-A Sanitary Standards.
|
Size: 2" Connection |
Actual Outside (OD) |
Wall Thickness |
Inside Flow (ID) |
Best For... |
|
Sanitary Valve (Tube) |
2.00" (Standard) |
Thin (0.065") |
1.87" (Smaller) |
Clean equipment, valves & pumps |
|
Industrial Pipe (Sch 10S) |
2.375" (Bulkier) |
Thick (0.109") |
2.16" (Larger) |
Main supply lines, high-pressure cooling |
|
19MPX Adapter |
Transitions seamlessly from 2.375" down to 2.00" |
Internal Tapered Slope |
Eliminates the 0.29" gap perfectly! |
Bridging the two worlds without dead space! |
If you are building or supplying a next-generation liquid cooling data center, 14WMX and 19MPX CLAMP X SCHEDULE 10S WELD ADAPTERS are not just components—they are system safeguards.
The Setup: Main coolant loops and Cooling Distribution Units (CDUs) require heavy-duty, thick-walled Schedule 10S stainless steel pipes to handle constant pressure and guarantee decades of leak-free operation.
The Challenge: The actual server racks, manifolds, and control valves need Tri-Clamp (quick-disconnect) connections so technicians can perform rapid maintenance or swaps without tools.
The Solution: 14WMX and 19MPX adapters feature a heavy-duty industrial weld end on one side and a precision sanitary clamp on the other, seamlessly connecting these two completely different piping worlds.
The Problem: When you force a thick industrial pipe to meet a thinner sanitary valve, a sharp internal "cliff" or ledge is created. This mismatch causes severe fluid turbulence and massive pressure drops, forcing your coolant pumps to work harder and wasting energy.
The 19MPX CLAMP X SCHEDULE 10S WELD ADAPTERS Advantage: With its precision-machined internal tapered slope, the 19MPX acts like a smooth highway ramp. It guides the coolant flawlessly through the transition, eliminating turbulence, minimizing flow resistance, and keeping the data center's energy efficiency (PUE) optimized.

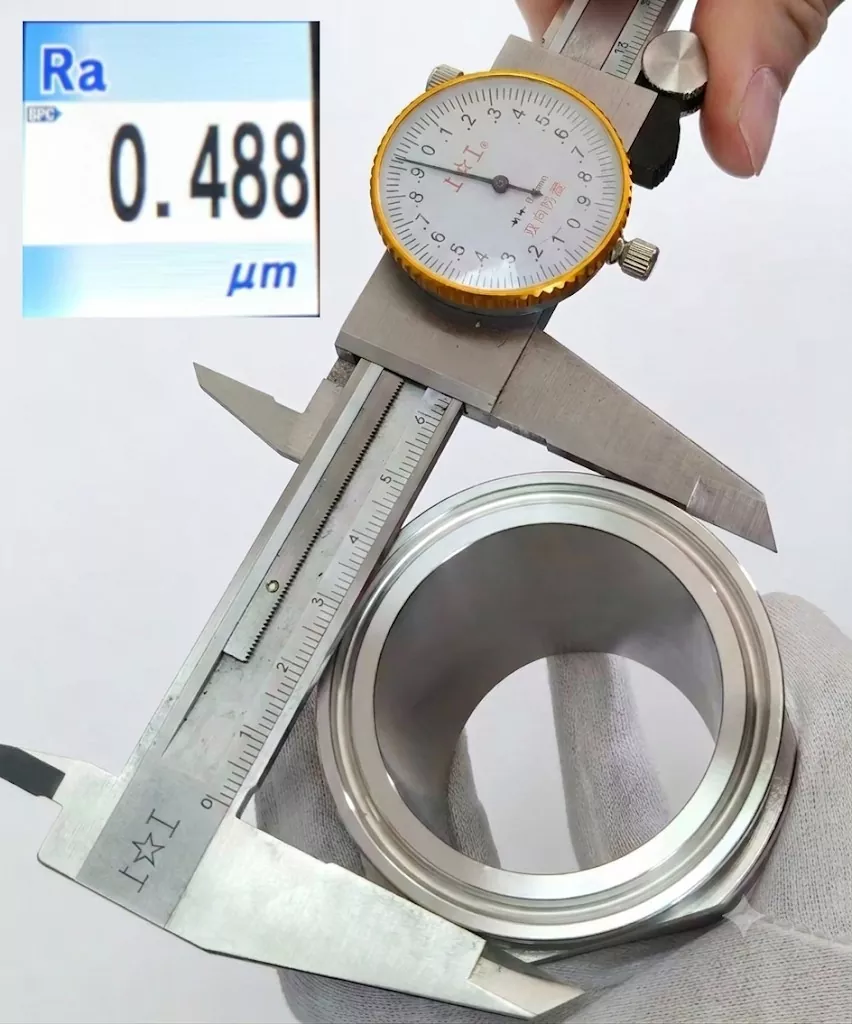

Quality manufacturing requires rigorous verification. Once finished, our products pass through strict QC checkpoints. We verify critical dimensions—height, ID, and OD—alongside internal surface roughness (guaranteed Ra < 0.8 µm). Only fully compliant units are dispatched. Count on us for precision-made parts that exceed industry expectations.
Because sanitary tubing and Schedule 10S piping use different dimensional standards. The adapter helps create a proper transition between their actual outside and inside dimensions.
A standard adapter may only connect two ends mechanically. The 19MPX focuses on internal flow transition, helping reduce abrupt diameter changes between different piping systems.
Yes. It is suitable for CDU systems and cooling loops where Schedule piping needs to connect with Tri-Clamp-based components.
DINGYUE offers 304 and 316L stainless steel options. 316L is commonly selected for high-purity and corrosion-sensitive applications.
Yes. DINGYUE can customize weld-end dimensions, clamp sizes, surface finishes, and other specifications according to project requirements.
Material certificates, heat number traceability, and inspection reports are available for projects requiring documentation.
