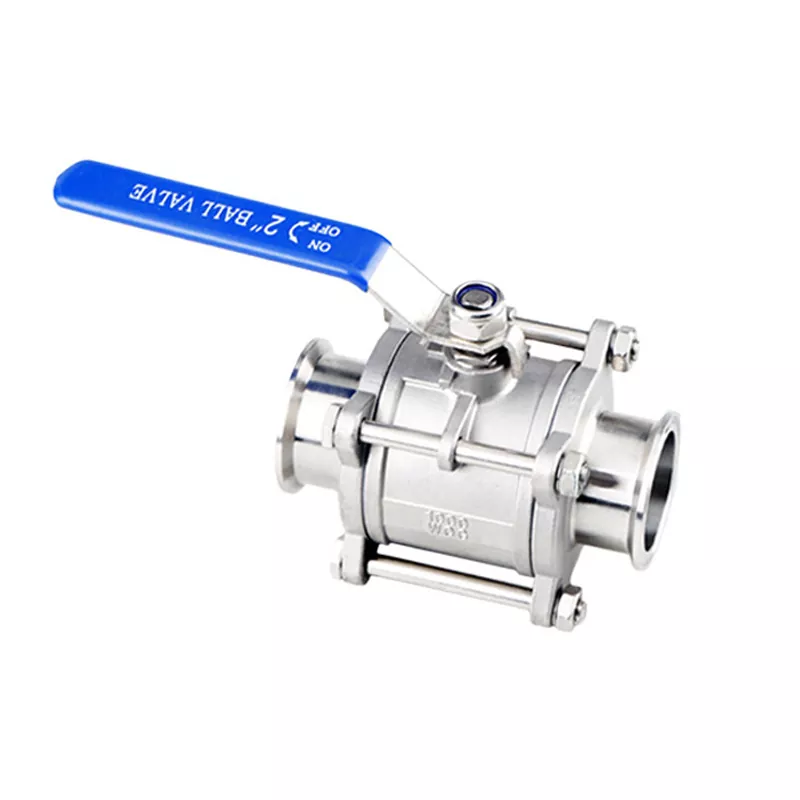

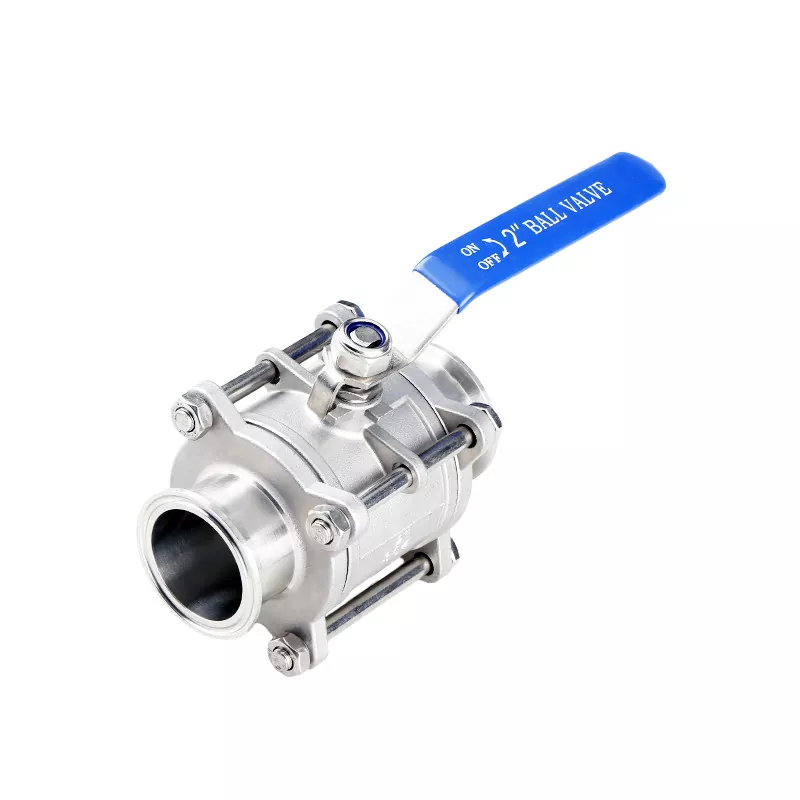

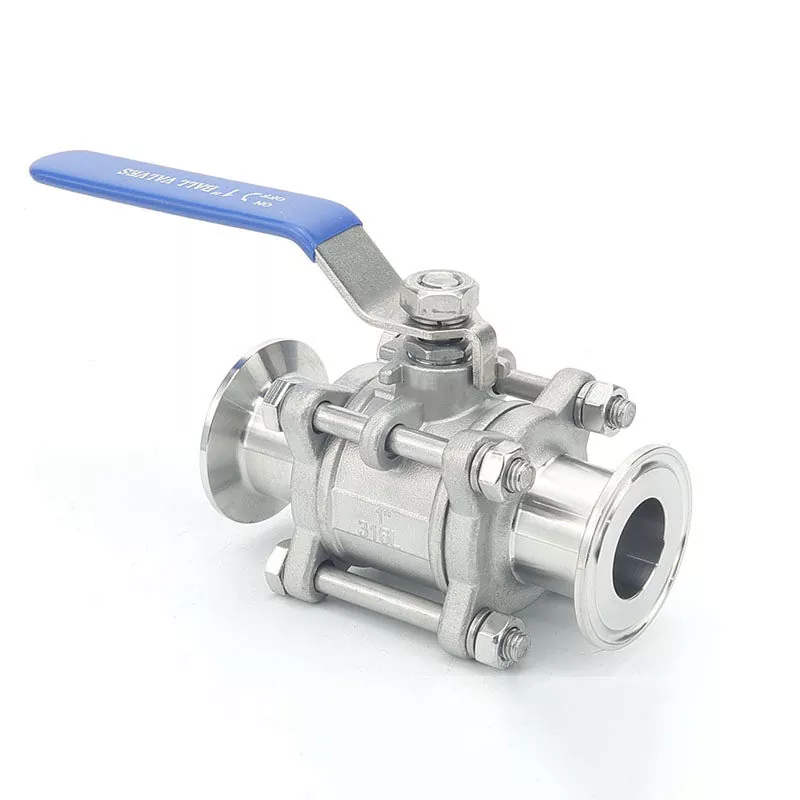

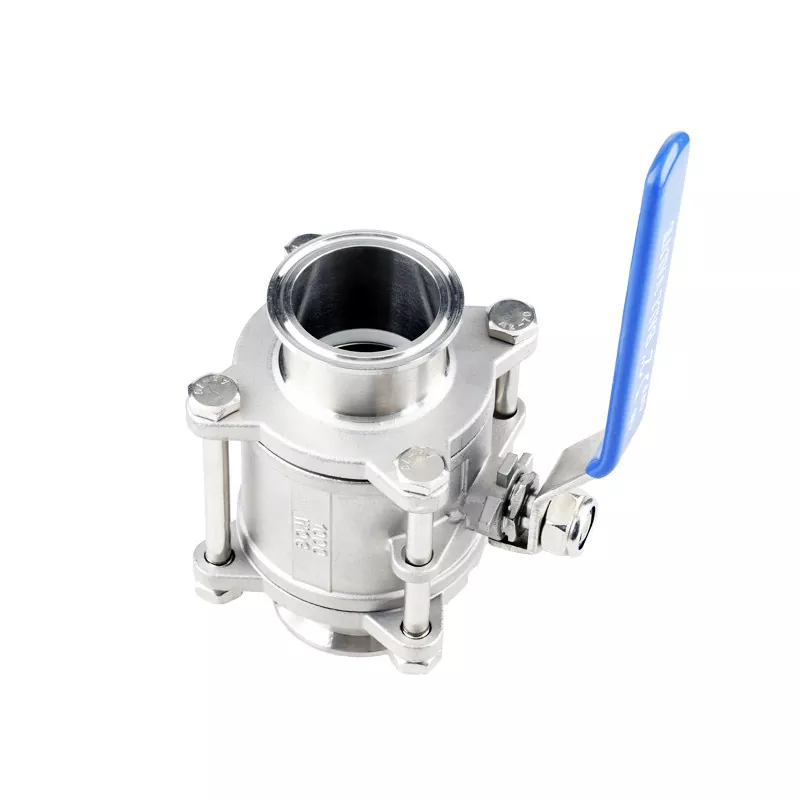

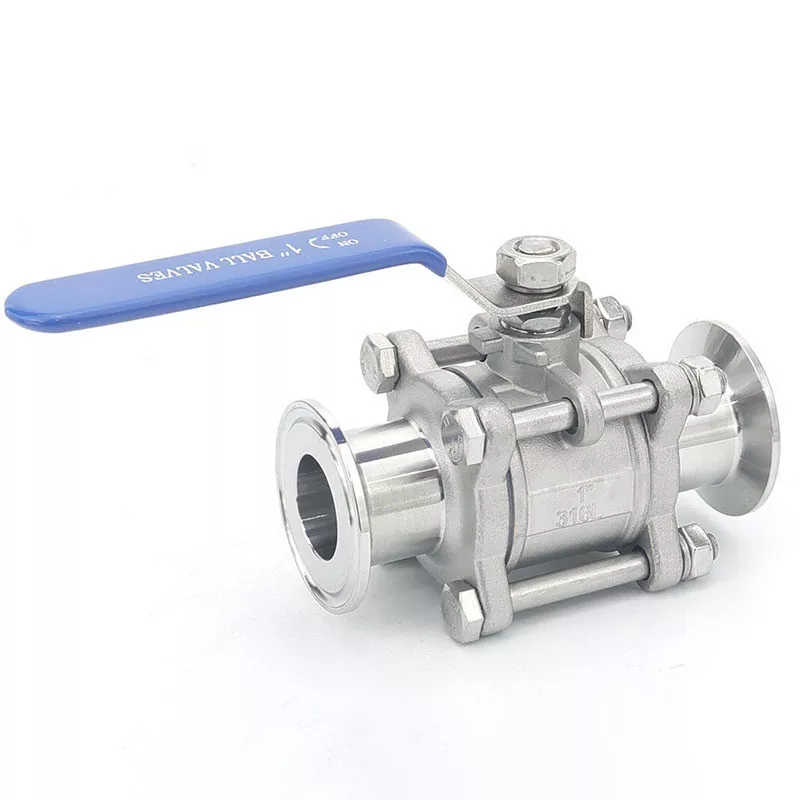

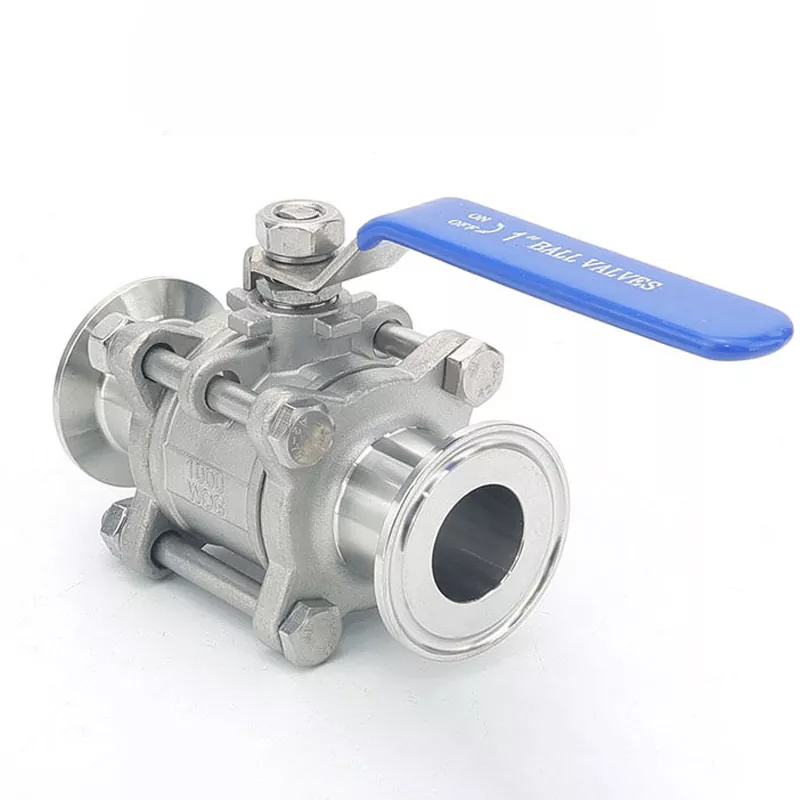

DingYue designs each Tri-Clamp ball valve with an encapsulated seat to prevent fluid trapping, which is vital for sterile food lines and sensitive AI data center liquid cooling grids. This high-purity valve features a smooth surface and excellent resistance against corrosion.
Our sanitary tri-clamp ball valves feature a highly polished, Designed for swift installation, the tri-clamp configuration utilizes high- precision heavy-duty clamps and FDA-compliant gaskets to form a perfectly flush mechanical joint. This makes it highly sought after by mechanical subcontractors deploying Coolant Distribution Units (CDUs), secondary loops, and chilled water lines in mission-critical facilities.
|
Technical Parameter |
Standard Specification |
Data Center CDW/Liquid Cooling Alignment |
|
Size Range |
1/2" to 4" (DN15 - DN100) |
Optimized for individual rack manifolds up to primary CDU loops. |
|
Material Selection |
SS316L/ SS304 |
Ultra-low carbon profile eliminates intergranular corrosion in water systems. |
|
Seat / Seal Material |
PTFE |
Prevents stagnant fluid trapping, preventing bacterial biofilm & debris accumulation. |
|
Working Pressure |
1000 PSI (64 Bar) WOG rating |
Safely exceeds typical data center secondary loop pressures (60–90 PSI). |
|
Surface Polish Finish |
Internal Ra < 0.8 µm Mechanical& Electro polished |
Minimizes flow friction coefficient, lowering total system pumping power. |
|
Connection Types |
Tri-Clamp (ASME BPE / DIN 32676 / ISO 2852) |
Tool-free quick assembly for ultra-fast site mobilization and replacement. |
We execute comprehensive material traceability across our manufacturing line. Every individual tri clamp ball valve body is permanently laser-etched with a unique Heat Number linked directly to the original steel mill test certificate.
On massive hyperscale construction jobsites, field installation speed translates directly to project profitability. Threaded joints require extensive thread sealants, manual torque checks, and pose long-term leak risks. Welded joints require specialized on-site orbital welding technicians and lengthy x-ray testing protocols. Our tri-clamp connection system enables mechanical subcontractors to drop pre-fabricated piping spools into rack structures in minutes, achieving tight, high-pressure mechanical joints using only standard torque wrenches.
To preserve tri clamp ball valve lifecycle performance and ensure complete fluid isolation within hyperscale loops, mechanical teams must strictly adhere to standard operating criteria:
1. Verify that the laser-etched heat numbers and pressure ratings on the valve nameplate match your local mechanical drawing index.
2. Ensure the tri-clamp ferrule ends are free of any surface scratches, construction debris, or metal shavings that could damage the gasket face.
3. Slowly actuate the handle to ensure the valve cycles smoothly from full-open to full-closed positions before mounting.

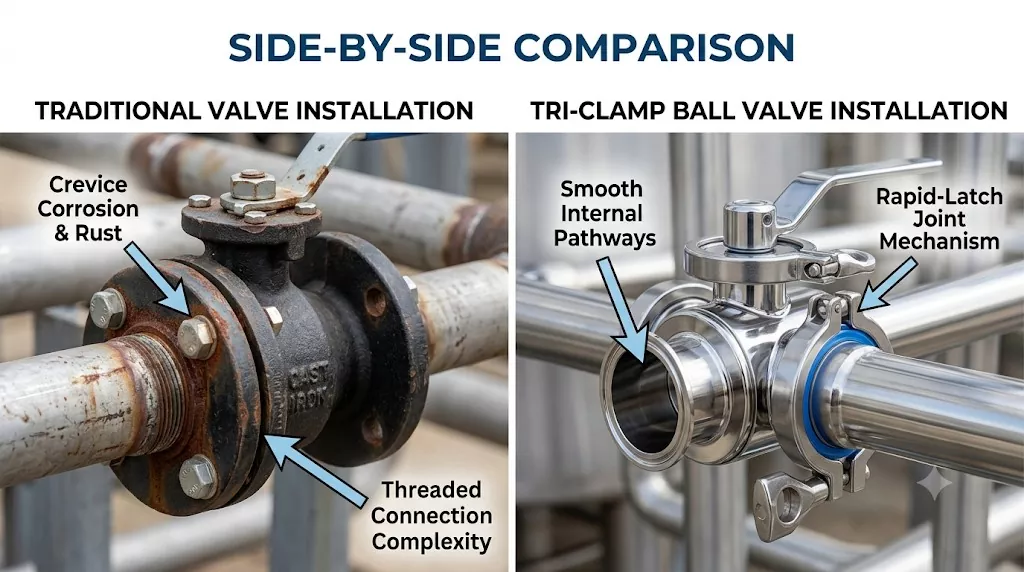

A: Threaded connections create microscopic fluid trapping zones between the male and female threads, accelerating localized galvanic corrosion and thread sealant erosion. Tri-clamp valves offer a completely smooth, flush internal pathway with zero dead-space cavities, ensuring no particulate contamination can travel downstream to clog expensive microchannel server cold plates.
A: Absolutely. Our premium ASTM 316L stainless steel combined with specialized cavity-filled TFM 1600 PTFE seats exhibits complete chemical inertness when exposed to popular synthetic fluoropolymer coolants, hydrocarbon fluids, and ultra-pure deionized water networks.
A: We maintain a massive raw-forging stock matching popular dimensional lines (1" to 3"). Standard orders typically ship within 15 to 20 days. Full-scale custom OEM designs requiring unique actuation configurations or specialized electropolishing finishes are generally delivered within 30 to 45 business days.

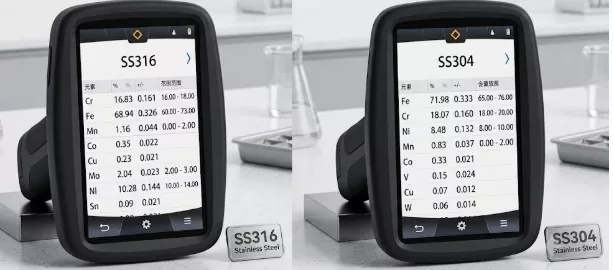

We take quality control seriously so you don't have to. Our workflow includes two layers of inspection: we test the raw metals upon arrival and re-verify them at the final loading dock. Every test proves our steel stays 100% within the official SS304 and SS316 elemental brackets. Get the exact rust-resistance and durability you are paying for.

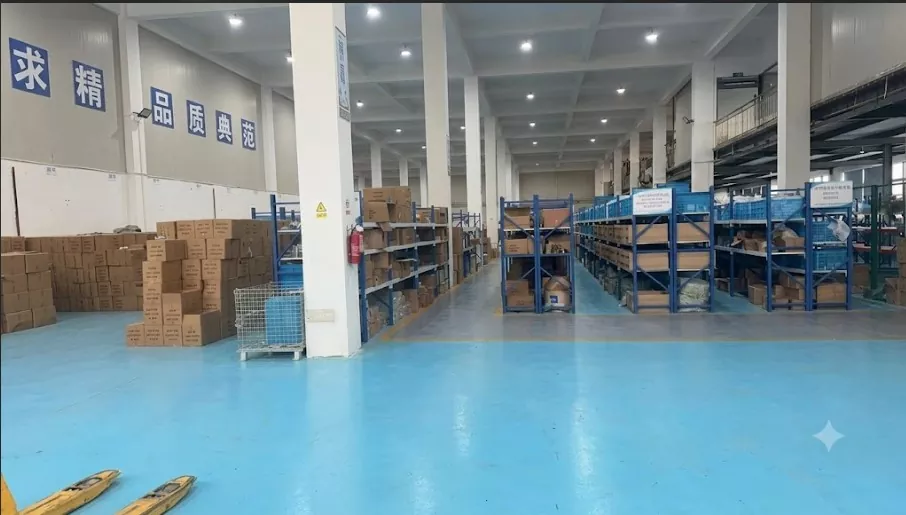

Why settle for companies that take days just to mail your box? Our warehouse is a finely tuned machine built for speed. We maintain a high-volume, fully stocked inventory year-round so that we can process and ship your orders the very same or next business day. Whether it's a single item or a bulk order, we have the capacity to handle it instantly. Choose reliability and skip the endless waitlist!

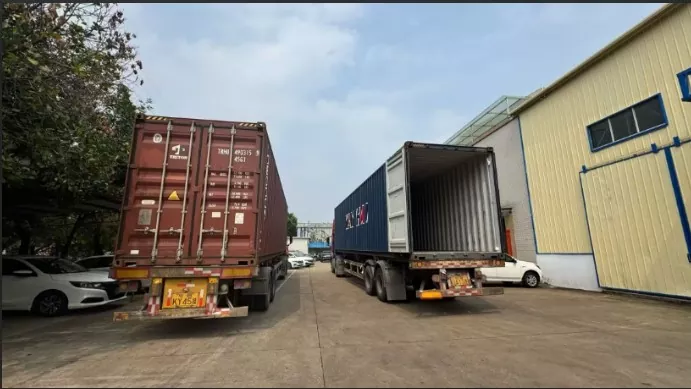

The trucks are lined up and ready to go! Today's shipment is heading out to our amazing international partners. We take pride in being a top choice for buyers looking for quality, fairness, and speed. Every container we seal is packed with our dedication to your business success. Join our growing list of satisfied global clients—contact us today to get the best wholesale deals available!
