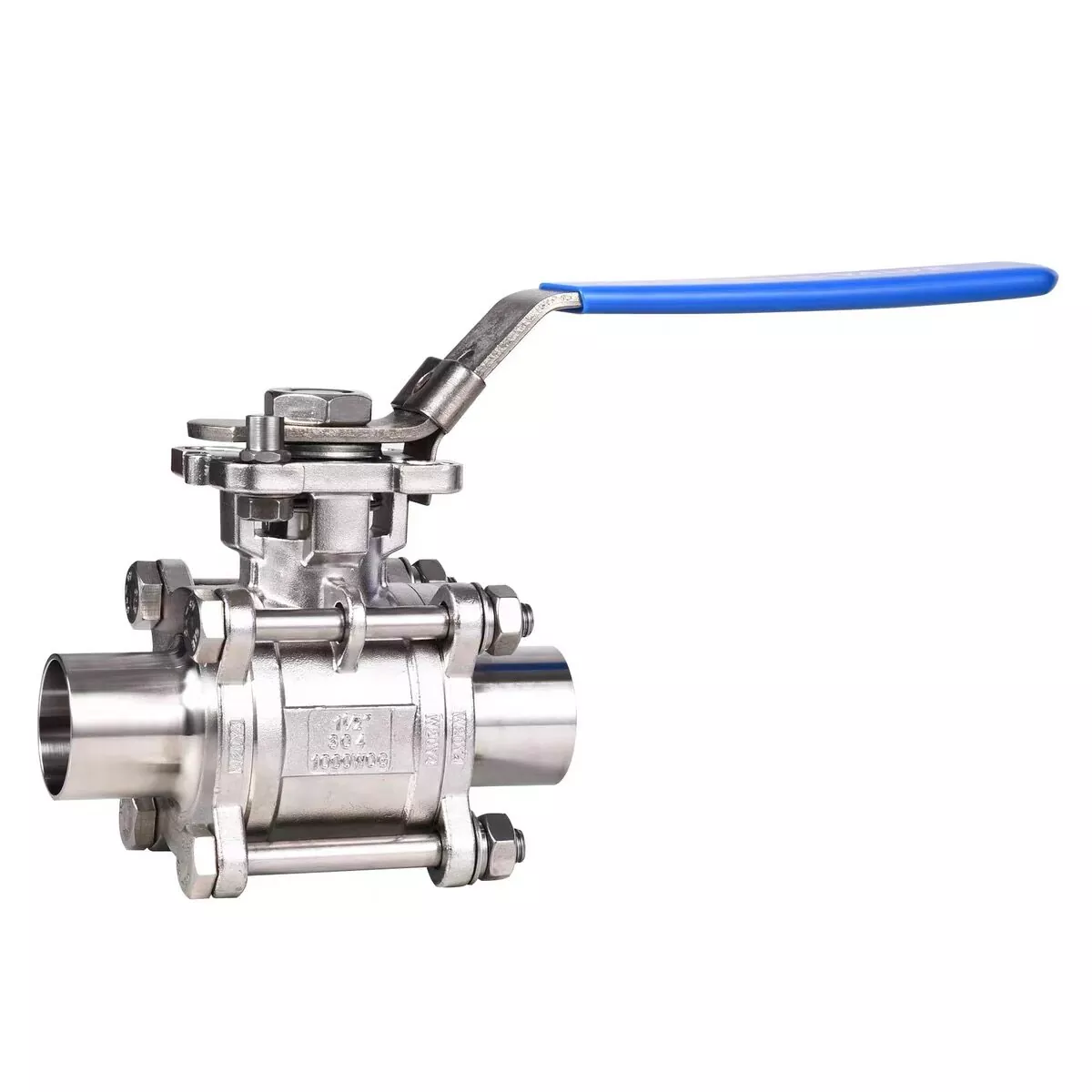

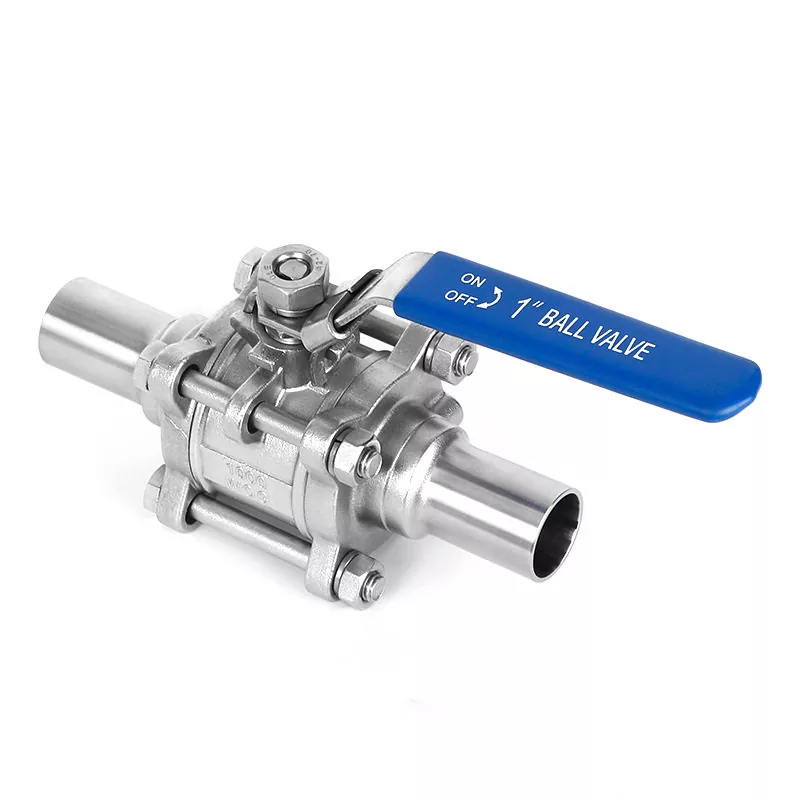

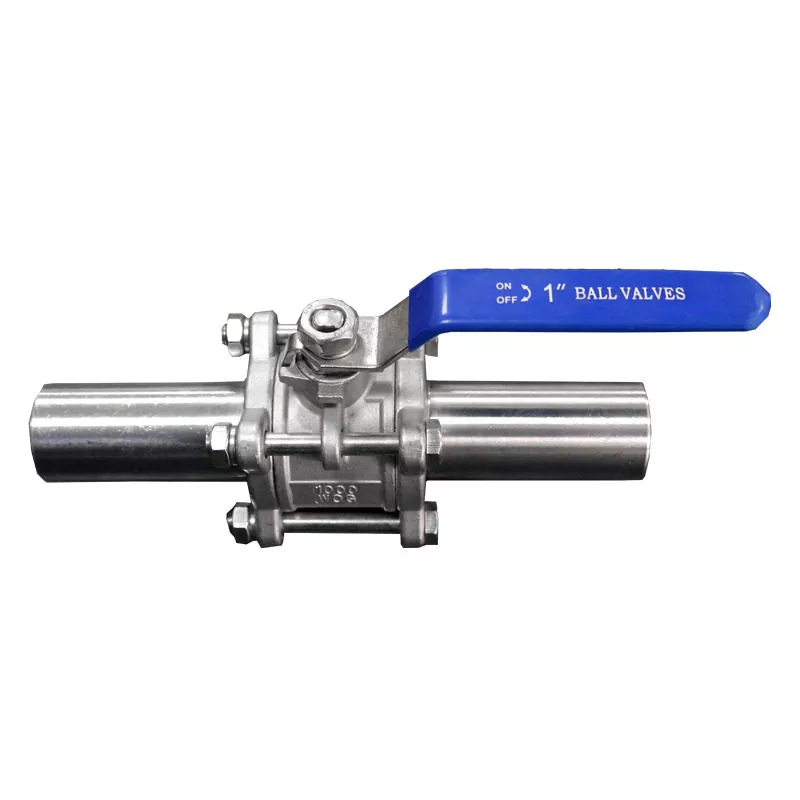

A Full-Bore Welded Sanitary Ball Valve is a sanitary isolation valve that uses a drilled ball with a flow passage matching the nominal pipeline bore. Unlike reduced-port designs, the full-bore configuration minimizes the restriction created by the valve body when the valve is fully open.

The welded connection provides a permanent connection between the valve and the process pipeline, making this configuration particularly suitable for sanitary systems where fewer mechanical joints are preferred.

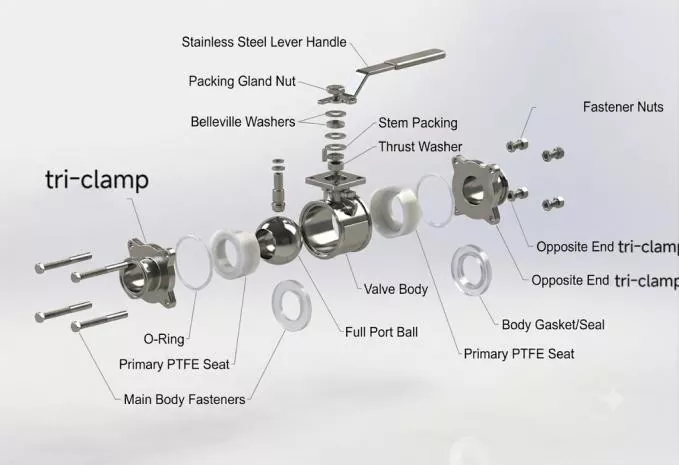

The basic construction includes:

· Stainless steel valve body

· Full-port stainless steel ball

· Precision-machined valve stem

· PTFE or modified PTFE seat

· Stem sealing components

· Butt-weld connection ends

· Manual, pneumatic or electric actuation options

This combination makes the valve different from a conventional threaded ball valve: the focus is not simply on opening and closing the line, but on maintaining a continuous, cleanable and low-restriction process flow path.

Technical Parameter Matrix

1. The Valve Body and Full-Port Design

The body is forged from single-billet ASTM A351 CF3M (316L) stainless steel. Forging eliminates the microscopic porosity inherent in cast steel, preventing hazardous media from leaching into the metal structure. The full-bore geometry means that when the valve is in the fully open position, a pigging tool can pass through the pipeline smoothly for mechanical cleaning cycles.

2. Advanced Cavity-Filler Sealing Systems

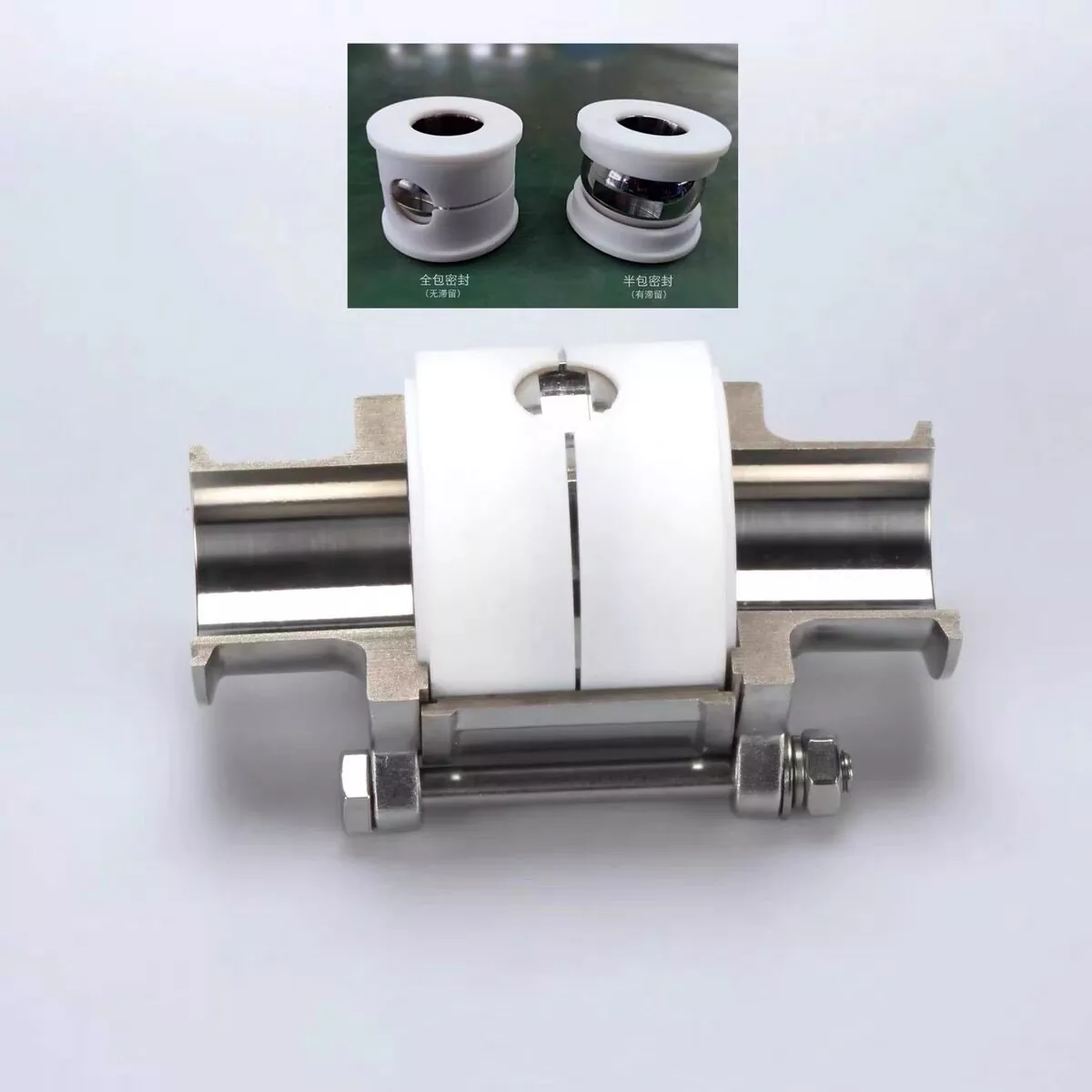

Standard ball valves leave an intentional gap between the ball and the valve housing. When fluids pass through, small amounts of the product get trapped in these dead spaces, leading to bacterial growth and batch contamination. Our weld full bore sanitary ball valve utilizes customized, precision-molded cavity-filler seats. These seats completely fill the void around the ball, leaving nowhere for residual liquids to hide.

3. Precision Welded Ends

The butt-weld ends are machined to exact tolerances corresponding to global piping standards (ASME BPE Series AM, DIN 11860 Range 2). The extended weld tangs ensure that heat generation during orbital TIG welding does not warp or melt the internal PTFE seals, ensuring a seamless drop-in fit for automatic welding rigs.

[Our Advanced Valve: Cavity Filled -> Linear Flush Path -> Zero Dead Zones]

Actuation Options

The weld full bore sanitary ball valve can be supplied for manual operation or integrated into an automated process control system.

For automated installations, the actuator should be selected according to the required torque, operating frequency, control signal and fail position rather than simply matching the actuator to the nominal valve size.

Implementation, Installation & Precautions

Proper installation preserves the mechanical advantages of your high-purity valves. Follow these engineering guidelines to ensure a flawless system commissioning:

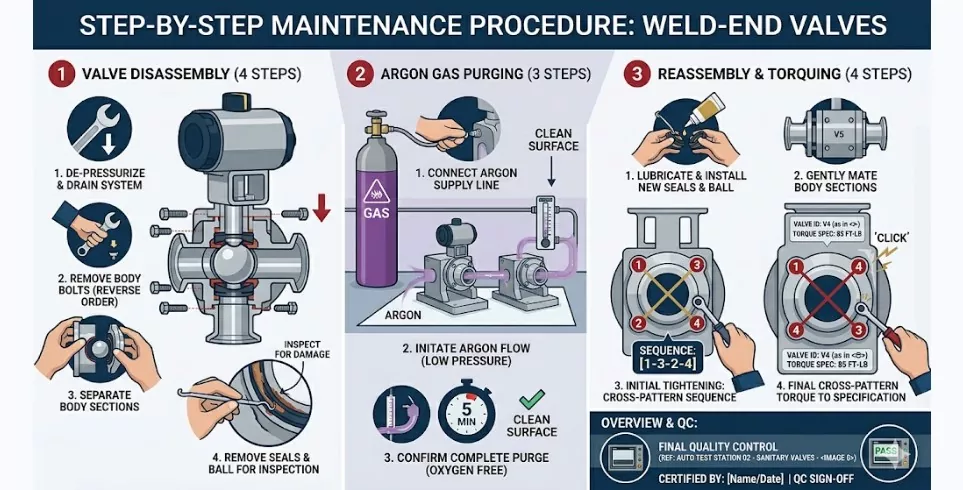

Preparation before Welding: Before starting automatic or manual TIG welding, the weld full bore sanitary ball valve must be completely disassembled to prevent the high heat of the arc from distorting or scorching the internal PTFE seats and stem seals. Only the two end caps should be tacked and welded onto the pipeline.

Why Choose DingYue?

Flexible Shipping Options

We manage diverse shipping weights and volume requirements daily. For instance, a recent mid-2026 mid-sized order featured a net weight of 890 KG packed into compact shipping cartons. To maximize safety during international air and ocean transport, the cargo was palletized using standard heat-treated crates, bringing the total gross weight to 930 KG and ensuring easy handling by standard forklifts.

Whether you require Less-than-Container Load (LCL), Full Container Load (FCL), or urgent air freight via major international couriers (DHL, FedEx, UPS), our dedicated logistics team manages all export documentation, customs clearance papers, and freight tracking to ensure a smooth delivery to your facility.

FAQ

What is a weld full bore sanitary ball valve?

It is a sanitary ball valve with a full-port flow passage and butt-weld ends designed for permanent installation in hygienic or high-purity piping systems.

What is the advantage of a full-bore ball valve?

A full-bore design allows the internal ball passage to closely match the pipeline bore when fully open, helping minimize flow restriction compared with reduced-port designs.

Why choose a welded connection instead of a Tri-Clamp connection?

Welded connections are suitable for permanent process piping where fewer detachable joints are preferred. Tri-Clamp connections are more convenient when frequent disassembly and maintenance are required.

Is the valve suitable for CIP systems?

It can be used in applicable CIP systems, provided that the valve size, seat material, temperature, pressure and cleaning chemistry are compatible with the actual process conditions.

Can the valve be used in biopharmaceutical systems?

Yes. Applicable 316L configurations, sanitary surface finishes and welded connections can be specified for biopharmaceutical fluid systems according to project requirements.

Is 316L available?

Yes. 316L stainless steel is available, with 304 stainless steel offered for applicable configurations.

What seat materials are available?

Available options include PTFE, TFM 1600 and cavity-filled PTFE. The appropriate choice depends on the medium and operating conditions.

Can this sanitary ball valve be automated?

Yes. Manual, pneumatic and electric actuation options are available. Pneumatic configurations can be supplied as normally closed, normally open or double acting.

Can DingYue provide material certificates?

For applicable orders, DingYue can provide Material Test Reports and heat-number traceability to support material verification and project documentation.
