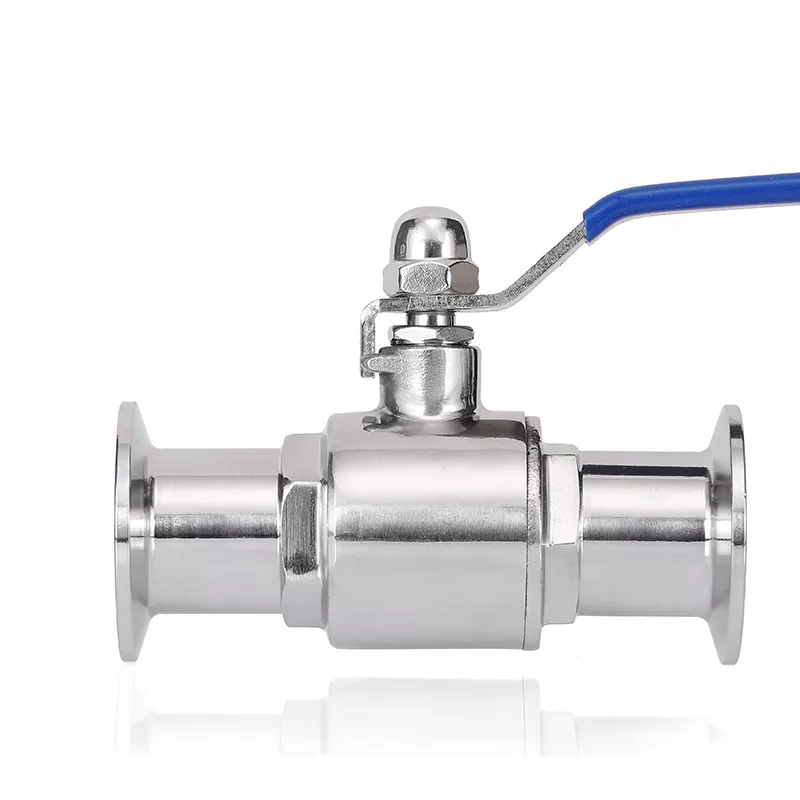

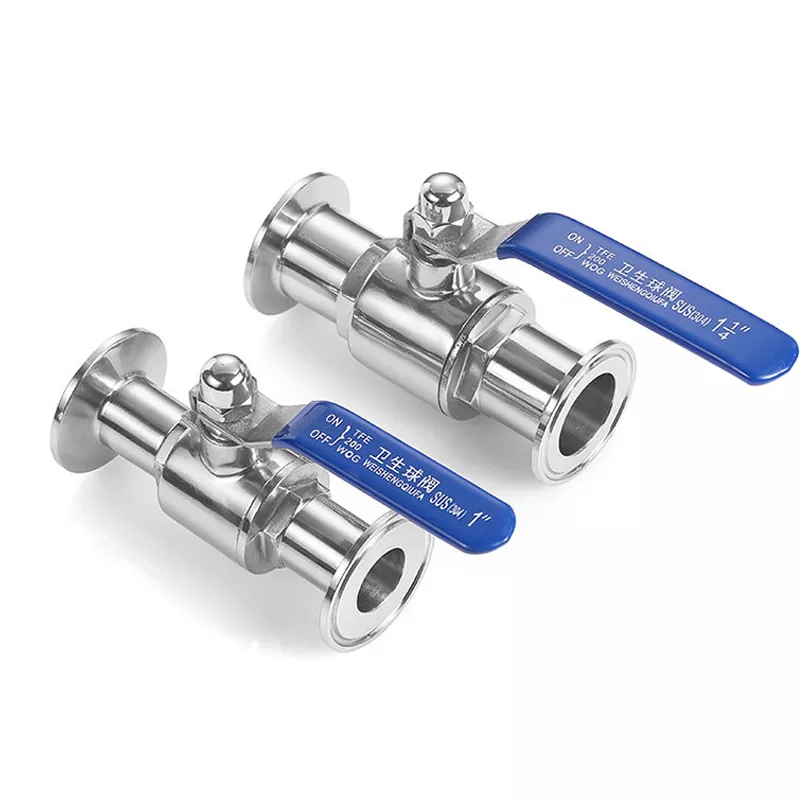

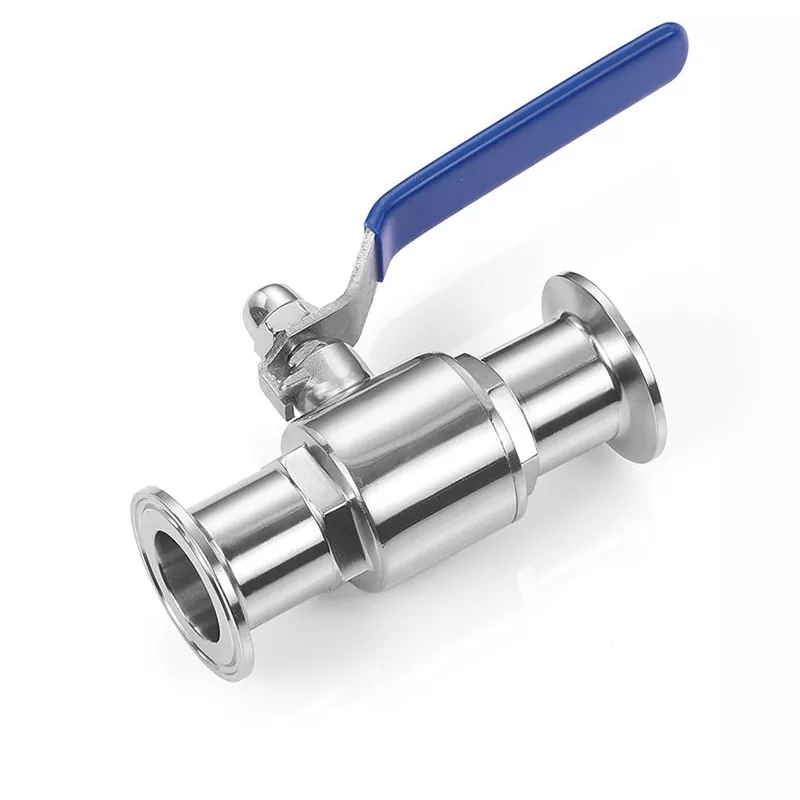

The DingYue Straight-Through Ball Valve offers a straight-through layout that works beautifully in liquid cooling loops for large data centers. Certified by FDA and CE, this heavy-duty valve provides a tight seal and reliable manual operation for dairy, beverage, and tech applications.
|
Parameter |
Specification Details |
|
Product Name |
Sanitary 2-Piece Tri-Clamp Ball Valve |
|
Body Type |
2-Piece Full Port Design |
|
Connection Type |
Tri-Clamp / Tri-Clover |
|
Material |
Stainless Steel 304 / 316L |
|
Seal/Gasket Material |
PTFE / TFM |
|
Size Range |
1/2" to 4" (DN15 - DN100) |
|
Max Operating Pressure |
1000 WOG / 150 PSI |
|
Working Temperature |
-20°F to 350°F (-28°C to 176°C) |
|
Surface Finish |
Internal Ra < 0.6 µm, External Ra < 0.8 µm |
|
Operation |
Manual with Lockable Handle (Blue Sleeve) |
|
Applicable Medium |
Water, Food, Beverage, Dairy, Brewery, Pharmacy, Chemical |
In high-purity process piping, engineers face constant challenges with fluid turbulence, pressure drops, and seat erosion. Standard throttle valves alter the direction of the media, causing friction and energetic loss. To provide an optimal fluid solution, our factory engineers and manufactures the premium Straight-Through Ball Valve

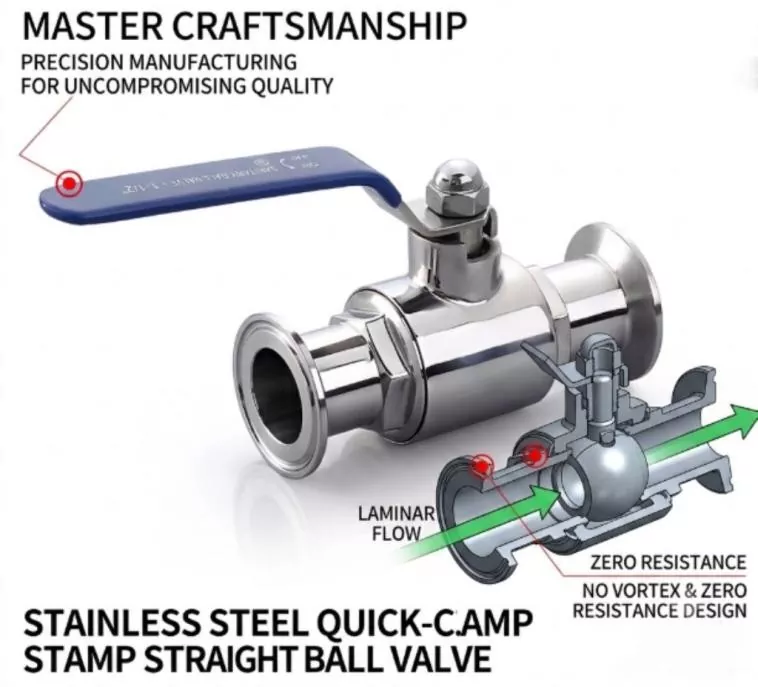

Unlike multi-port configurations, the Straight-Through Ball Valve focuses on a strict straight-through structural layout. When the valve is in the full-open position, the internal cylindrical path of the ball perfectly matches the inside diameter of the pipeline. This creates a continuous, unbroken conduit that allow fluids to pass without restrictive path changes.
|

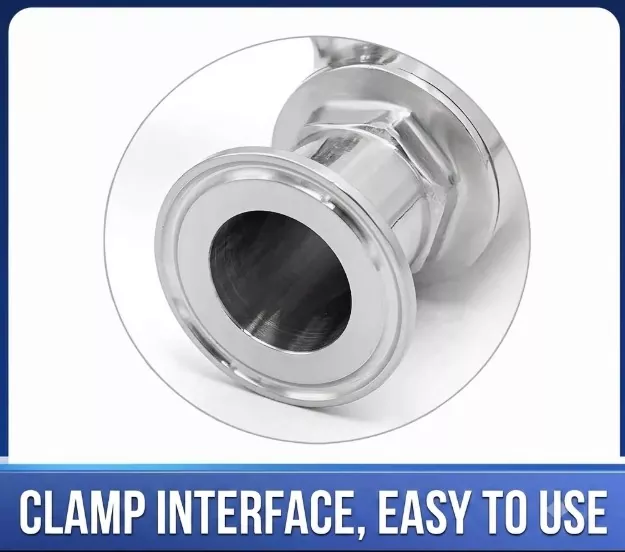

1）Our premium stainless steel fittings feature a standard Tri-Clamp interface, meticulously machined to ensure a seamless, leak-proof connection. Designed for efficiency, the "easy-to-use" mechanism significantly reduces assembly and maintenance downtime, keeping your operations running smoothly.
2）FOOD GRADE & SANITARY GRADE CERTIFIED: Our valves are meticulously designed to meet the strictest food safety and sanitary standards. Crafted from high-grade stainless steel (SUS 304/316), they are non-toxic, safe, and eco-friendly, ensuring zero contamination for your sensitive processes in the food, beverage, and pharmaceutical industries.

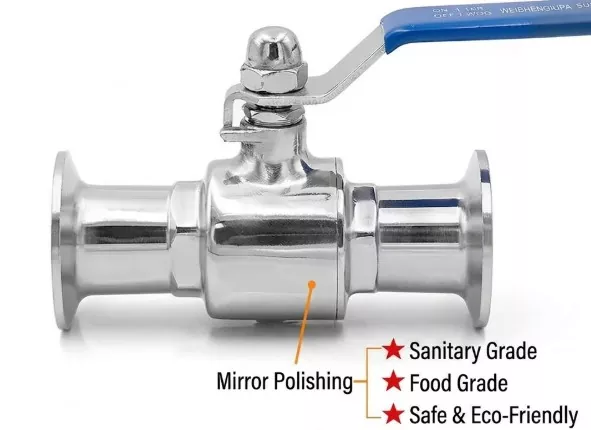

3）MIRROR POLISHING INSIDE & OUT: We don't just finish the surface; we achieve a flawless mirror polish (≤0.4μm). This ultra-smooth finish prevents material buildup and bacterial growth, significantly reducing the risk of contamination and making the valve extremely easy to clean and maintain (CIP/SIP compatible).
A: Yes. Because our straight-through valve utilizes a symmetrical seat architecture on both the upstream and downstream ends, it can secure and stop fluid flow coming from either direction with equal pressure performance.
A: For standard configurations (such as 1-inch and 2-inch Tri-Clamp connections), we maintain a rolling stock of components. We can typically assemble, test, pack, and clear the order for port delivery within 10 to 15 business days.
A: Yes! Our design office can supply high-precision 2D PDF blueprints and 3D STEP files within 48 hours for your technical staff to review and sign off on.

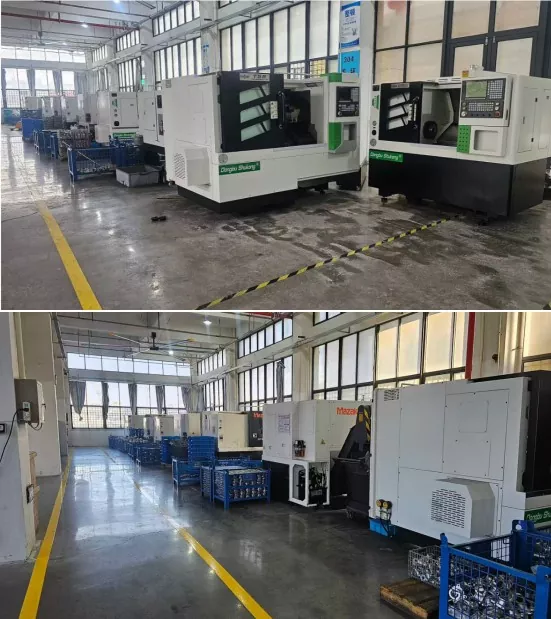

We keep our workshop incredibly clean and organized because a messy factory makes messy products. Our big facility has tons of these modern automated machines running every day. This means we can make thousands of valves and pipe fittings super fast without losing quality. If you need a big order delivered quickly, we've got you covered.
