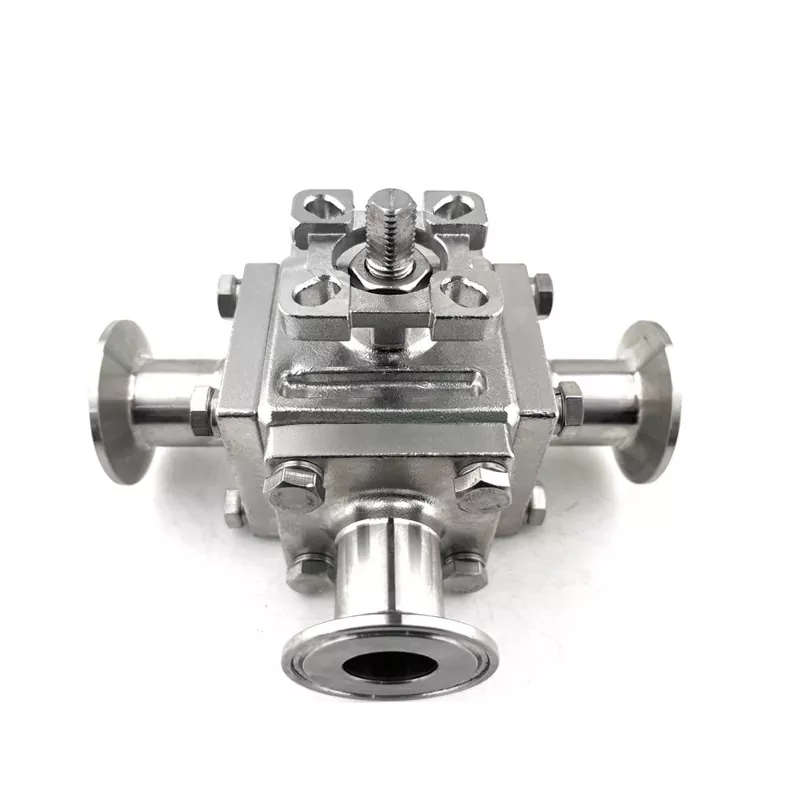

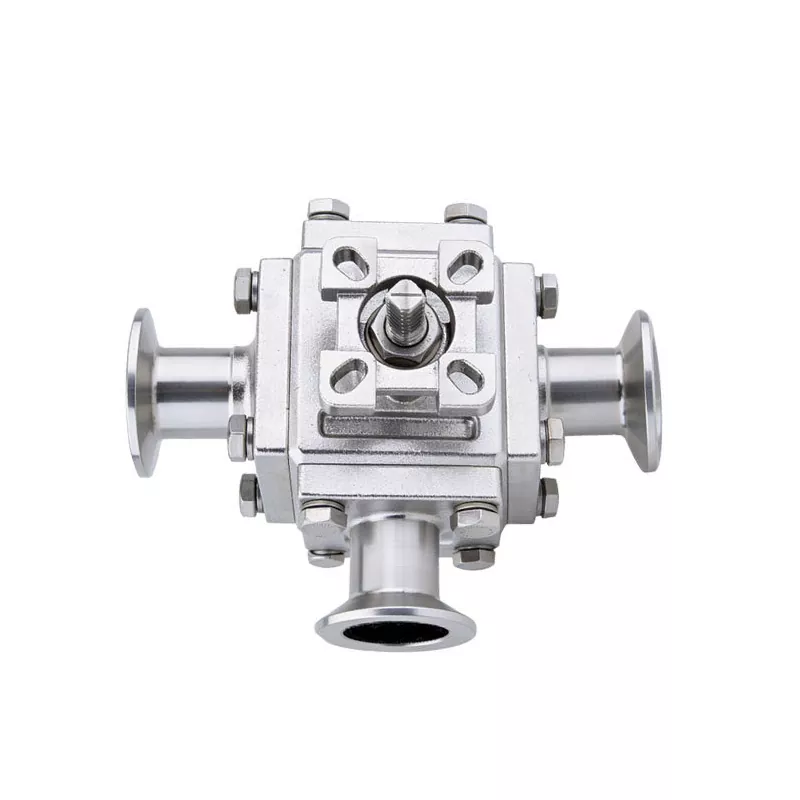

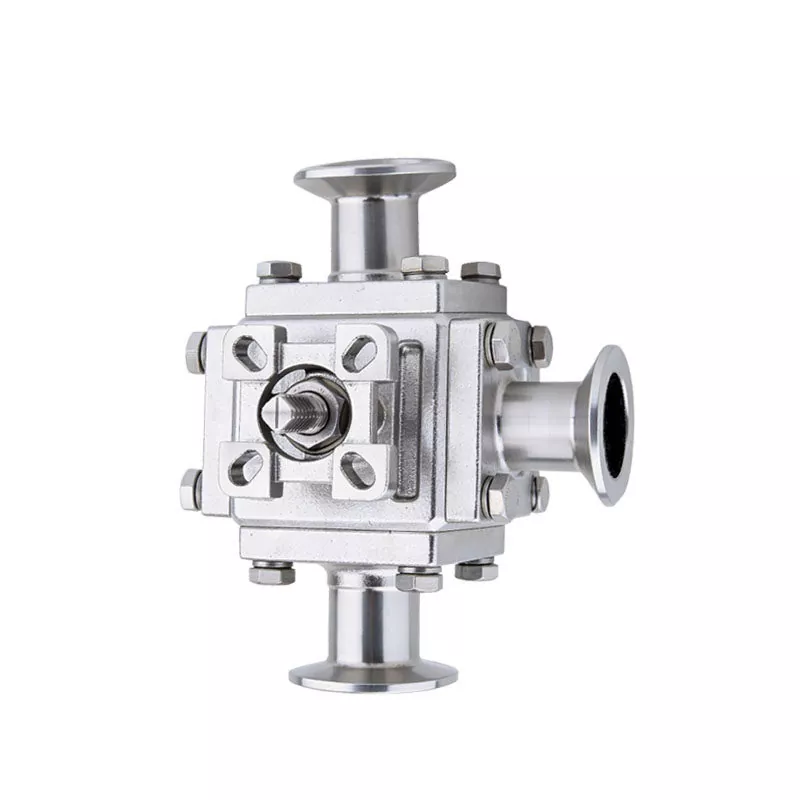

Three-Way Encapsulated Clamp Ball Valve

In sanitary processing lines, valve design directly affects cleaning efficiency and contamination control. The Three-Way Encapsulated Clamp Ball Valve from DINGYUE is developed with an encapsulated structure that helps reduce fluid retention areas and protects critical sealing parts during operation. Its clamp connection allows faster installation and replacement compared with traditional threaded designs, making it easier to maintain in frequently cleaned pipeline systems. Suitable for beverage production, pharmaceutical equipment, and high-purity liquid circulation applications, this valve delivers practical flow switching performance while supporting strict hygiene requirements.

Comprehensive Technical Specifications

Which 3-Way Ball Valve Do You Need?

A Simple Guide for Non-Technical Buyers & Procurement Managers

Both valves do a great job controlling fluid directions, but they are built differently inside. Here is a simple, no-jargon breakdown to help you pick the right one for your budget and system.

1. Three-Way Encapsulated Clamp Ball Valve

Think of this valve as a wide-open, straight tunnel. The hole inside the valve is exactly the same size as your pipeline.

Max Flow, Zero Resistance: Because there are no narrow spots, liquid moves through perfectly smoothly. Your pumps don't have to work extra hard, and you lose zero pressure.

Best for Thick Liquids: If your liquid is thick (like sauce, paste, or gel) or contains tiny particles, this is your best choice because absolutely nothing gets stuck.

Super Easy to Clean: Since the inside is completely flat and straight, your cleaning system (CIP/SIP) can flush out old batches easily with zero dead zones.

The Trade-off: The heavy square body uses more high-grade stainless steel, making it heavier and more expensive.

2. Reduced-Bore Slope 3-Way Ball Valve

Inside this valve, the middle part (the ball) is slightly narrower than your pipe. To keep everything moving nicely, we built a smooth, gradual slope (like a small slide) connecting the middle to both ends.

100% Complete Drainage: The built-in slope design is a lifesaver. When you turn off your system or flush it, any remaining liquid naturally slides down and drains out completely. No leftover puddles or stagnant fluid inside the valve.

Great Savings (High ROI): Because the core parts are slightly smaller, the valve is lighter and much more budget-friendly. It gives you premium sanitary performance at a lower price point.

Best for Clear Liquids & Gases: Perfect for pure water, air, gases, or data center cooling fluids where a tiny change in flow width does not affect performance.

Quick Comparison Table

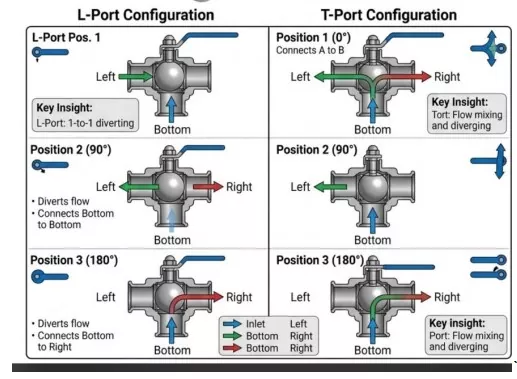

Multi-port valves allow engineers to simplify complex piping networks by replacing multiple single-direction valves with a single multi-port assembly. The Three-Way Encapsulated Clamp Three-Way Encapsulated Clamp Ball Valve is available in two distinct port configurations—L-Port or T-Port—to meet a wide variety of process fluid distribution and mixing needs.

L-Port Configuration (Diverter Valve)

The L-port design is primarily used to divert fluid from a single supply line into one of two alternative directions. When the handle or actuator turns $90^\circ$, the internal flow path switches cleanly from Outlet Port A to Outlet Port B. It is impossible to connect all three ports simultaneously in an L-port configuration, making it the ideal choice for isolating backup equipment or switching fluid paths between two separate storage tanks.

T-Port Configuration (Mixing and Blending Valve)

The T-port design offers ultimate system flexibility. It can function as a diverter valve, a mixing valve, or a fully open pass-through block. A T-port valve can connect all three pipeline ports at once, allowing you to combine two separate process streams into a single blended fluid line. Additionally, turning the valve ball allows you to isolate individual lines or maintain full three-way flow, giving your control engineers complete flexibility when designing complex fluid networks.

Frequently Asked Questions

Q: Why is an encapsulated seat necessary for high-purity processing?

A: A standard Three-Way Encapsulated Clamp Ball Valve seat only seals around the entry and exit ports, leaving a small open gap between the ball and the valve housing. Process fluid can seep into this cavity and become stagnant. An encapsulated seat completely fills this empty space, ensuring that no media can become trapped inside the valve body.

Q: Can this valve handle high-temperature steam sterilization?

A: Yes. When built with our premium TFM 1600 polymer seats, our valves operate reliably at continuous temperatures up to $180^\circ\text{C}$, making them fully compatible with standard Clean-In-Place (CIP) and Steam-In-Place (SIP) thermal cleaning cycles.

Q: Are full material traceability documents included with the shipment?

A: Yes. Every shipment includes comprehensive EN 10204 3.1 Material Test Reports (MTRs) showing the exact chemical composition and physical test data for all stainless steel parts, ensuring full traceability back to the original steel melt.

Dedicated After-Sales Service and Warranty Support

Our relationship with your team does not end once the shipment leaves our factory. We stand behind every product we build with a comprehensive support system designed to keep your production lines running smoothly:

1）Comprehensive Warranty: Every valve includes a standard 12-month structural warranty covering materials and manufacturing quality.

2）Ready-to-Ship Replacement Parts: We maintain a large inventory of replacement seat kits, stem packings, and O-rings in our warehouse, allowing us to ship maintenance parts quickly to minimize your facility's downtime.

3）Responsive Technical Support: Our experienced engineering support team is available by email or video call to assist your team with installation questions, actuator setup, or routine maintenance troubleshooting.
