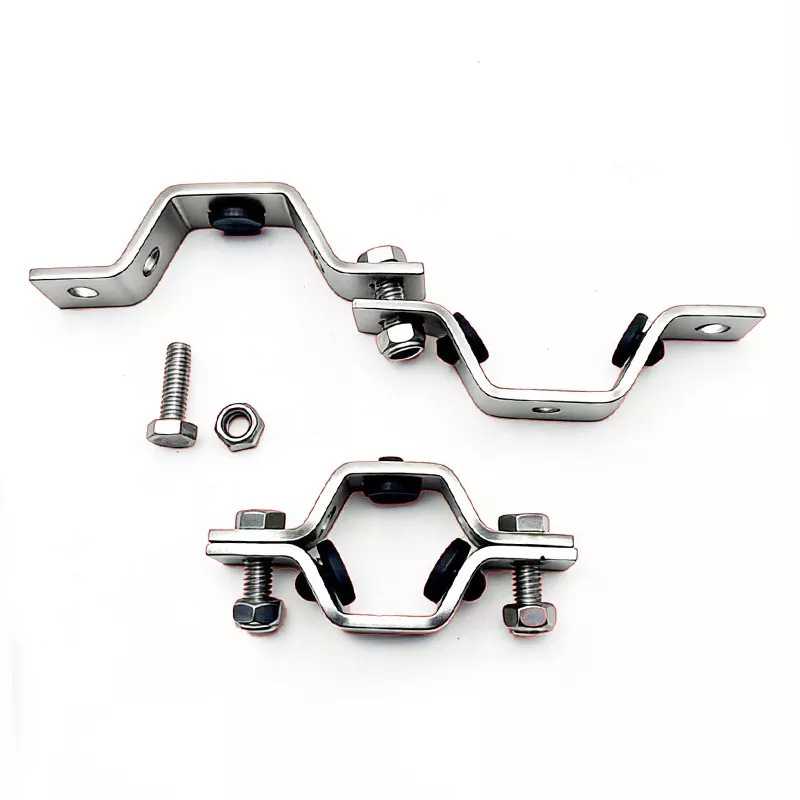

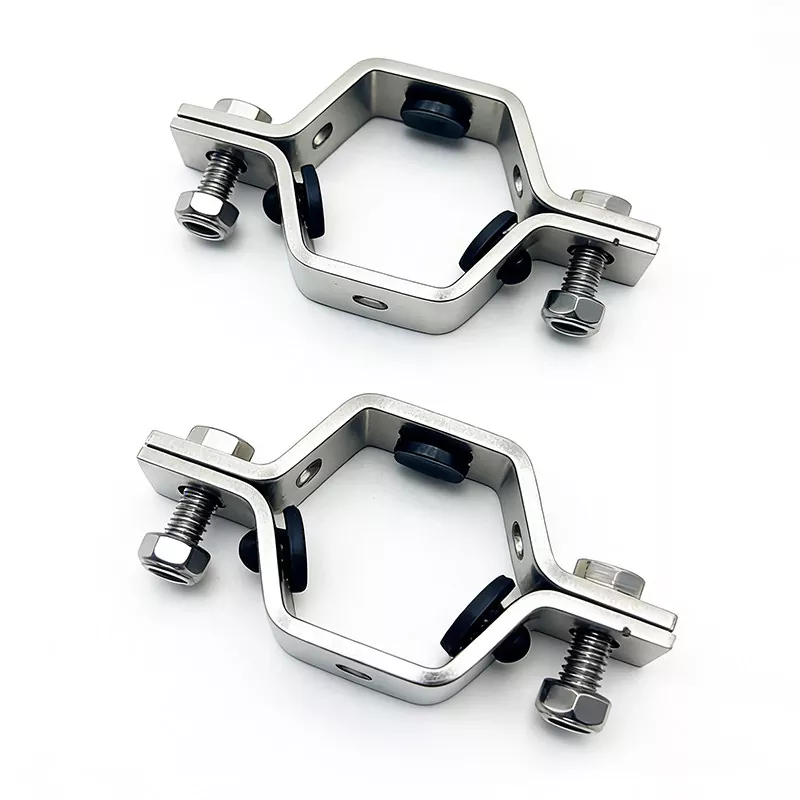

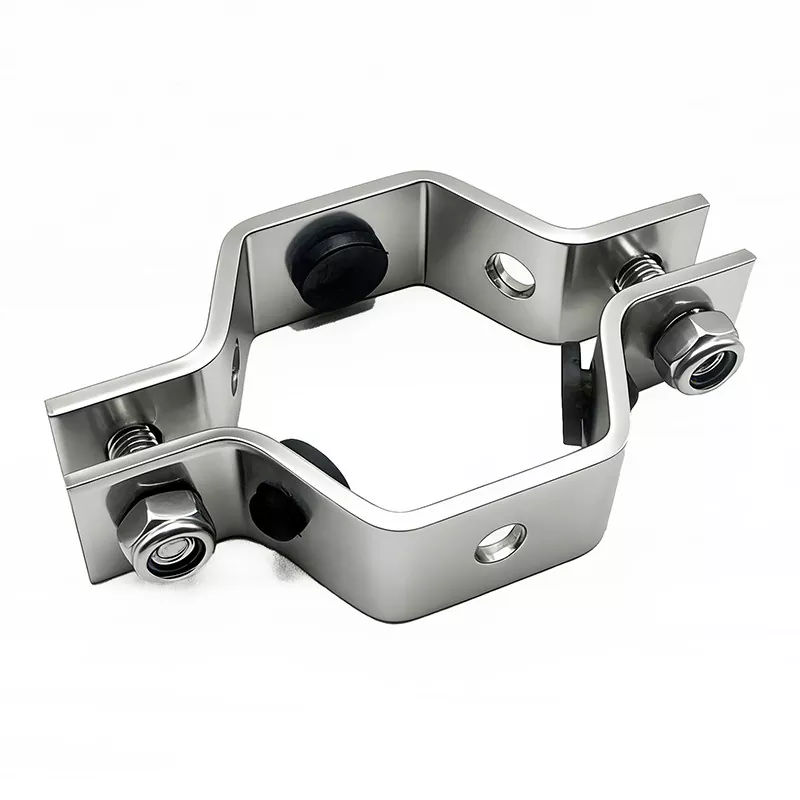

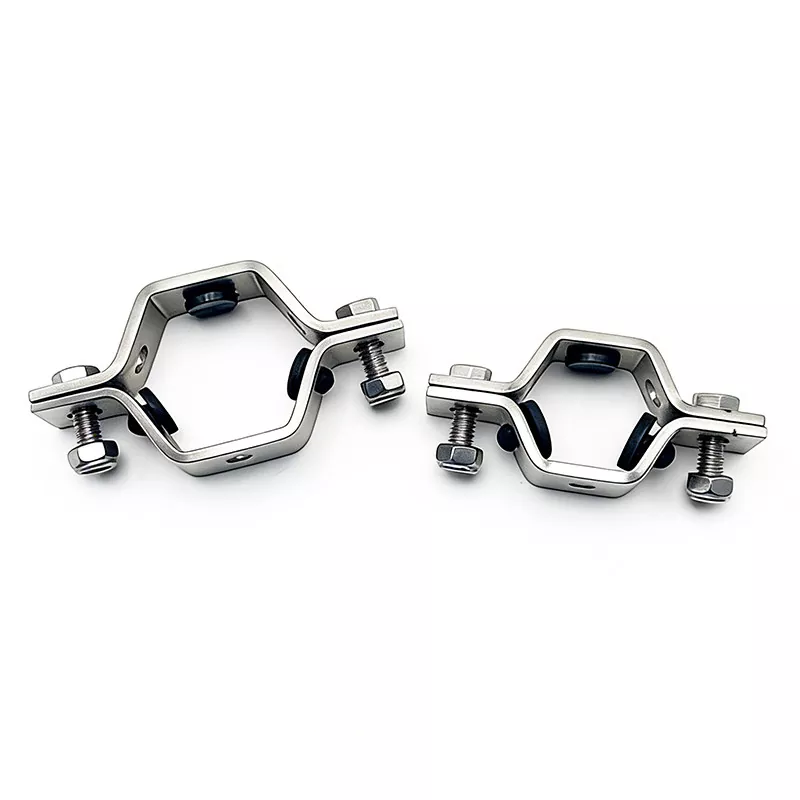

Designed for ultimate pipeline stability, our 304 Stainless Steel Hex Tube Hangers deliver exceptional clamping strength, vibration reduction, and thermal resistance. Whether you need everyday PVC protection, shock-absorbing EPDM grommets, or high-temperature Polysulfone sleeves, this system provides a secure, rust-proof fit for all standard pipe sizes from 1/2" to 12".
|
Category |
Specification Parameter |
Technical Details & Standards |
|
Dimensional Specifications |
Tube Outer Diameter (O.D.) Range |
• Standard: 1/2" to 4" (DN15 – DN100) • Extended: Up to 6" (DN150) available upon request |
|
Material Specifications |
Metallic Body & Hardware |
• Stainless Steel 304 (1.4301): Standard industrial corrosion resistance • Stainless Steel 316L (1.4404): For cleanroom, pharmaceutical & high-corrosion environments |
|
|
Grommet / Insert Materials |
• Polypropylene (PP): Standard application (Up to 100°C / 212°F) • Polysulfone (PSU) / PVDF: High temp & chemical resistance (Up to 150°C–180°C / 302°F–356°F) • Elastomers: Silicone, EPDM, Viton (FKM) for extra shock & vibration absorption |

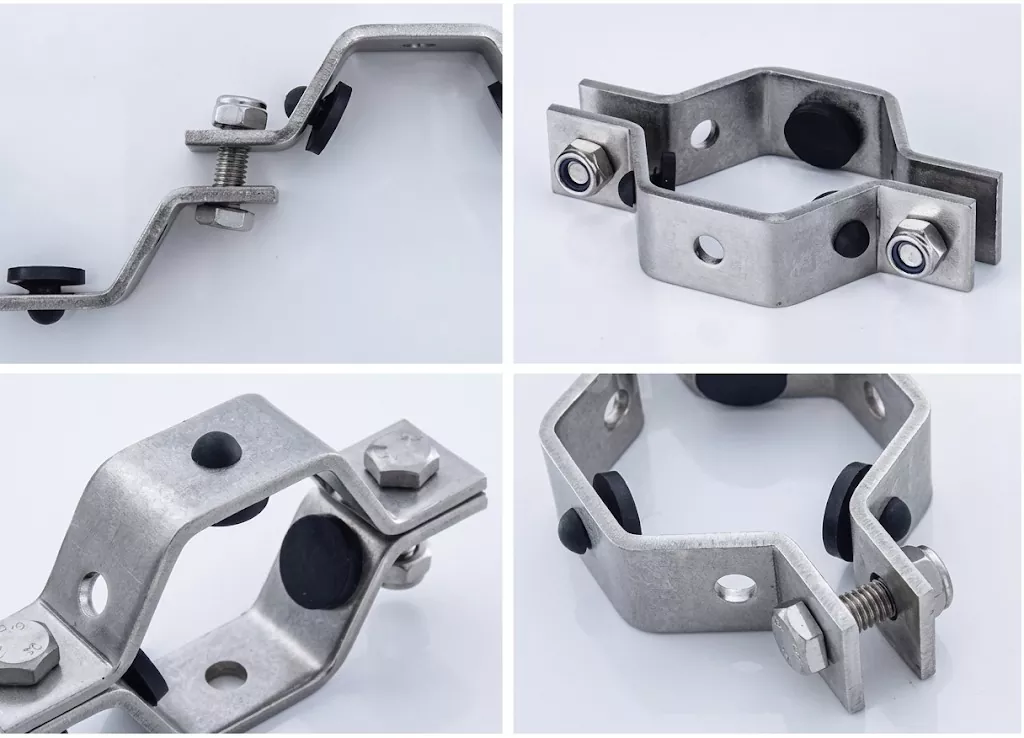

Rigid Hexagonal Design: The geometric hex shape distributes clamping pressure evenly around the pipe, preventing pipe distortion or loosening under high pressure.
Versatile Liner Options: Choose between cost-effective PVC sleeves, high-temp Polysulfone inserts, or EPDM rubber grommets depending on your operating temperature and fluid type.
Corrosion-Resistant 304 Stainless Steel: Precision-crafted from Grade 304 stainless steel to withstand harsh washout chemicals, outdoor exposure, and high humidity without rusting.
Replaceable Modular Parts: Worn-out inserts or bolts can be swapped out easily without replacing the entire hanger assembly, saving long-term maintenance costs.
Standardized Imperial Hardware: Uses heavy-duty 5/16"-18 bolts and nuts for easy tightening with common job-site tools.
Sanitary Food & Beverage Lines: Ideal for dairies, breweries, and food processing systems where cleanability and smooth surfaces are mandatory.
HVAC & Industrial Cooling: In a recent commercial liquid cooling upgrade, using our EPDM-lined HEX TUBE HANGERS reduced fluid-flow noise by over 35% across a 500-meter pipe network.
Home Plumbing & Solar Heating: Perfect for mounting water supply lines, ceiling-suspended conduits, or solar thermal piping cleanly in basements or outdoor walls.
Measure Outer Diameter: Always select the hanger based on the actual outer pipe diameter, not the nominal inner pipe size.
Avoid Over-Tightening: Tighten side bolts securely, but avoid excessive force that might crack rigid PVC sleeves.
Temperature Matching: For steam cleaning or CIP (Clean-in-Place) lines exceeding 175°F (80°C), select the 24HS High-Temp Polysulfone Series.
Direct Factory Supply: Rigorous ISO-certified quality control with factory-direct wholesale pricing.
Full Replacement Parts in Stock: We supply individual sleeves, rubber grommets, and bolt kits separately so you never have to replace whole assemblies unnecessarily.
Fast Global Logistics: Standard sizes are kept in stock for immediate dispatch via express courier or sea freight.
A: PVC sleeves provide a smooth, rigid cradle ideal for standard suspended pipes. EPDM grommets offer flexible dampening that absorbs heavy pump vibrations and thermal expansion.
A: Yes! We offer separate replacement inserts (PVCTSLV series), EPDM grommet kits (RGKIT), and bolt packs (HEX-BN) to extend the service life of your system.
A: Yes, the 304 stainless steel frame is rust-resistant and easy to clean, making it suitable for food, beverage, and pharmaceutical facilities.

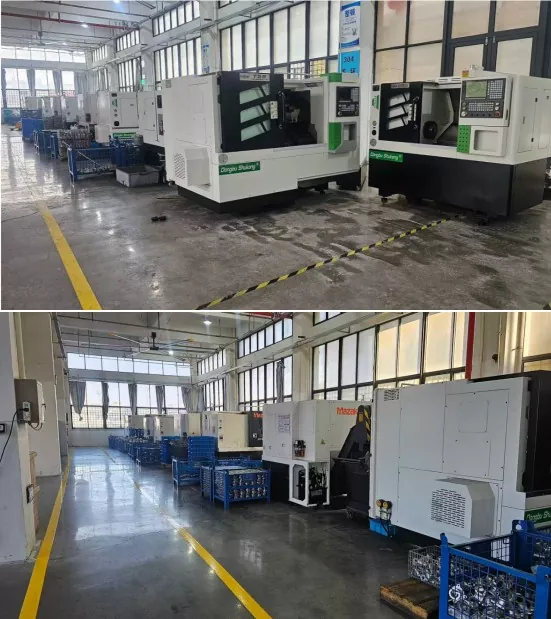

You don't need to be an engineer to see the quality here. A clean workshop and automated machines mean less waste, fewer mistakes, and better products for you. Our fittings are made to American standards, ensuring they handle wear and tear easily. Make your next project a breeze with our premium hardware.
Whether it is high-precision cooling for tech servers, robust lithium battery production, or strict sanitary food handling, our parts deliver results. We are proud to provide certified stainless steel solutions to top-tier brands globally. Bring the ultimate peace of mind and verified material strength to your operation today.

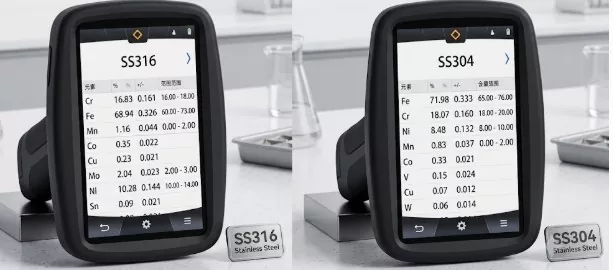

What you see is exactly what you get. Every batch of metal is verified twice: first as raw inventory, and second during final shipping preparation. Our precise testing equipment guarantees that all elements match standard SS304 and SS316 guidelines perfectly. Build with confidence knowing your hardware is built from authentic, premium alloy.
