Many industrial components are supplied with standard threaded connections, while hygienic processing systems are commonly built around Tri-Clamp piping. When these two systems need to work together, replacing existing equipment is often unnecessary.
DINGYUE 22MP Female NPT Adapters create a direct interface between Tri-Clamp pipelines and Male NPT components. The design helps engineers integrate valves, instruments, and auxiliary equipment into sanitary systems while keeping installation simple and maintenance efficient.
|
Category |
Key Specifications / Options |
Application & Features |
|
Product Type / Part No. |
• 22MP (Tri-Clamp x Male NPT Thread Adapter) |
Enables a leak-resistant transition between sanitary Tri-Clamp systems and threaded piping, sensors, or auxiliary equipment. |
|
Material Grade |
• 316L Stainless Steel (1.4404) • 304 Stainless Steel (1.4301) |
316L: Preferred for biopharm, high-purity fluids, and liquid cooling lines due to low carbon content and higher corrosion resistance. 304: Standard commercial grade for food, beverage, dairy, and general processing. |
|
Thread Connection |
• Male NPT (ANSI/ASME B1.20.1) • Precision-machined tapered threads |
Ensures tight engagement and reliable sealing when combined with thread sealant (PTFE tape/paste) or mated with female NPT components. |
|
Machining Profile |
• Machined from solid forged bar stock • Available with or without wrench flats / hex body |
Wrench flats/hex body allow secure tightening with standard tools without damaging the sanitary clamp flange face. |
|
Standards & Compliance |
• 3-A Sanitary Standards (63-04 Certification) • ASME BPE compliant • FDA 21 CFR 177.2600 & USP Class VI (for gaskets) • Traceability: Mill Test Report (MTR) with heat number tracking |
Fully certified for hygienic processing, guaranteeing material composition compliance and global interchangeability. |
A sanitary piping project may include components from different suppliers, and connection standards are not always consistent.
The 22MP Female Npt Adapters provide a transition point between Tri-Clamp piping and Male NPT components, helping contractors integrate new equipment into existing systems without major pipeline changes.
The optional hex body allows installers to apply proper tightening force with standard tools while protecting the clamp connection area.
This design is especially useful during equipment assembly, replacement, and field maintenance where installation efficiency matters.
Compared with permanent welded modifications, a clamp-based adapter allows easier replacement and future system adjustments.
For process engineers, this means less downtime when adding instruments, changing equipment layouts, or upgrading fluid circuits.

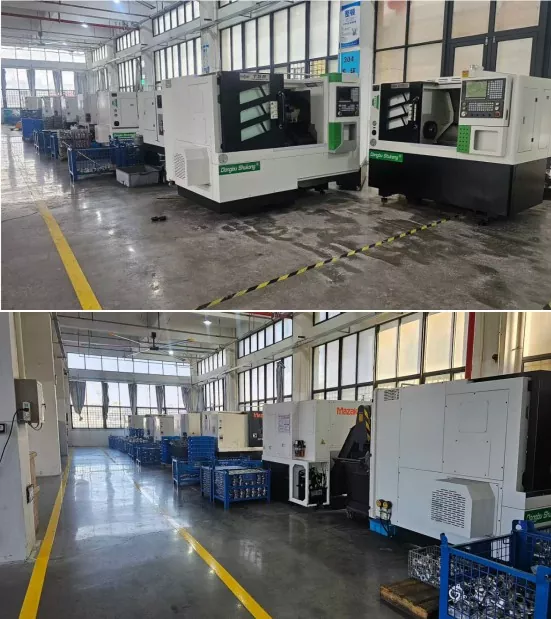

DINGYUE produces 22MP Female NPT Adapters through precision CNC machining to maintain consistent thread accuracy and connection dimensions.
304 and 316L stainless steel materials are carefully controlled during production. For applications requiring traceability, material certificates and inspection documentation are available to support project requirements.

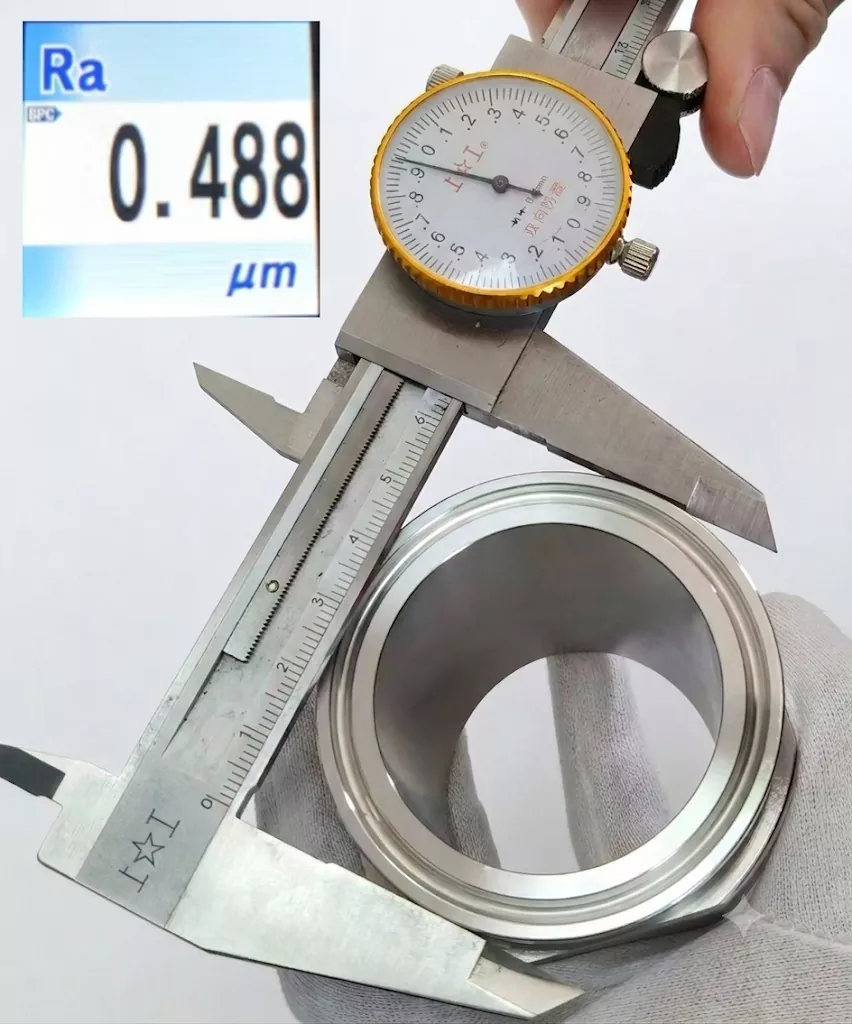

Before shipment, each adapter is inspected for:
· Thread accuracy
· Clamp dimension
· Surface condition
· Material consistency
DINGYUE controls machining quality and surface requirements to ensure stable sealing performance when matched with suitable gaskets and clamps.
It connects Male NPT threaded components with Tri-Clamp sanitary piping systems, allowing different connection standards to work together.
The difference is the thread connection direction. 21MP uses a Male NPT thread, while 22MP provides a Female NPT threaded connection for receiving Male NPT components.
304 is suitable for general food and industrial applications. 316L is recommended for pharmaceutical, high-purity, and corrosion-sensitive environments.
Yes. Custom thread sizes, clamp dimensions, materials, and surface finishes can be produced according to project requirements.
Yes. They are commonly used in modular cooling assemblies to connect threaded equipment components with Tri-Clamp piping networks.
