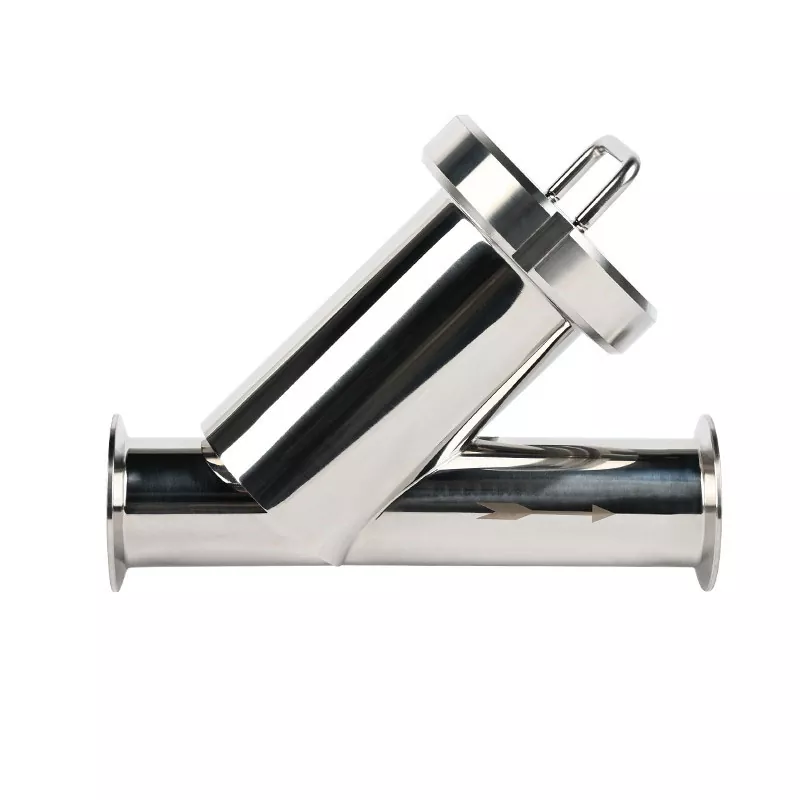

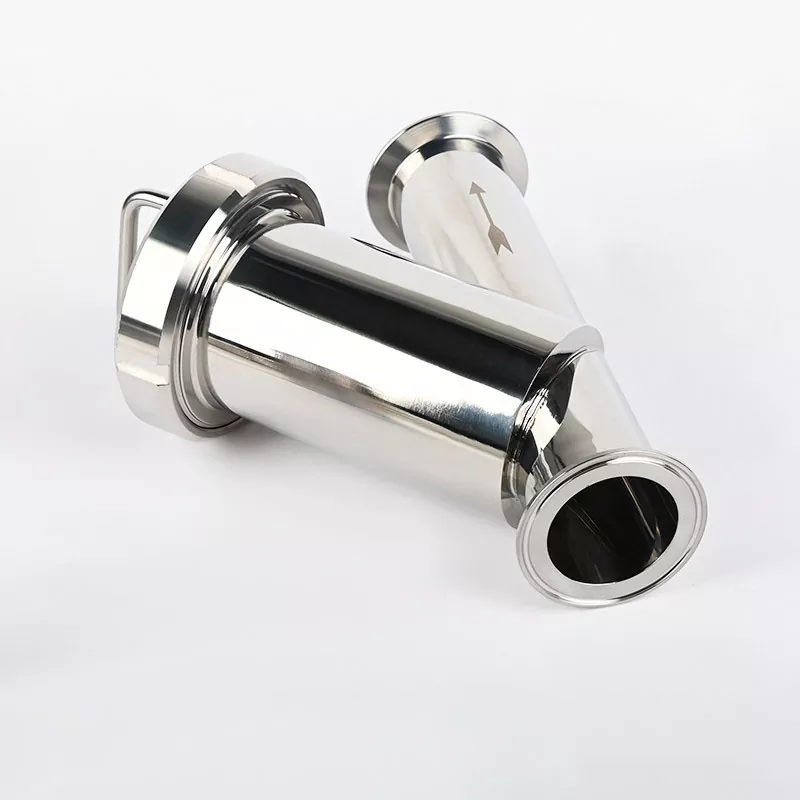

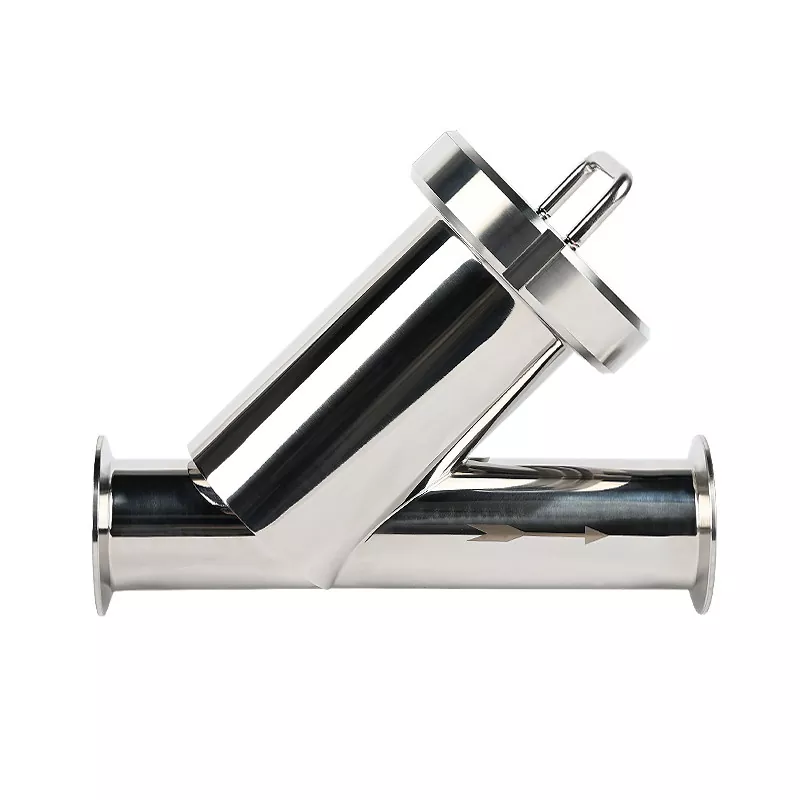

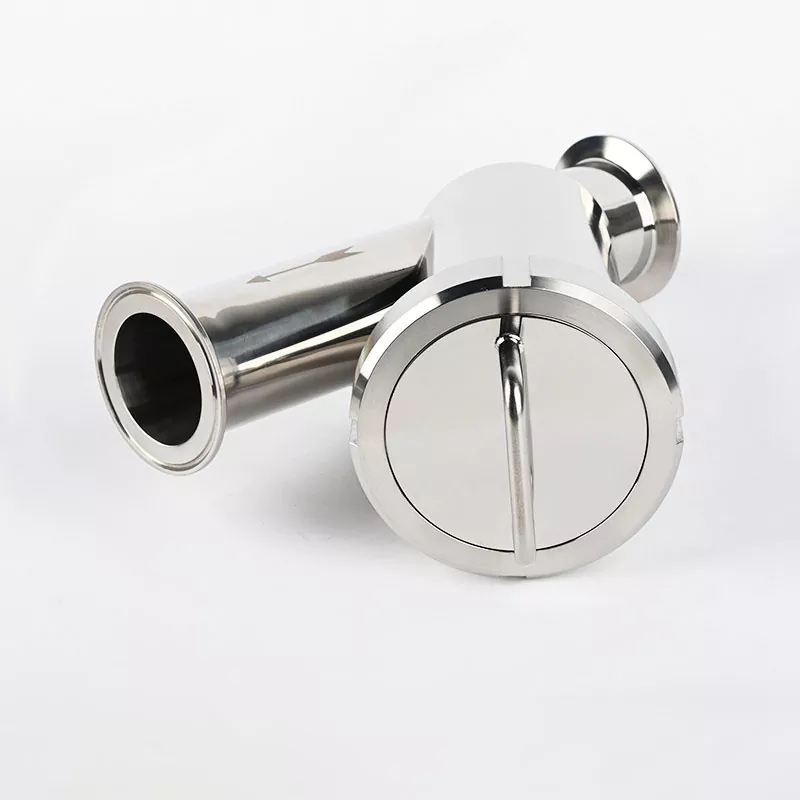

Sanitary Y Strainer

Ensure product purity with our Sanitary Y strainer. Featuring a compact Y-shaped body and a heavy-duty stainless steel filter element, they deliver excellent mechanical filtration for viscous or clear liquids. Fully CIP/SIP compatible and ideal for brewery, beverage, and biopharma lines.

Technical specification

Diverse Industry Applications

The compact, streamlined design of the Sanitary Y strainer makes it a versatile choice across a broad spectrum of high-purity processing environments:

Food & Dairy: Filtering pulp, seeds, and coagulated solids in juices, milk, syrup, and sauce processing lines.

Brewing & Beverage: Trapping hop remnants, fruit skins, and yeast clusters during transfer and bottling operations.

Biopharm & Cosmetics: Removing agglomerates from lotions, active pharmaceutical ingredients (APIs), and utility fluid lines.

Data Center Liquid Cooling: Serving as a secondary loop filter in CDU systems to protect microchannel cold plates from debris.

Installation, Operation & Maintenance

Maximizing filter longevity and operational efficiency requires attention to proper installation and routine servicing:

Installation Direction: Always align the body arrow with the fluid flow direction. In horizontal lines, position the Y-leg pointing downwards to allow trapped debris to settle naturally into the collection cavity.

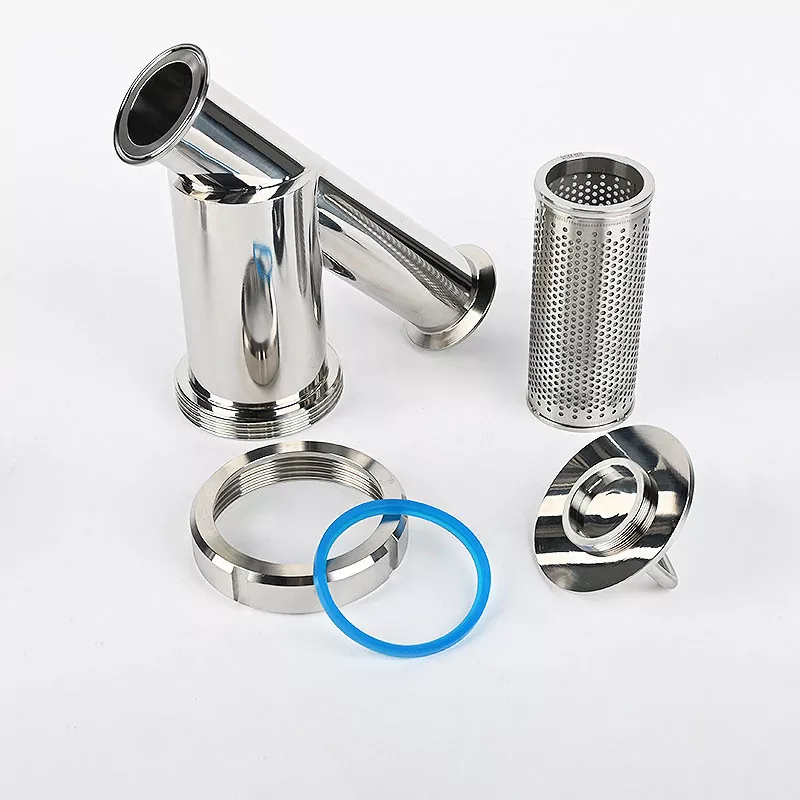

Cleaning & CIP: To clean the basket, isolate the line, vent the internal pressure, and remove the end cap. The filter element can be rinsed manually or cleaned in place (CIP) during scheduled sanitation runs.

Preventive Monitoring: Installing differential pressure gauges across the Sanitary Y strainer provides clear visual feedback on mesh clogging, allowing operators to schedule maintenance before line flow is restricted.

Frequently Asked Questions

Q1: Can a Y-type strainer be installed on vertical piping?

A: Yes, it can be installed on vertical lines provided the fluid flow is downward. This ensures gravity helps direct trapped particulates into the collection leg rather than falling back into the main stream.

Q2: Why is the Sanitary Y strainer considered the most versatile choice?

Answer: The Y-strainer is an industry-standard design capable of handling both low-viscosity clear liquids and high-viscosity fluids (like syrups or creams). Its popularity makes it easy to source, highly reliable, and very budget-friendly for general food and beverage production lines.

Q3: Can you provide material certificates for pharmaceutical projects?

Answer: Yes, we provide full EN 10204 3.1 material traceability certificates (MTR) upon request. We can also provide surface roughness certificates to prove our internal polishing meets strict pharmaceutical and biotech standards.

Q4: How do I choose the correct mesh size?

Answer: It depends on the size of the particles you want to remove and the type of equipment you are protecting. For example, a 20 to 40 mesh is excellent for protecting heavy pumps from large debris, while a finer 100 to 200 mesh is ideal for safeguarding high-pressure homogenizers or heat exchangers.
