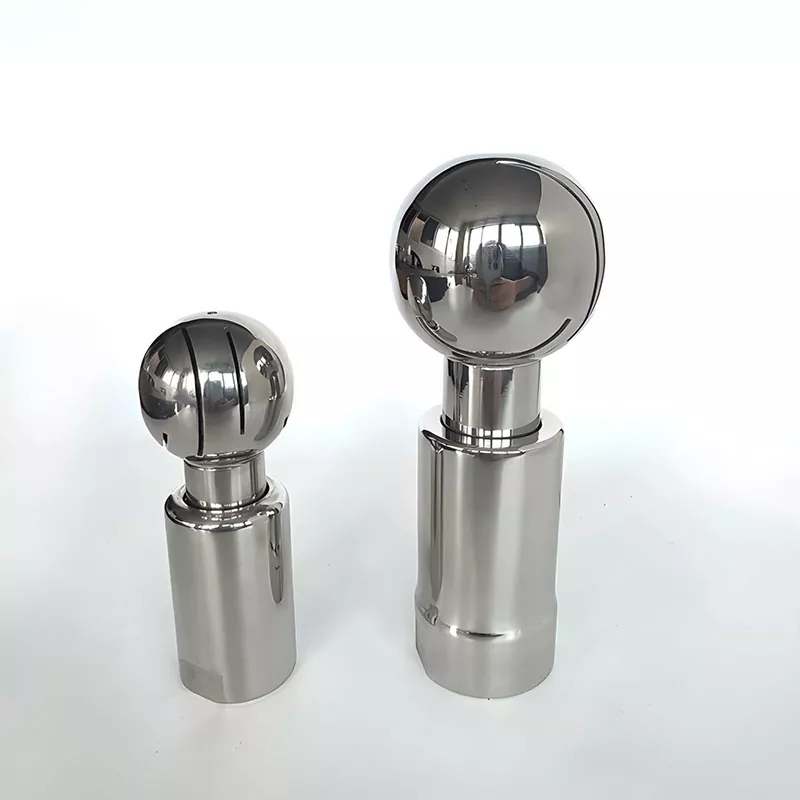

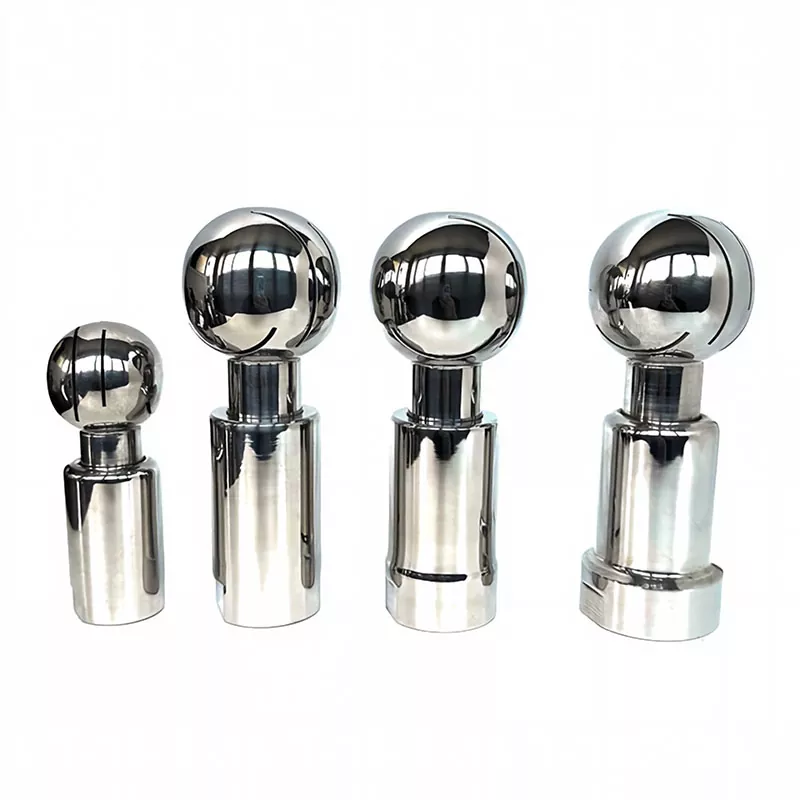

Maximized cleaning efficiency with our rotary sanitary cleaning balls. Driven by the cleaning fluid, these sanitary cleaning ball deliver high-impact, 360-degree coverage for thorough CIP cycles. Ideal for removing stubborn residues in food, dairy, and pharma tanks.
|
Parameter |
Standard Specification |
Options / Customization |
|
Connection Types |

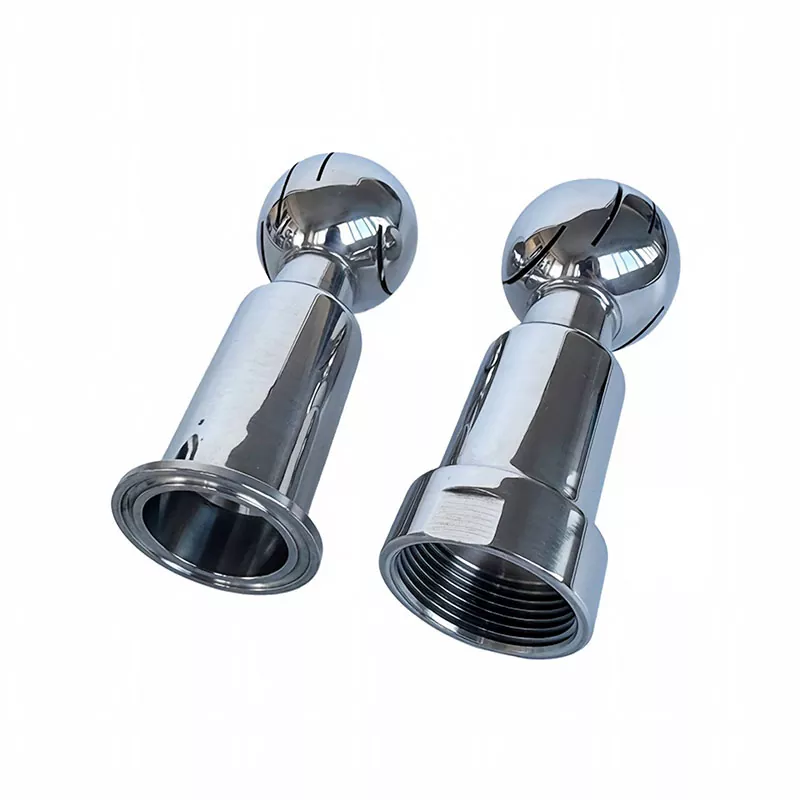

Tri-Clamp (Quick-install), Slip-on (Pin/Clip), Threaded (BSP/NPT), Weld-on |
— |
|
Spray Coverage |
360° Full Spray |
180 °Downward / 270°Upward |
|
Operating Pressure |
1.5 - 3.5 Bar (21.7 - 50.7 PSI) |
Note: Excess pressure may cause too rapid rotation, reducing impact. |
|
Cleaning Radius |
1.2 meters to 5.0 meters (Based on model and pressure) |
Max. wet radius up to 5.5 meters |
|
Max. Working Temp. |
90°C (Continuous operation) |
Max. ambient temperature up to 140°C (SIP) |

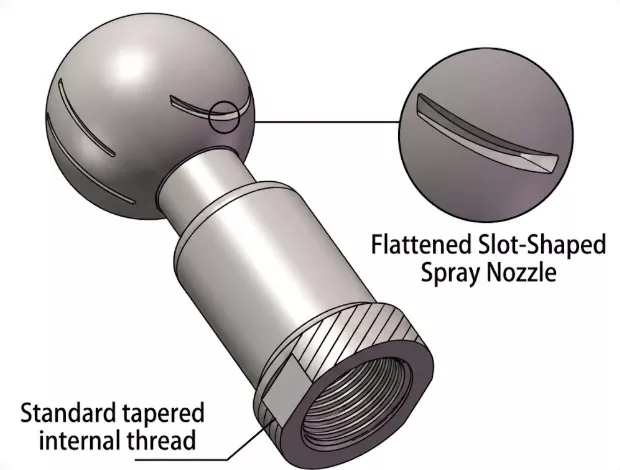

NPT Connection Interface:Designed with an American standard National Pipe Tapered (NPT) female internal thread(for robust and standard-compliant connectivity.

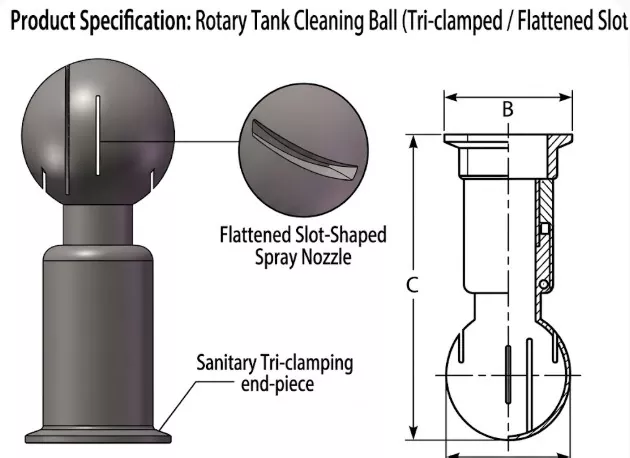

Flattened Slot-Shaped Nozzles:Utilizes a special flattened slot-shaped nozzle design to produce wide,forceful flat fan or jet spray patterns.
Specialized for Viscous and Difficult Materials:Specifically engineered for tanks and containers storing high-viscosity materialsor surfaces that are difficult to clean.
Pressure-Dependent High-Speed Rotation and Mist Creation: Rotation speed is directly dependent on inlet pressure.
Higher pressures generate higherrotation speeds, creating smaller, mist-like droplets for a powerful scrubbing effect.
Enhanced Cleaning Efficiency:Significantly reduces cleaning times and improves overall cleaning results compared to Rotary Sanitary Cleaning Ballmodels
Inlet Pressure: Ensure working pressure stays between 1.5 and 3.0 bar for optimal rotation speed and spray impact.
Line Filtration: Install a 60–80 mesh filter upstream to prevent debris from clogging the rotating bearings or slot nozzles.
Mounting Orientation: Works effectively in vertical downward, upward, or horizontal orientations.

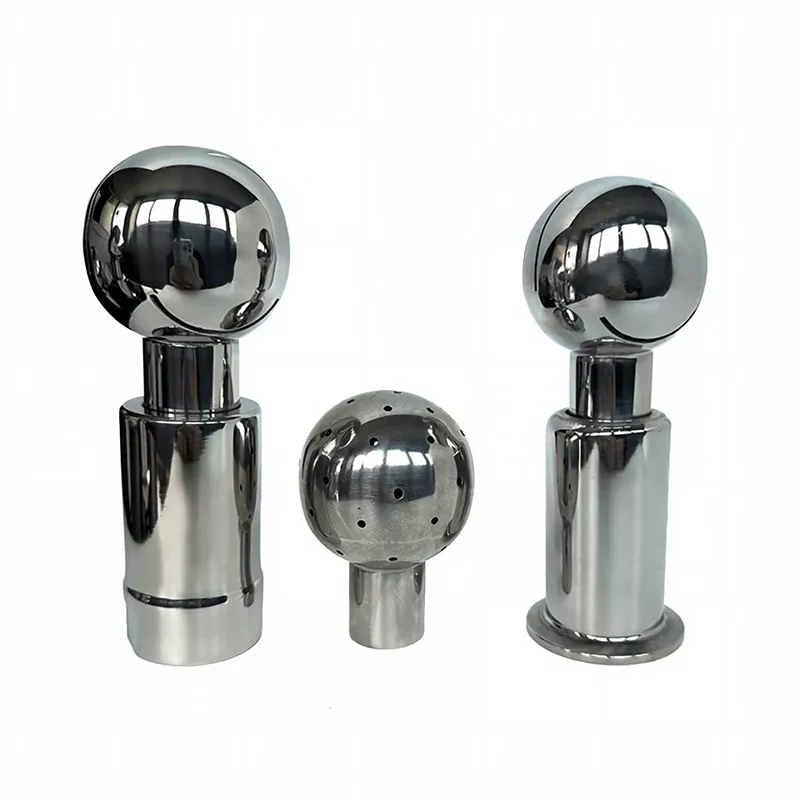

Rotary Spray Balls use rotating flat-fan jets for strong mechanical impact, making them ideal for heavy residues, viscous liquids, and quick CIP cycles.
Static Spray Balls use rinsing action and are best for light rinsing or small tanks where lower pressure/impact is sufficient.
No. It is 100% fluid-driven. The flow and pressure of your cleaning liquid naturally drive the rotation.
Yes. We offer custom connection sizes, thread specifications, and surface finish options upon request.
From high-purity pharma specs to heavy-duty liquid cooling systems, world-class brands rely on our engineering excellence. Having served leaders like HPGC and Yanjing Beer, we deliver ASME BPE compliant hardware built to withstand critical, high-sanitary process environments.
