In many fluid processing systems, operators need to check the condition of the media without stopping production or opening the pipeline. A sanitary sight glass provides a direct viewing point, allowing users to observe liquid flow, color changes, bubbles, and possible contamination during operation.

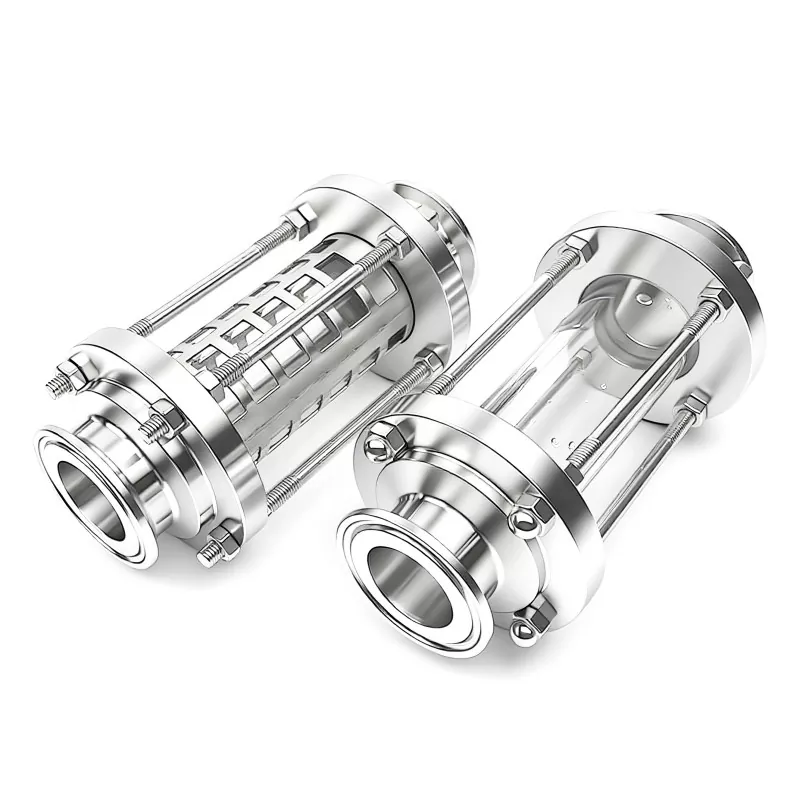

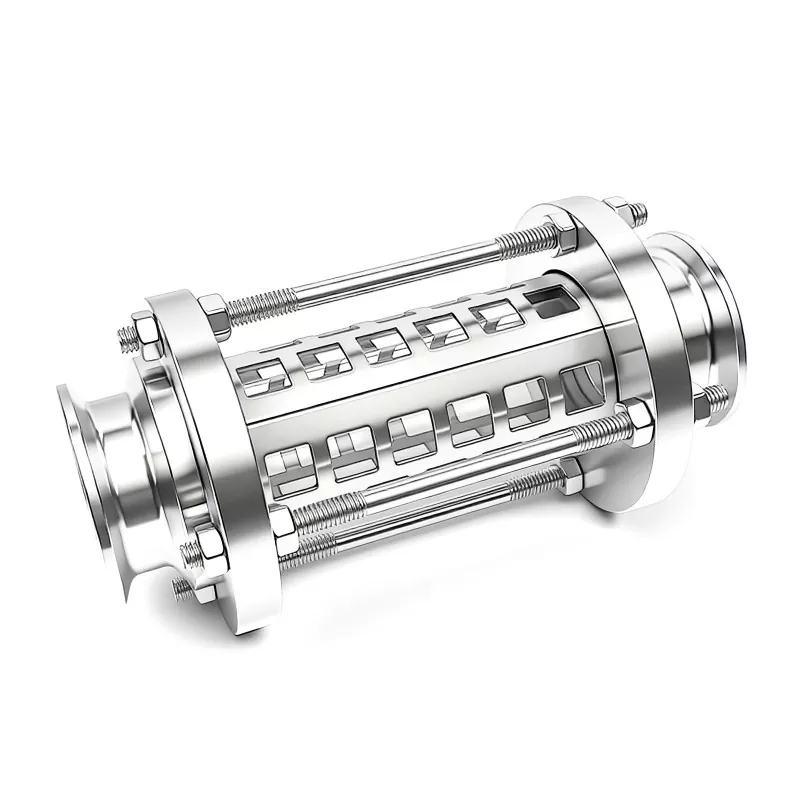

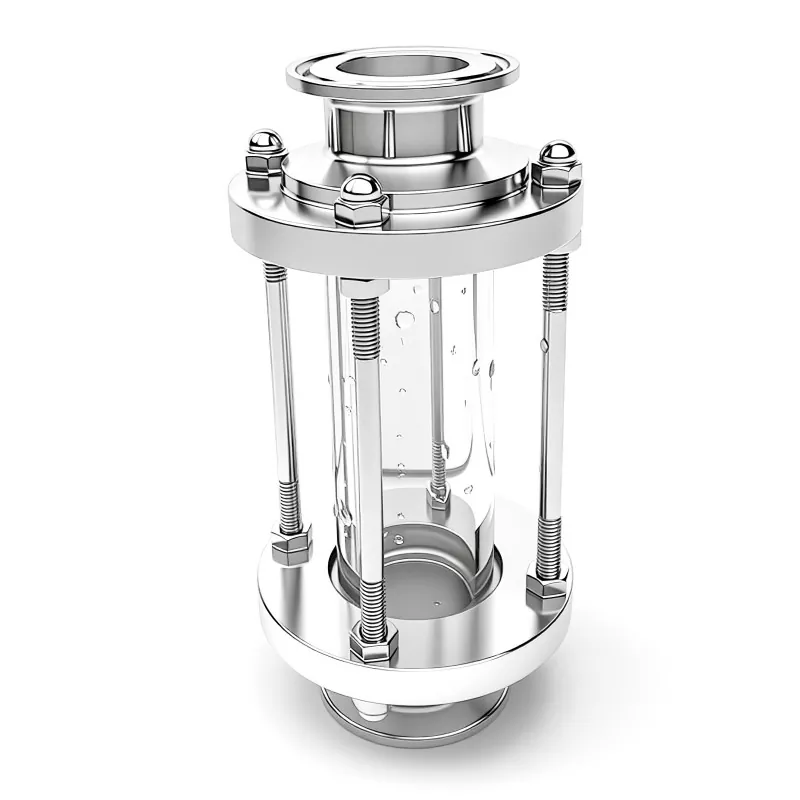

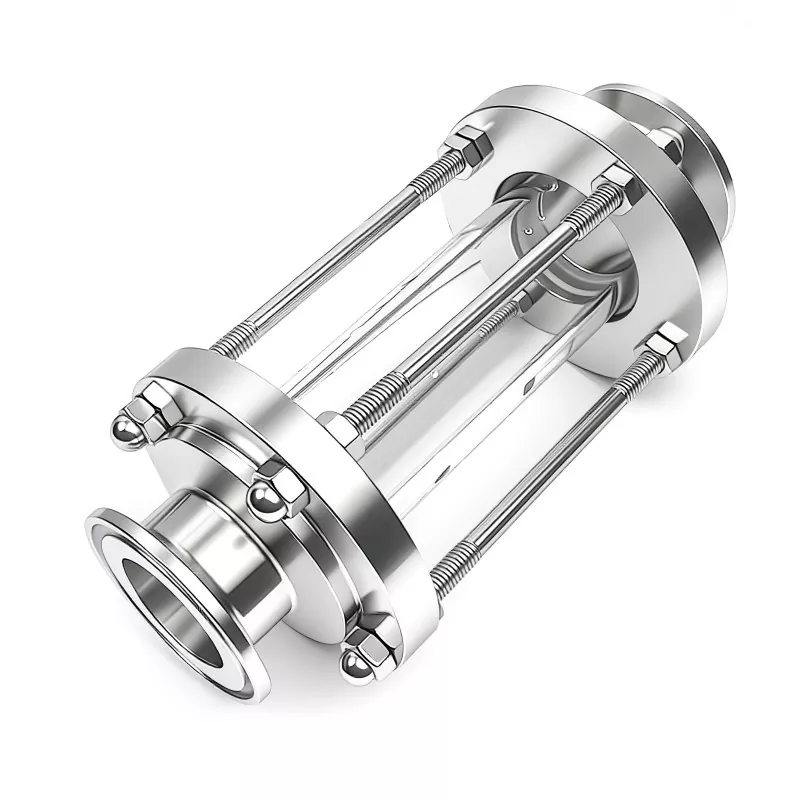

The Sanitary Tri-Clamp Sight Glass works through a sealed glass viewing section installed between two sanitary pipeline connections. The stainless steel housing holds the borosilicate glass securely, while the gasket system creates a hygienic seal between the glass and connection parts. With Tri-Clamp connections on both ends, the unit can be quickly removed for cleaning, inspection, or replacement without complicated disassembly.
Available in 304 and 316L stainless steel, DINGYUE sight glasses are manufactured for applications where cleanability, corrosion resistance, and reliable visual inspection are required.
|
Comparison |
Sanitary Tri Clamp Sight Glass |
Ordinary Sight Glass |
|
Main Purpose |
Designed for hygienic pipeline monitoring and clean processing systems |
Mainly used for basic visual observation in general industrial lines |
|
Connection Method |
Tri-Clamp connection for quick installation and removal |
Usually threaded, flanged, or fixed connections |
|
Internal Design |
Smooth internal surface with reduced dead space |
May contain threaded areas or uneven internal structures |
|
Cleaning Method |
Supports CIP cleaning and frequent maintenance |
More difficult to clean in repeated production cycles |
|
Material Options |
304 / 316L stainless steel with hygienic finishing |
Common carbon steel or standard stainless steel options |
|
Sealing System |
Food/pharma-grade gasket sealing structure |
General industrial sealing design |
|
Maintenance |
Easy replacement of glass and gasket components |
Usually requires more time for servicing |
|
Typical Use |
Food, beverage, pharmaceutical, biotech, high-purity systems |
General industrial pipelines |
|
Parameter |
Specification |
|
Product Name |
Sanitary Tri Clamp Sight Glass |
|
Material |
Stainless Steel 304 / 316L (1.4301 / 1.4404) |
|
Glass Material |
Tempered Borosilicate Glass |
|
Connection Type |
Tri-Clamp / Tri-Clover |
|
Available Sizes |
1/2" to 6" (custom sizes available) |
|
Gasket Options |
EPDM / PTFE / Silicone / FKM |
|
Working Pressure |
Up to 10 Bar (145 PSI), depending on size and configuration |
|
Temperature Range |
-20°C to +150°C |
|
Surface Finish |
Internal Ra ≤0.4 μm (hygienic finish available) |
|
Standard Compliance |
3-A Sanitary Standards, ASME BPE, FDA compliant gasket materials |
|
Application |
Sanitary fluid pipelines, process equipment, high-purity systems |
The transparent borosilicate glass section allows operators to check fluid conditions directly during operation. Changes in liquid appearance, flow stability, or air bubbles can be identified quickly without opening the system.
Unlike fixed connection designs, the Tri-Clamp structure allows the sight glass to be removed by releasing the clamp. This reduces maintenance time when cleaning, replacing seals, or inspecting internal conditions.
The internal surface is machined and polished to reduce residue retention. The smoother flow path helps minimize areas where product deposits or contaminants may accumulate.
Different gasket materials, connection sizes, and stainless steel grades are available to match different fluid characteristics and operating conditions.
A sight glass needs to handle both visual inspection and continuous pressure from the pipeline. DINGYUE uses high-strength borosilicate glass with good thermal shock resistance to improve durability during temperature changes and cleaning cycles.
The sealing system is designed around precision-matched glass, gasket, and stainless steel components. Available gasket materials such as EPDM, PTFE, Silicone, and FKM allow customers to select suitable sealing performance according to different media and operating environments.
Before shipment, each sight glass is inspected for dimensional accuracy, sealing condition, material quality, and surface finish to ensure stable performance after installation.

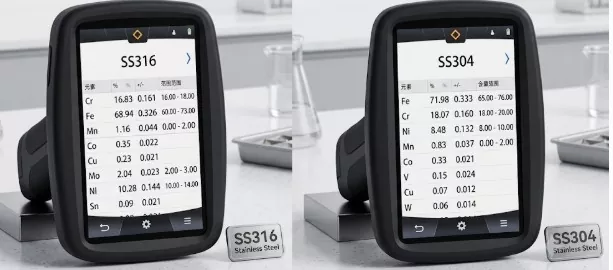

The material grade affects corrosion resistance and service life.
304 stainless steel is commonly selected for general food and beverage systems.
316L stainless steel is preferred when the pipeline handles corrosive media, pharmaceutical fluids, or high-purity applications.
The correct size should be based on the sanitary tube OD and Tri-Clamp standard, rather than only the nominal pipe size.
Before ordering, confirm:
· Tube outside diameter
· Clamp specification
· Installation space
Different fluids require different sealing materials.
EPDM is suitable for water-based and general processing fluids.
PTFE provides better chemical resistance for demanding applications.
FKM is often selected for higher temperature or oil-contact environments.
Used for checking liquid appearance, flow condition, and abnormal particles during milk, juice, and beverage transfer.
Applied in clean fluid systems where visual monitoring and hygienic maintenance are required.
Helps operators monitor product flow and maintain stable production conditions.
Suitable for observing liquid transfer, mixing processes, and pipeline conditions.
Used in specialized cooling loops to monitor coolant circulation and identify abnormal flow conditions.
