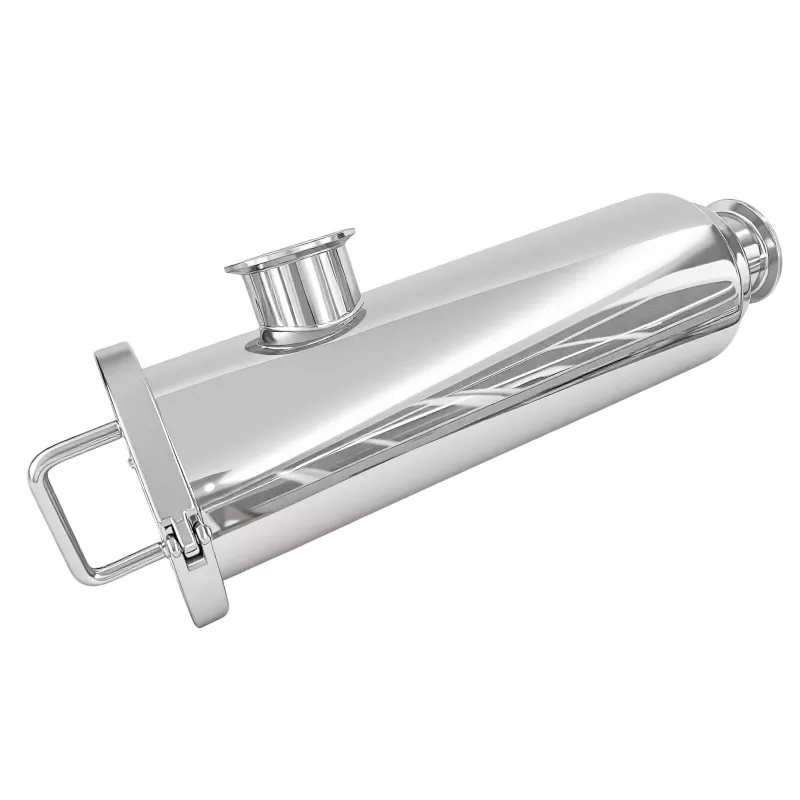

Angle Type Tri-Clamp Strainer

Optimize your pipeline layout with our Angle Type Tri-Clamp Strainer The unique 90-degree inlet/outlet design fits perfectly into tight spaces or corners while ensuring excellent filtration and low pressure drop. Highly polished stainless steel ensures no product buildup.

Technical specification

Compact 90° Filtration Design for Hygienic Process Piping

In compact sanitary piping systems, installation space around pumps, tanks, and processing equipment is often limited. Traditional straight strainers usually require additional elbows or fittings to complete the pipeline layout, increasing installation complexity and maintenance points.

DINGYUE Angle Type Tri Clamp Strainer combines filtration and 90-degree flow direction change in one integrated design. The side inlet and vertical outlet configuration helps engineers optimize tight pipeline layouts while providing reliable particle removal for hygienic fluid systems.

Manufactured from SS304 or SS316L stainless steel, this sanitary strainer features a smooth internal surface, removable filter element, and tri clamp connection for fast inspection and cleaning. It is widely applied in food processing, pharmaceutical systems, beverage production, high-purity fluid handling, and liquid cooling applications where clean flow and easy maintenance are required.

Space-Saving 90° Design for Simplified Pipeline Installation

Pipeline arrangement can become challenging when equipment connections are located close to walls, frames, or other components. A conventional inline strainer may require extra elbows, increasing the number of connection points and potential maintenance areas.

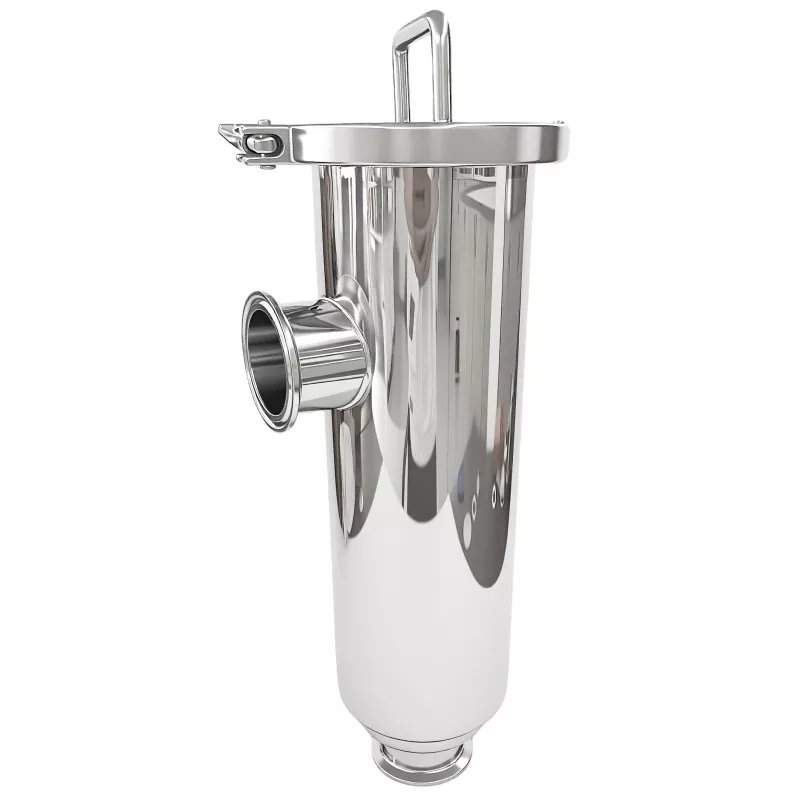

The 90-degree angle structure allows the strainer to redirect fluid flow while filtering particles at the same time.

Key benefits include:

· Reduced installation space compared with straight strainer combinations

· Fewer additional elbows and fittings required

· Easier integration into compact equipment layouts

· Suitable for pump inlet protection and skid-mounted systems

For equipment manufacturers and system integrators, this design helps simplify piping layouts without compromising filtration performance.

Hygienic Stainless Steel Construction for Clean Fluid Handling

DINGYUE Angle Type Tri Clamp Strainers are designed for applications where fluid cleanliness and material reliability are important.

Available materials include:

· SS304 (1.4301)

· SS316L (1.4404)

The internal surfaces are precision finished to minimize product retention and support hygienic operation. The smooth stainless steel construction helps reduce contamination risks and provides long-term corrosion resistance in demanding process environments.

For pharmaceutical, food, and high-purity applications, material traceability and surface quality play an important role in maintaining consistent production standards.

Easy Filter Access Reduces Maintenance Downtime

Regular cleaning is essential for any filtration component. A difficult-to-access filter housing can increase downtime and complicate routine maintenance.

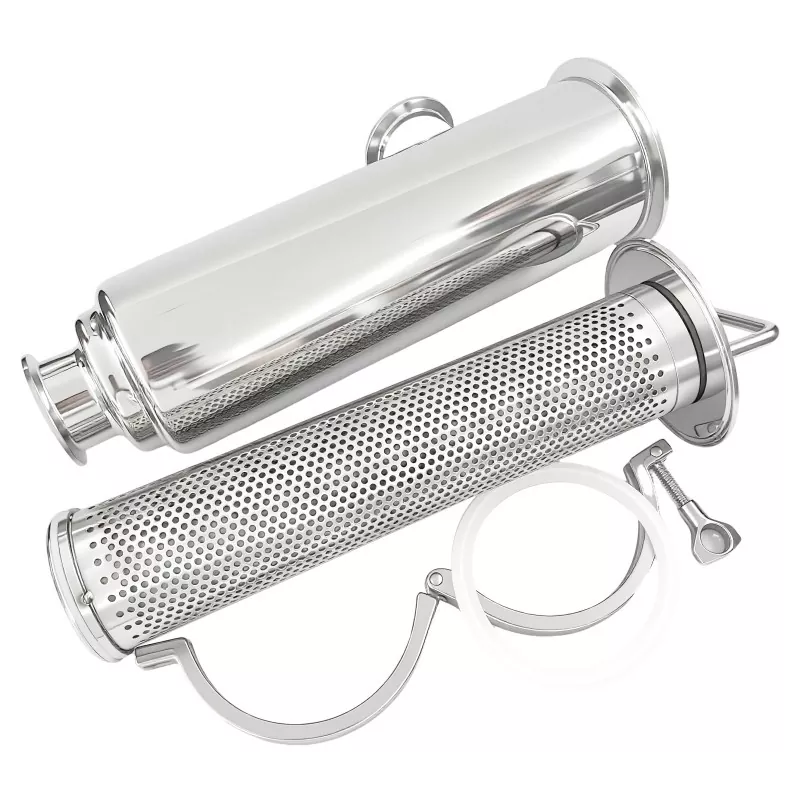

The Angle Type Tri Clamp Strainer is designed with a removable filter element that allows operators to complete inspection and cleaning efficiently.

Maintenance advantages include:

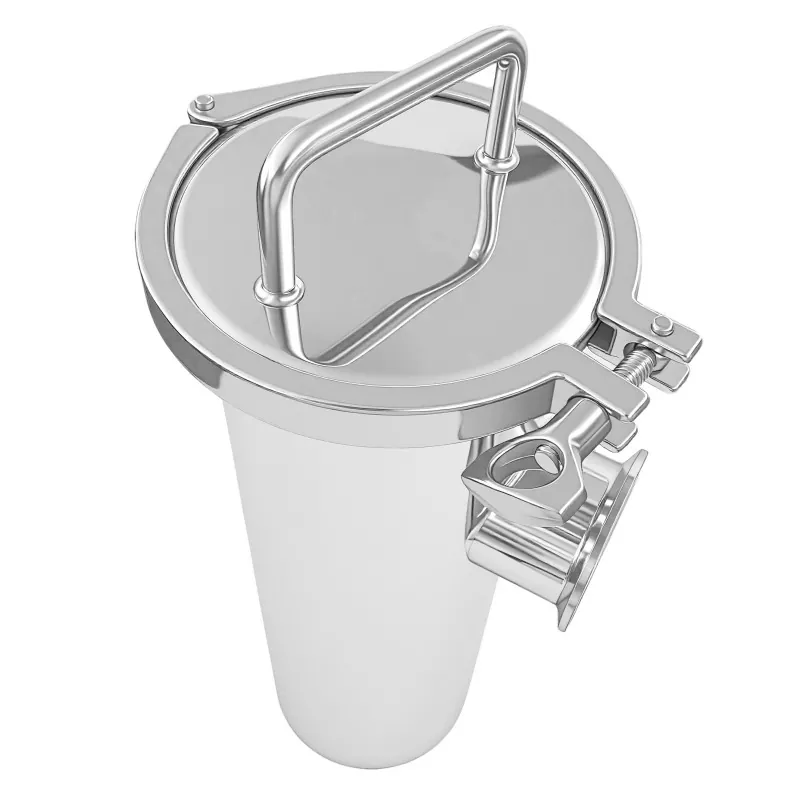

· Tri clamp connection for quick disassembly

· Filter screen removal without replacing the complete unit

· Simple cleaning during routine maintenance

· Compatible with manual cleaning and CIP procedures

Installing pressure monitoring points before and after the strainer can help operators identify increasing differential pressure and schedule cleaning before affecting process flow.

Flexible Filtration Options for Different Process Requirements

Different production systems require different filtration levels depending on fluid characteristics and equipment protection requirements.

DINGYUE supplies customized filter elements according to application needs:

· Stainless steel wedge wire screen

· Perforated plate with wire mesh cloth

· Different mesh and micron ratings

Available filtration options:

· 30 mesh

· 50 mesh

· 100 mesh

· 200 mesh

· 300 mesh

Custom filter specifications are available for projects requiring specific particle removal performance or flow conditions.

OEM Customization for Equipment Manufacturers

Different processing systems often require different connection sizes, filter ratings, and installation dimensions.

DINGYUE provides customization support including:

· Customized mesh or micron ratings

· Special connection designs

· OEM dimensions

· Customized surface finishes

· Project-based component solutions

Our engineering team works with equipment manufacturers, contractors, and distributors to develop sanitary filtration components suitable for specific applications.

Frequently Asked Questions

Q1: How does this model compare to an inline or Y-type strainer?

A: While an inline strainer keeps the pipe straight and a Y-strainer handles diagonal flow, an Angle-type tri clamp strainer redirects the fluid by 90 degrees, making it perfect for corner installations where space is limited.

Q2: Can I order custom mesh sizes for specific fluid viscosities?

A: Yes, we offer a wide range of micron ratings and mesh configurations tailored to your specific process needs, whether for light liquids or high-viscosity pastes.

Q3: Does the Angle-type tri clamp strainer cost more than a standard straight strainer?

Answer: The initial cost of an angle-type strainer is slightly higher due to its 90-degree fabricated body. However, because it can replace a 90-degree pipe elbow in your system, it saves you the cost of buying an extra fitting, making it a highly cost-effective solution for pipeline corners.

Q5: Are the gaskets for your Angle-type tri clamp strainer FDA approved?

Answer: Yes. All gaskets supplied with our angle strainers (Silicone, EPDM, or FKM) are 100% FDA compliant (FDA 21 CFR 177.2600). They are fully certified for safe use in food, dairy, beverage, and pharmaceutical processing.

Q6: What is the main advantage of a 90-degree angle-type strainer in a piping layout?

Answer: The biggest advantage is space-saving and low pressure drop. It changes the flow direction by 90 degrees while filtering the fluid, allowing you to install it directly at corners or pump inlets. It also allows the filter screen to be pulled out from the side without disconnecting the main pipeline.

Reliable Hygienic Filtration Components from DINGYUE

With experience in sanitary valves, fittings, and high-purity fluid control components, DINGYUE provides filtration solutions designed for demanding process environments.

From compact piping systems to large-scale industrial projects, our Angle Type Tri Clamp Strainer helps customers maintain cleaner fluid circulation, simplify installation, and improve long-term system reliability.
