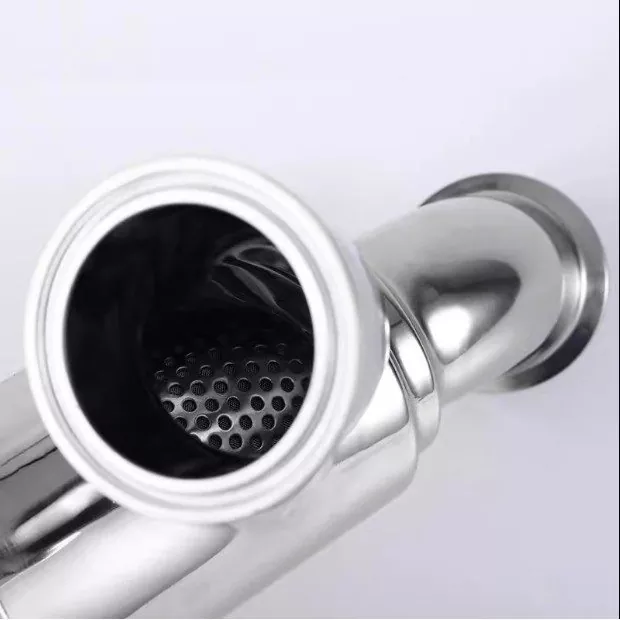

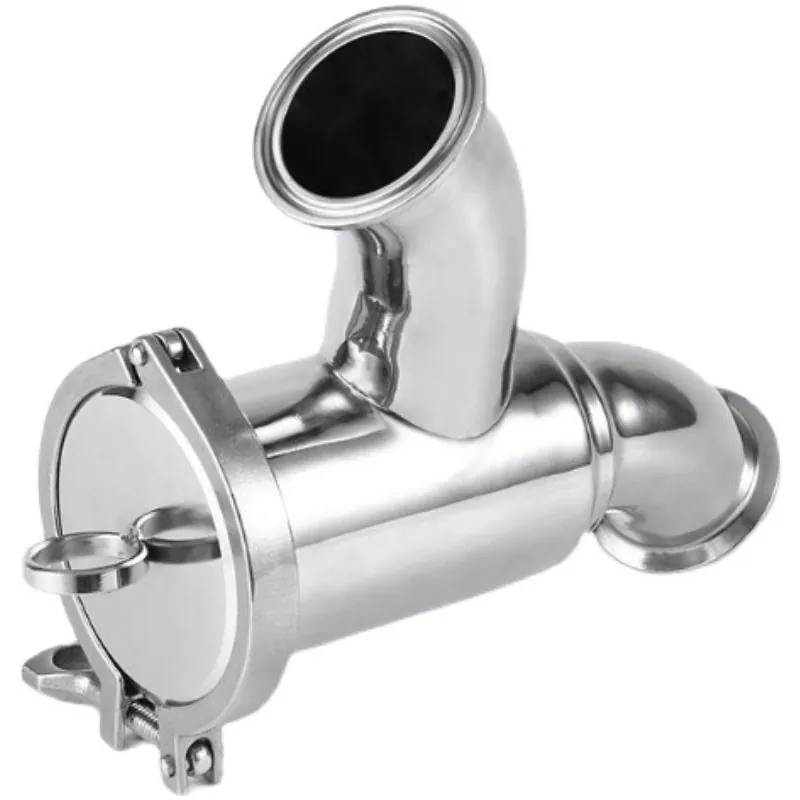

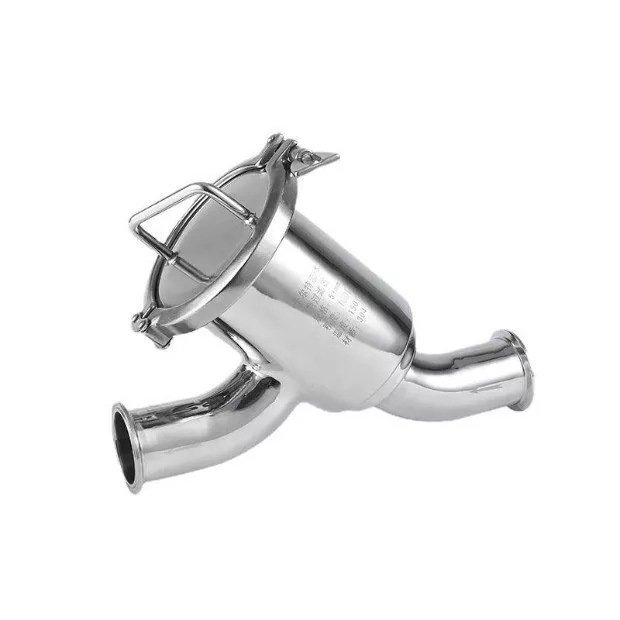

Our factory supplies heavy-duty Sanitary R Strainers at low wholesale prices. These filters feature high flow capacity, quick disassemble designs, and superior corrosion resistance. Contact our sales engineers now to receive technical specifications, custom fabrication options, CE standard certifications, or a free sample for your project.
|
Parameter / Feature |
Specification Details |
|
Body Material |
Premium AISI 304 / 316L Stainless Steel |
|
Connection Types |
Tri-Clamp, SMS, DIN, RJT, Weld End |
|
Filter Mesh Range |
20 Mesh to 400 Mesh (30 to 800 Micron Equivalent) |
|
Seal / Gasket Material |
EPDM, Silicone, FKM, PTFE (FDA 21 CFR 177.2600 & USP Class VI) |
|
Max Working Pressure |
10 bar (145 psi) / Customized for higher pressure options |
|
Quality Certification |
EN 10204 3.1 Material Test Certificate (MTC), 3-A, PED/CE |
Adhering to proper operational guidelines ensures long-term filtering efficiency and smooth processing:
Installation Guidance: Ensure the inlet and outlet ports align with the pipeline curvature to prevent mechanical stress on the connections.
Servicing & CIP: Disassembly is fast and tool-free via top or side heavy-duty tri-clamps. The filter basket can be quickly extracted for manual rinsing or sanitized in-line during standard Clean-In-Place (CIP) routines.
Pressure Monitoring: We recommend placing differential pressure transmitters upstream and downstream of the Sanitary R strainer to continuously track filter loading and schedule cleaning cycles without unexpected downtime.
|
Comparison Category |
Image 1: Sanitary Y-Strainer |
Image 2: Sanitary Angle / Side-Inlet Strainer |
|
Standard English Terminology |
Sanitary Y-Strainer (Tri-Clamp Y-Filter) |
Sanitary Angle Strainer (Side-Inlet Bottom-Outlet Filter) |
|
Structural Design |
Straight-through main pipe with an inclined mesh filter branch. Liquid flows in a straight line while debris is caught in the angled branch. |
Right-angle entry with a large vertical/offset filter chamber. Liquid enters from the side bend and exits through the bottom. |
|
Key Advantages |
• Low Pressure Drop: Straight path minimizes resistance. • Compact Footprint: Ideal for tight, straight pipeline runs. |
• High Flow Capacity: Larger chamber holds more dirt, extending cleaning intervals. • Self-Draining: Bottom port allows complete liquid draining with no residue. |
|
Typical Applications |
• Pump inlet protection (capturing solid particles) • High-speed, low-viscosity liquid lines • Space-restricted straight pipe runs |
• High-viscosity media (dairy, sauces, pastes, syrups) • Long continuous production runs • Pipe corner / 90° elbow installation points |
Every unit undergoes multi-axis CNC machining, orbital TIG welding, and 100% hydrostatic pressure testing to ensure zero-leak operation. We protect your shipments with custom export-grade packaging and partner with leading international freight carriers to guarantee fast, secure global delivery.
As a dedicated manufacturer of sanitary valves, fittings, and filtration hardware, we offer complete customization options—from unique connection dimensions to specialized mesh micron ratings. Our service package includes 24/7 technical support, rapid dispatch on spare gaskets/baskets, and comprehensive warranty coverage. Incorporating a precision-built Sanitary R strainer into your fluid system ensures reliable operational uptime and maximum product protection.
A: Unlike straight or diagonal designs, a Sanitary R strainer uses a curved, offset body geometry that lowers fluid turbulence and pressure drop, making it particularly effective for shear-sensitive fluids or tight space layouts.
A: Yes, the top quick-release tri-clamp cover allows operators to pull out the internal basket for inspection or cleaning while the main valve body stays mounted to the line.

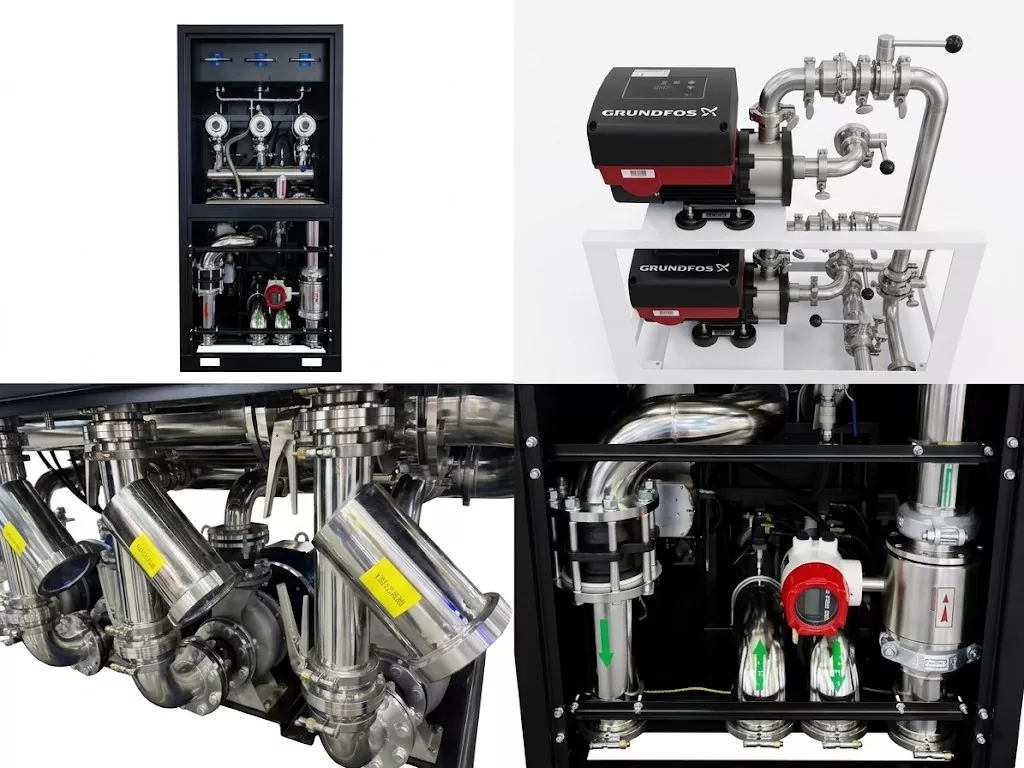

Looking for dependable plumbing solutions for your CDU equipment? Our sanitary valves and pipe fittings make assembly fast and secure. Designed with smooth interior surfaces to maintain pure fluid flow, they prevent blockages and reduce wear over time. Perfect for data center liquid cooling lines that need quick installation and hassle-free upkeep.
