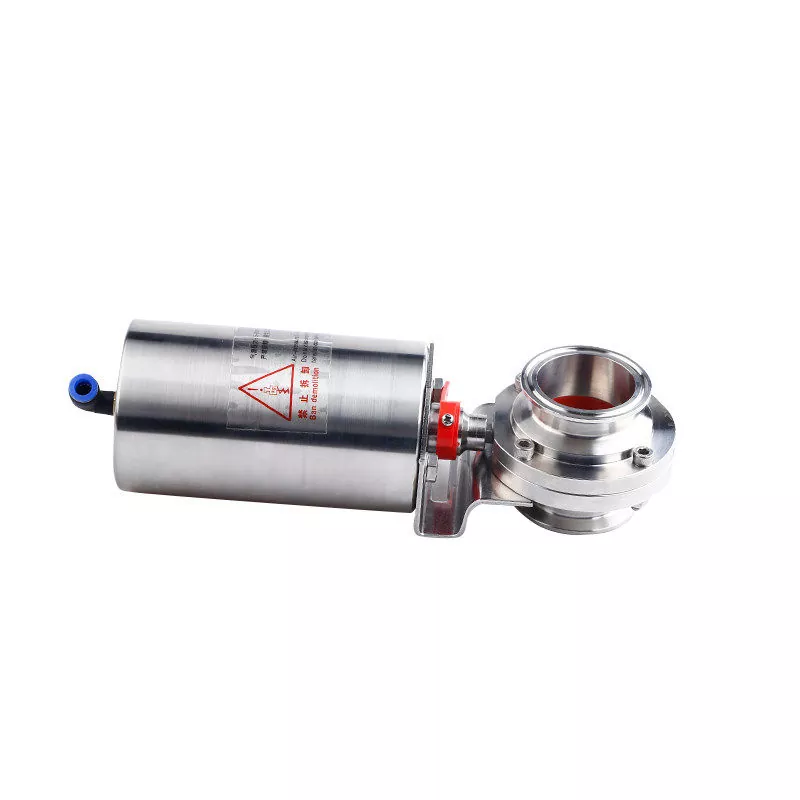

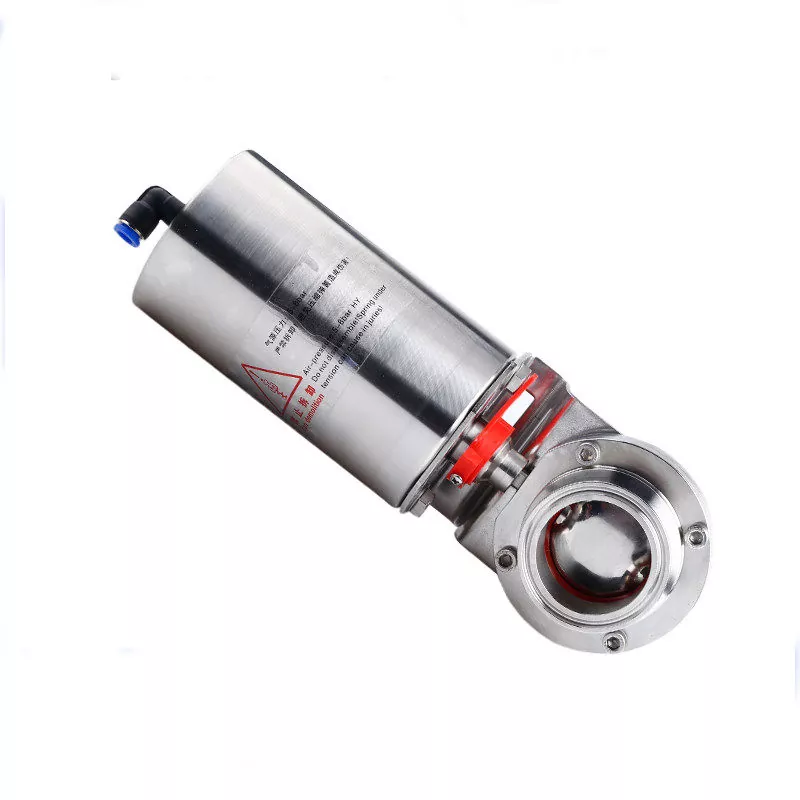

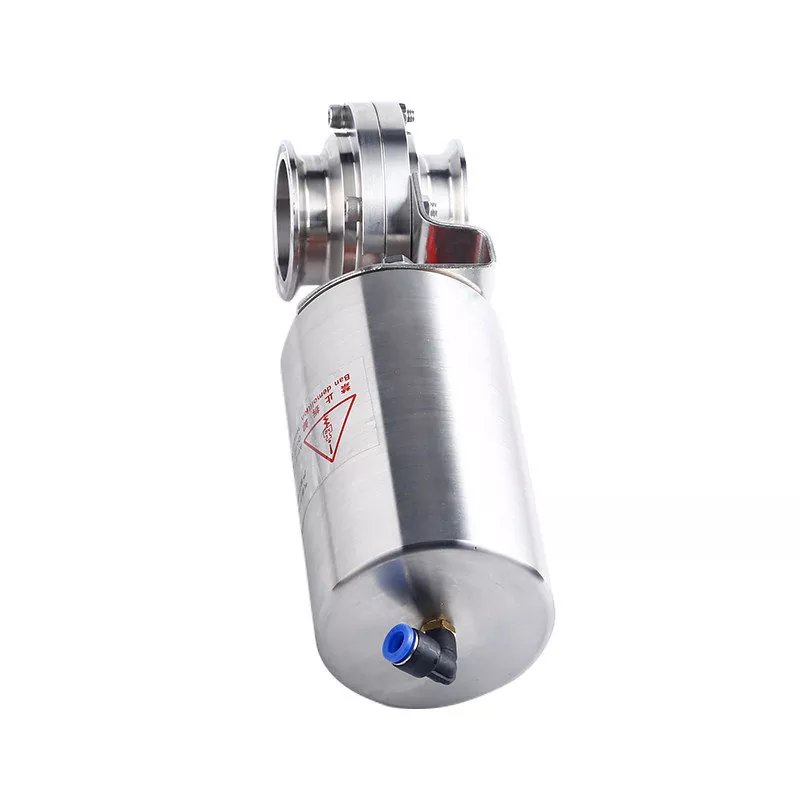

The DingYue pneumatic cylinder actuator butterfly valve uses compressed air to drive the valve disc, enabling rapid opening and closing without manual operation. Its pneumatic configuration is well suited to automated process lines, centralized control systems and applications requiring frequent valve actuation. With selectable actuator modes, sanitary connections and sealing materials, the valve can be configured according to the medium, control logic, installation conditions and cleaning requirements of different piping systems.
Every component that touches your product meets strict global hygiene standards.
|
Component |
Sanitary Material |
Compliance Standard |
|
Valve Body & Disc |
SS316L Stainless Steel (Low Carbon) |
FDA 177.2600 / 3A / BPE |
|
Valve Seat / Seal |
Food-Grade EPDM (Standard) / Silicone / PTFE / VITON |
FDA Certified, USP Class VI |
|
Actuator Body |
Bright Anodized Aluminum / Stainless Steel 304 |
Washdown Safe (IP67) |
Bacteria-Free & Easy to Clean: The streamlined disc design prevents fluid stagnation. It fully supports CIP and SIP at high temperatures.

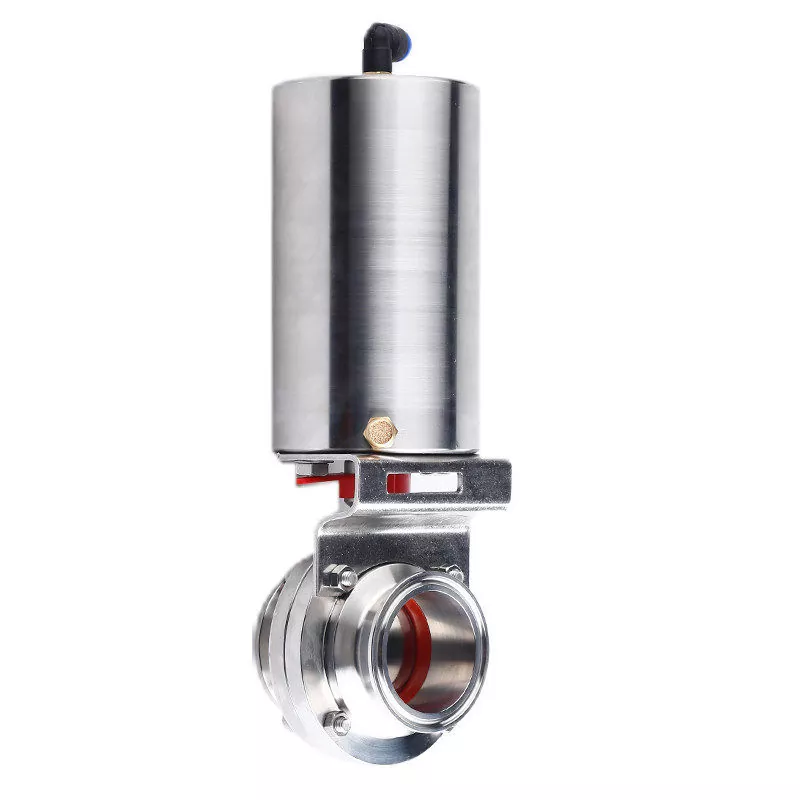

Space-Saving Vertical Setup: The vertical pneumatic cylinder actuator takes up 35% less space than horizontal types, allowing you to design compact, beautiful sanitary pipe matrices.
100% FDA Compliant: All sealing materials are non-toxic, smell-free, and resistant to food acids, alcohols, and high-temperature steam.
To keep your sanitary pneumatic cylinder actuator driven butterfly valve in top condition, please note:
Clean the pipeline thoroughly before installing the pneumatic cylinder actuator butterfly valve to protect the mirror-polished disc from scratches.
Run a standard CIP cycle with food-grade cleaning agents after installation to ensure system sterility.
Due to quick-clamp designs, changing the pneumatic cylinder actuator butterfly valve seat takes less than 3 minutes without special tools.
We recommend checking the food-grade seal every 6 to 12 months depending on your CIP frequency and liquid temperature.
18-Month Warranty: Full warranty against manufacturing defects.
24/7 Expert Support: Our engineers speak simple, clear English and provide video guides for installation, adjustment, and maintenance within 12 hours.
A: Yes! We provide the official FDA material compliance report and material traceability certificates (MTR) with every shipment.
A: Absolutely. The actuator has an IP67 waterproof rating, making it safe for daily wash downs in food factories.
A: Very low! We support small businesses. We can laser-mark your logo even for a sample order of 5–10 units.

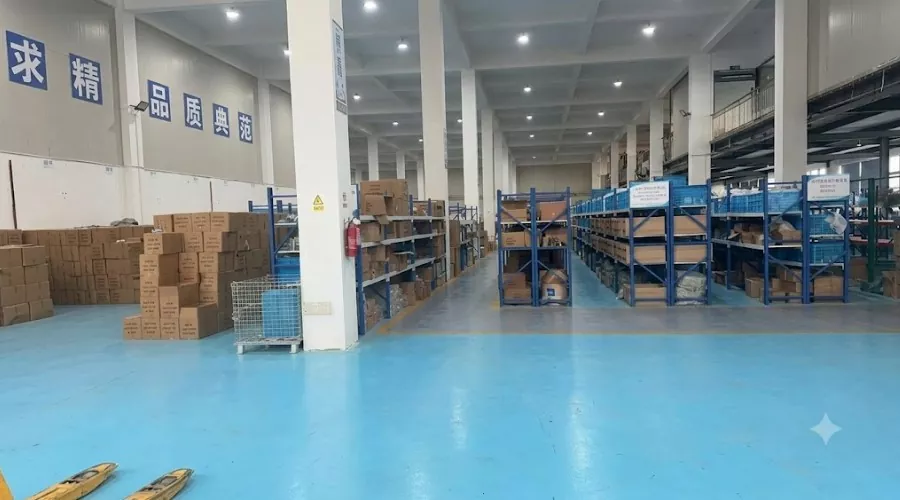

Our Warehouse / Finished Goods Storage

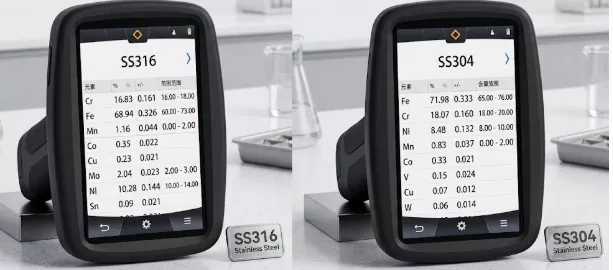

What goes into our products matters. We perform meticulous testing on all incoming raw materials and conduct a final inspection prior to shipping out your order. Every key element is strictly verified to fall safely within standard SS316 and SS304 parameters. No impurities, no downgraded metals—just pure, heavy-duty quality you can trust for your project.

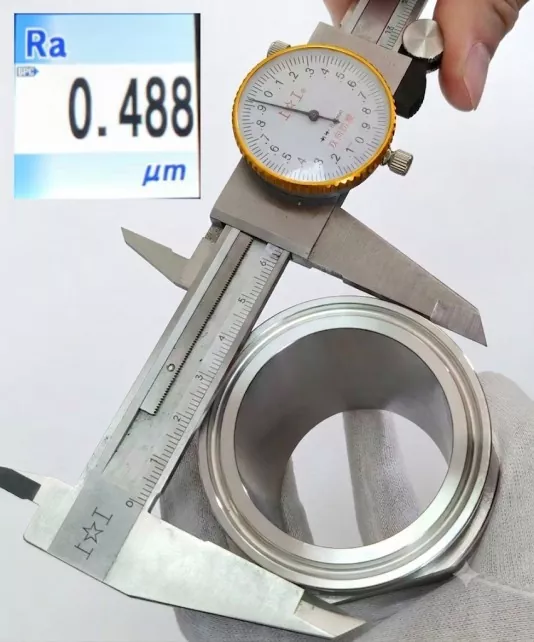

Protect your production timeline with components you can count on. After manufacturing, our quality assurance team inspects every single item. We test dimensions—height, inner diameter, and outer diameter—with millimeter precision. Crucially, we check the internal wall smoothness, keeping surface roughness strictly below Ra 0.8 µm. Nothing leaves our factory unless it meets these exacting standards. Buy with confidence knowing every shipment is 100% verified.
In a world full of shipping delays and empty shelves, we chose to do things differently. Our facility is fully loaded with massive stock so you never have to hit pause on your plans. Because we house everything right here, we completely bypass the middleman and the usual logistics headaches. This means your order goes from our shelves to the delivery truck in record time. Why wait weeks?
