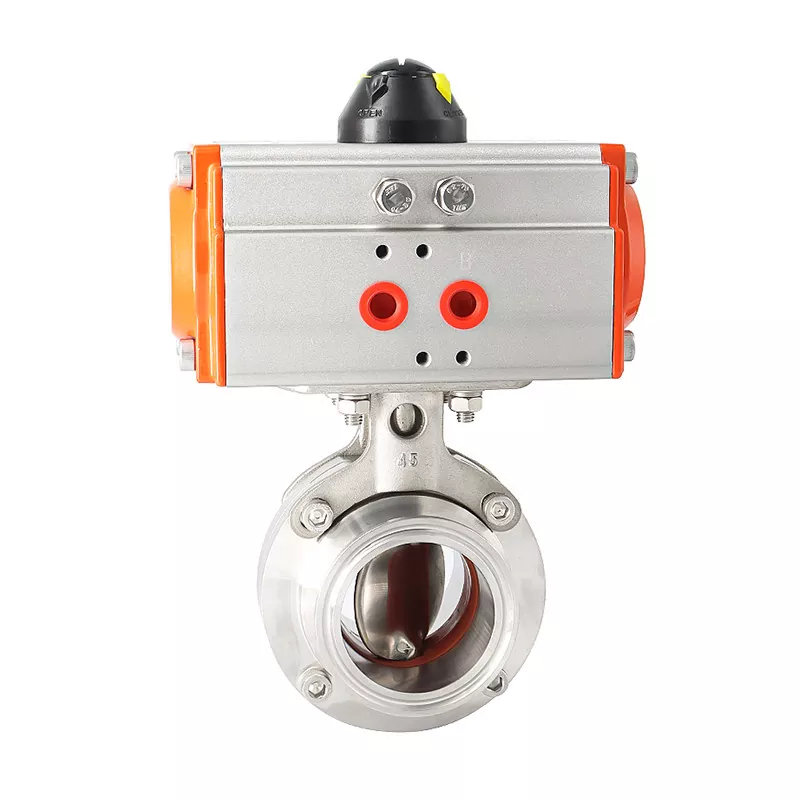

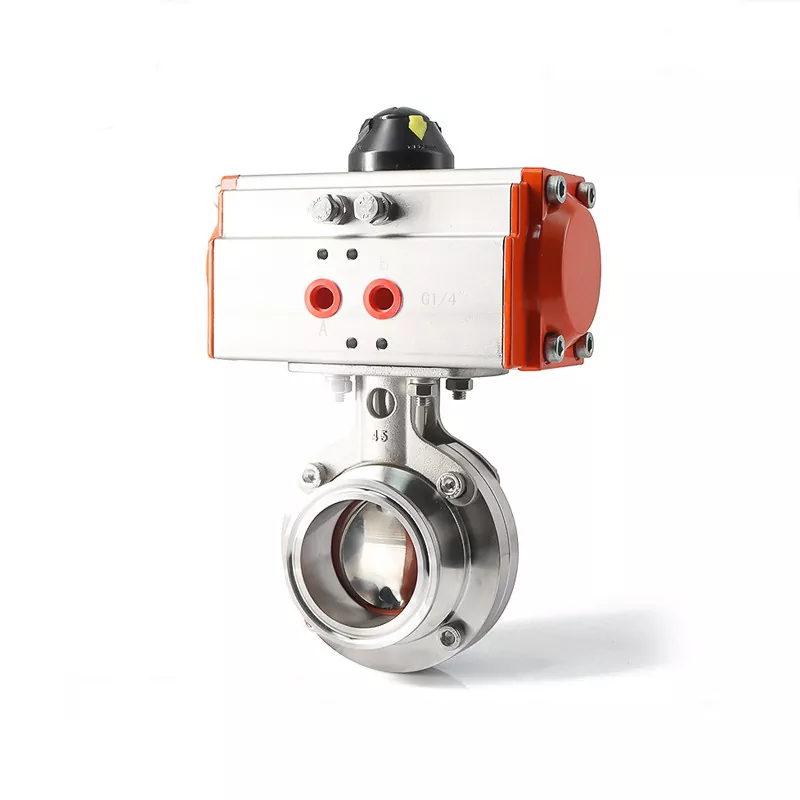

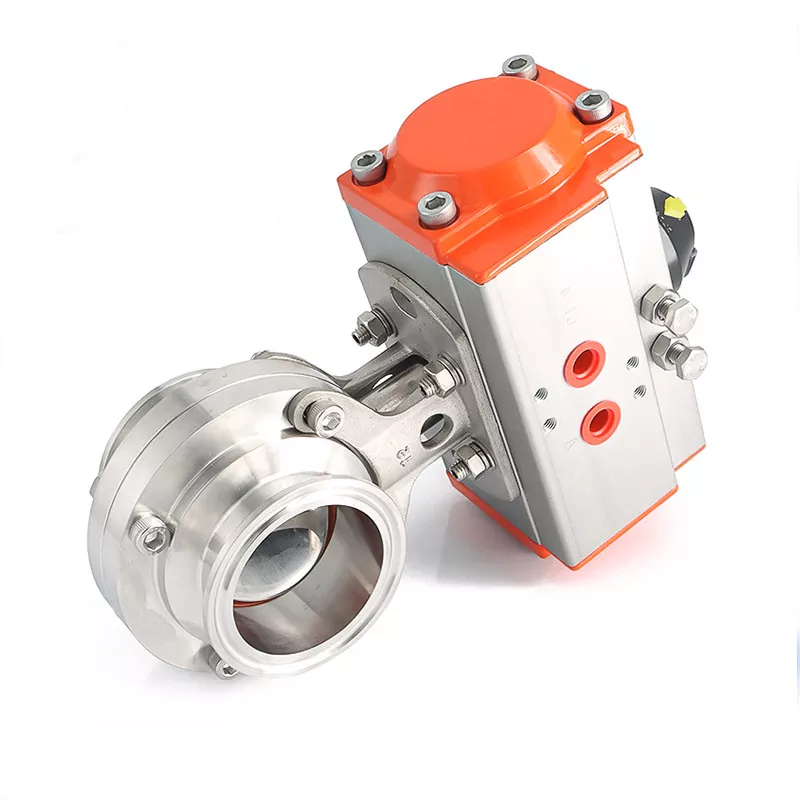

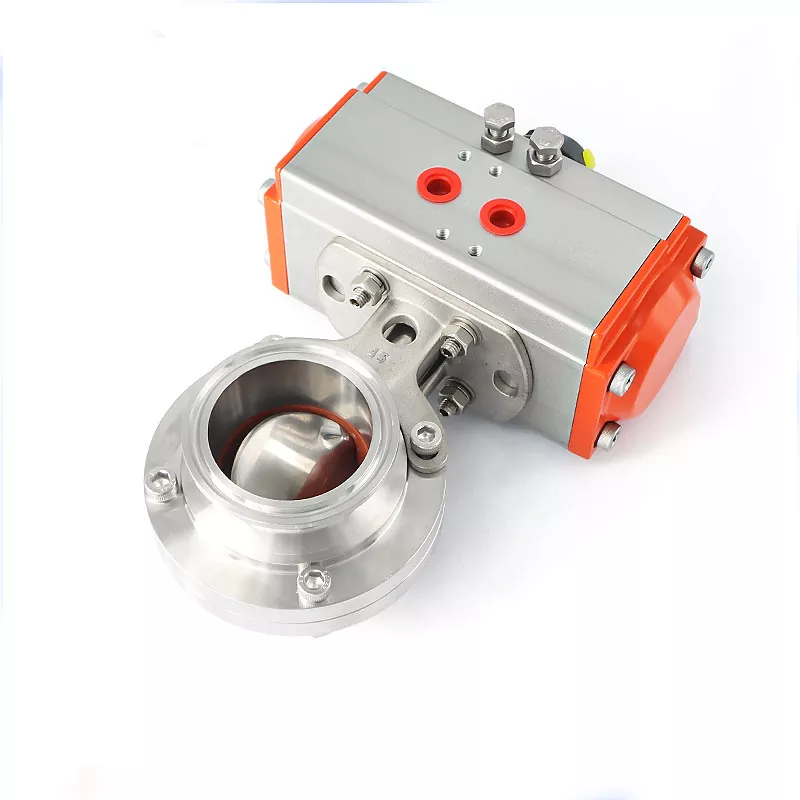

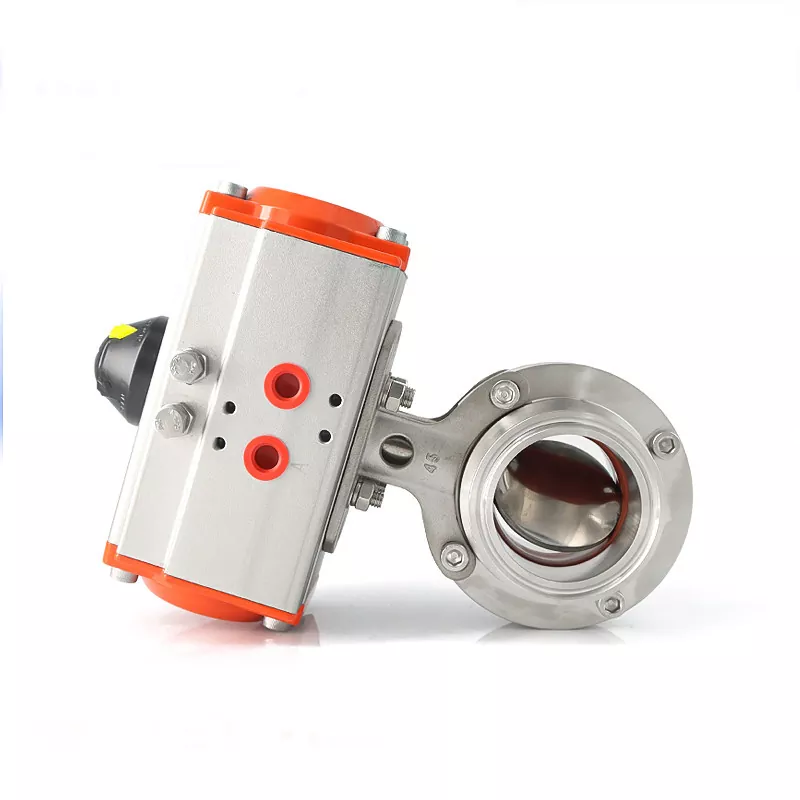

Horizontal Pneumatic Sanitary Butterfly Valve

Manufactured from 316L stainless steel as the standard body and disc material, the Horizontal Pneumatic Sanitary Butterfly Valve is available with EPDM, PTFE or FKM sealing options. Customers can also select different pneumatic actuator types, position indicators, mounting brackets and sanitary connections to match their equipment and piping requirements.

DINGYUE supplies sanitary valves to food & beverage, biopharmaceutical, fine chemical and data center liquid cooling applications, with material traceability, precision machining and 100% applicable valve pressure testing supporting consistent B2B supply.

How the Valve Works

The operating principle combines a quarter-turn butterfly valve with pneumatic actuation.

Operating Sequence

Compressed Air → Pneumatic Actuator → Valve Stem → Disc Rotation → Flow Control

When compressed air enters the actuator, the actuator generates rotational movement that turns the butterfly disc.

Open Position

The disc rotates approximately in line with the pipeline, allowing fluid to pass through the valve.

Closed Position

The disc rotates across the flow path, shutting off the pipeline.

Automated Operation

The pneumatic actuator can receive signals from the plant's control system, enabling automatic opening and closing according to the process sequence.

This makes the valve suitable for applications where operators need repeatable valve operation without manually accessing every valve in the piping system.

Fail-Safe Options

Depending on the selected actuator:

· Double-Acting: Air operates both opening and closing.

· Normally Closed (NC): Spring force returns the valve toward the closed position when air is removed.

· Normally Open (NO): Spring force returns the valve toward the open position when air is removed.

The correct configuration depends on the process control strategy and required failure position.

Materials & Technical Specifications

Key Engineering Advantages

Compact Pneumatic Configuration

The pneumatic actuator provides automated operation without requiring manual access to the valve handle, making it practical for equipment assemblies and centralized process control.

Hygienic Stainless Steel Construction

The standard 316L stainless steel configuration provides corrosion resistance and is well suited to demanding hygienic and high-purity fluid environments.

Smooth Internal Surface

An internal surface finish of Ra ≤ 0.8 μm is available for the specified configuration, helping reduce areas where process media can accumulate.

Flexible Sealing Materials

EPDM is offered as the standard seal, while PTFE and FKM are available for applications requiring different chemical or temperature characteristics.

Multiple Connection Configurations

Tri-Clamp, threaded/union and butt-welded configurations allow the valve to be matched with different sanitary piping systems.

Configurable Actuation

Double-acting, normally closed and normally open pneumatic actuator configurations allow engineers to select the operating logic according to the process.

Traceable Material Control

DINGYUE provides Material Test Reports (MTR) and heat-number traceability for applicable orders, supporting material verification throughout the supply process.

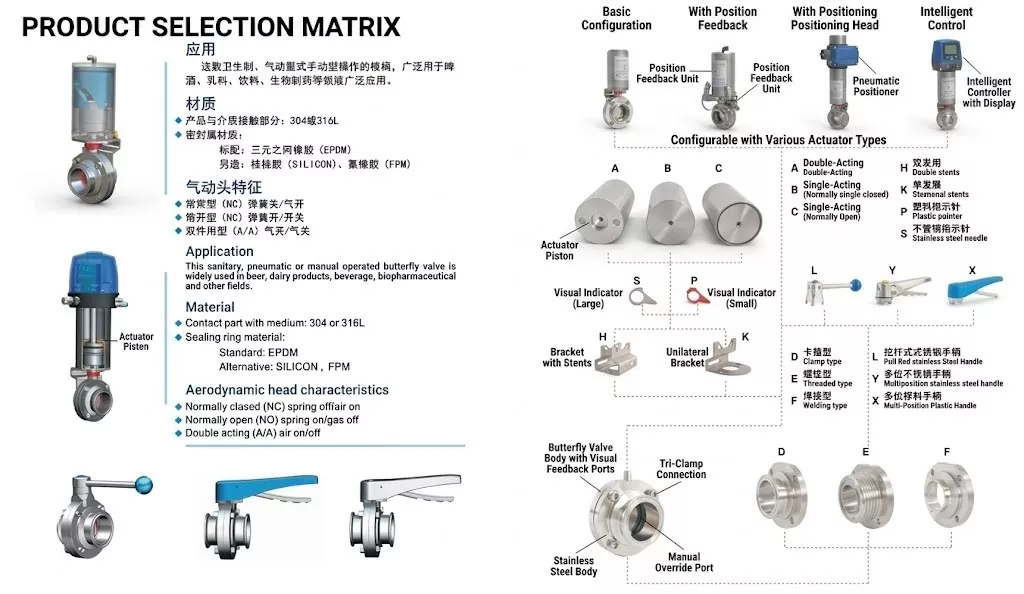

Pneumatic Actuator Selection

The actuator determines how the sanitary butterfly valve responds to pneumatic signals and what happens when the air supply is interrupted.

Double-Acting Actuator

Code: A

Air pressure is used for both opening and closing.

Suitable for:

· Automated process lines

· Frequent cycling

· Systems with continuous compressed-air supply

· Applications requiring controlled opening and closing

Single-Acting Normally Closed

Code: B

The actuator uses compressed air to open the valve, while spring force returns it toward the closed position when air pressure is removed.

Recommended when the process requires a fail-closed configuration.

Single-Acting Normally Open

Code: C

The actuator uses compressed air to close the valve, while spring force returns it toward the open position when air pressure is removed.

Recommended when the process requires a fail-open configuration.

Position Indicator Options

S — Stainless Steel Indicator

A durable mechanical indicator suitable for demanding industrial environments.

P — Plastic High-Visibility Indicator

A lightweight indicator designed for easy visual identification of valve position.

Connection & Mounting Options

The connection and mounting configuration should be selected according to the existing piping system and available installation space.

Tri-Clamp Connection — D

A quick-release sanitary connection widely used in hygienic processing systems.

Benefits include:

· Easy installation

· Fast disassembly

· Convenient maintenance

· Suitable for sanitary piping systems

Threaded / Union Connection — E

Designed for piping systems requiring threaded or union-style connections.

This option can be considered when the surrounding equipment uses compatible hygienic threaded interfaces.

Butt-Welded Connection — F

Designed for permanent piping installations.

Butt-welded connections can be used where the valve is integrated directly into the process piping and frequent removal is not required.

Mounting Brackets

H — Heavy-Duty Double-Sided Bracket

Provides a robust actuator-to-valve mounting configuration for applications where mechanical stability is important.

K — Single-Sided Bracket

A more compact mounting configuration where installation space or sensor positioning needs to be considered.

For equipment manufacturers, actuator orientation and surrounding clearance should be confirmed before production.

Application Industries

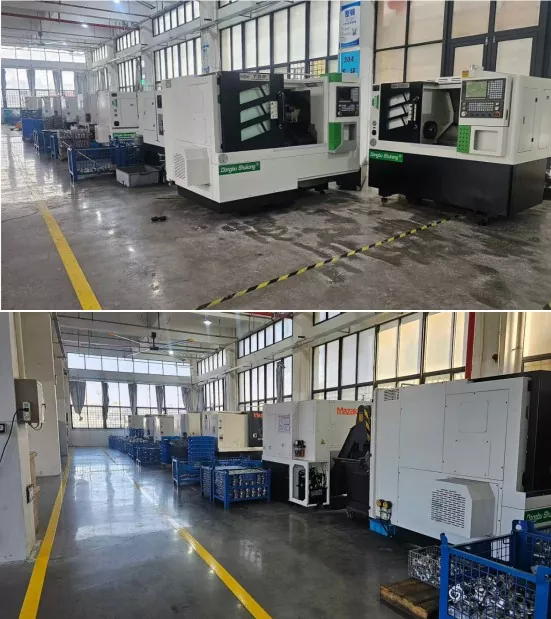

Advanced Manufacturing Workshop

See those signs on our factory walls? We keep our different types of stainless steel—like SS304 and SS316—in completely separate areas with their own machines. We never mix them up. This guarantees that when you pay for premium, rust-resistant metal, you get exactly what you paid.
