Butterfly Valve with Gripper Handle

DingYue custom Butterfly Valve with Gripper Handle designs offer smooth manual flow adjustment for modern beverage lines and AI data centers. Built to ASME BPE standards, it ensures high-purity fluid control. Request a fast quotation for your massive commercial pipeline upgrade today!

Material Excellence & Engineering Standards

Every component is crafted to withstand decades of continuous operation without degrading the dielectric or chemical properties of the coolant.

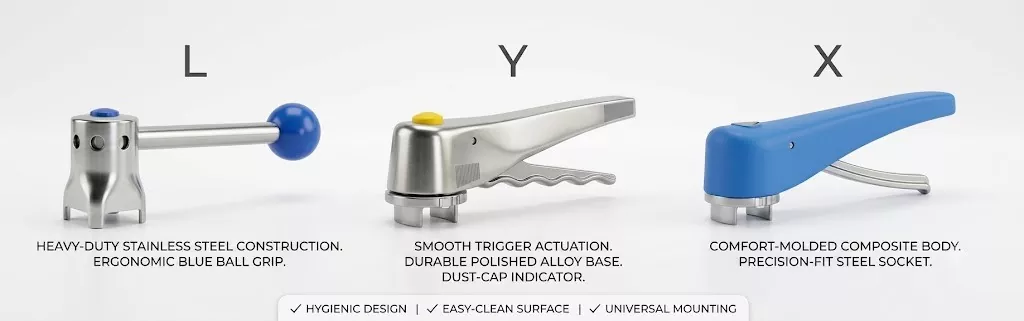

Technical Comparison: Valve Handle Options (L vs. Y vs. X)

1) Type L: Pull-Rod Stainless Steel Handle (Basic On/Off Isolation)

Design & Material: 100% heavy-duty stainless steel rod with an ergonomic round ball knob at the end.

Operation Mechanism: A classic "pull-and-turn" mechanical action. You pull the rod outward to release the locking pin, rotate the valve, and release to lock it back into place.

Flow Regulation: Typically offers 2 to 4 fixed positions (Fully Open / Fully Closed).

Best Application for Liquid Cooling: Ideal for main isolation points where the butterfly valve with gripper handle only needs to be completely open during operation or completely closed during emergency maintenance. It has a compact footprint and high mechanical durability.

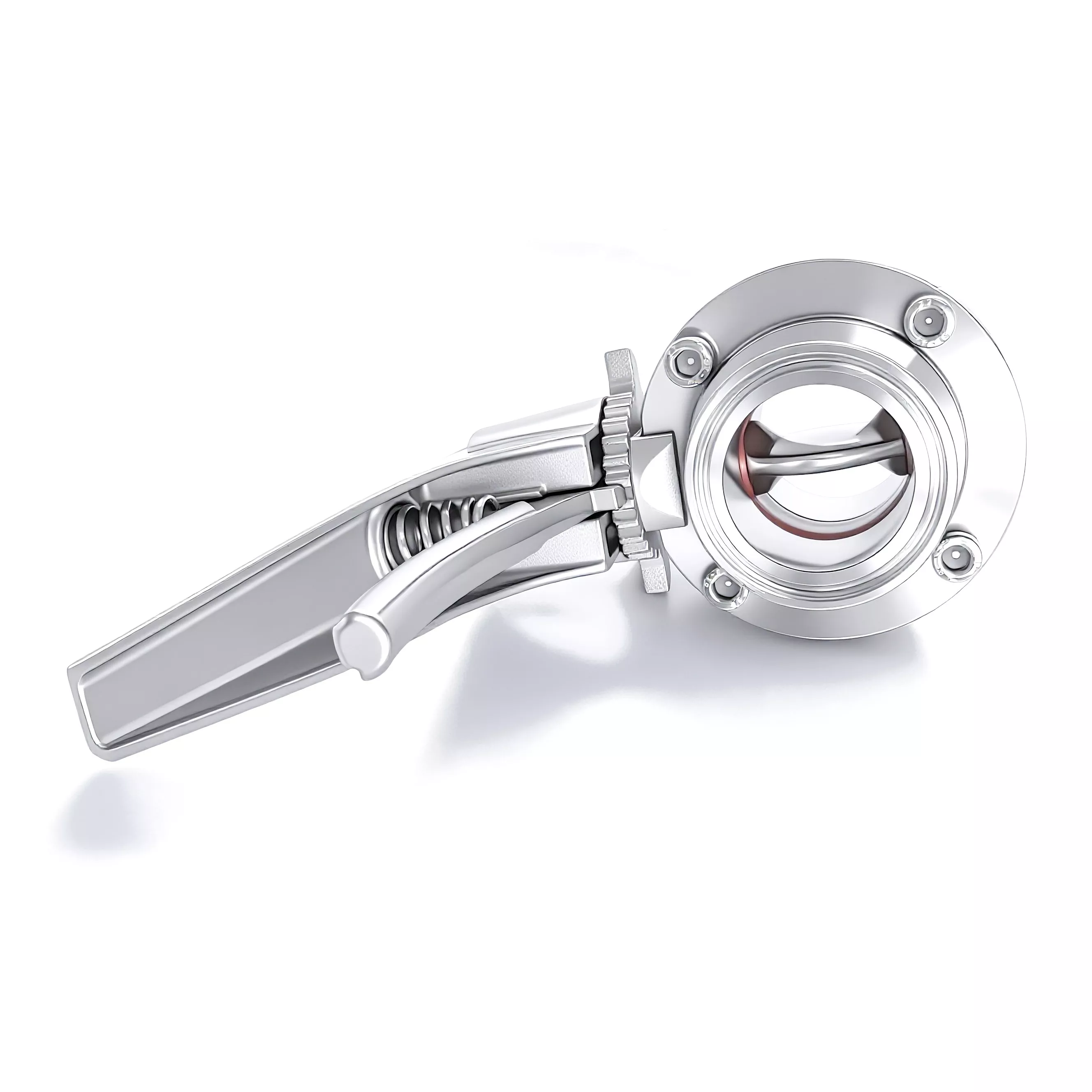

2) Type Y: Multi-Position Stainless Steel Handle (Heavy-Duty Throttling)

Design & Material: All-stainless steel construction featuring a spring-loaded squeeze trigger and an integrated multi-notch positioning plate.

Operation Mechanism: A "squeeze-to-release" trigger mechanism. Squeezing the lower lever disengages the locking teeth from the notched gear wheel, allowing smooth rotation.

Flow Regulation: Provides fine multi-position throttling (usually 12 precise locking intervals at 15° increments) for accurate manual flow rate adjustments.

Best Application for Liquid Cooling: Designed for harsh environments, high-pressure loops, or secondary manifolds where maximum structural strength, extreme corrosion resistance, and precise flow balancing are required.

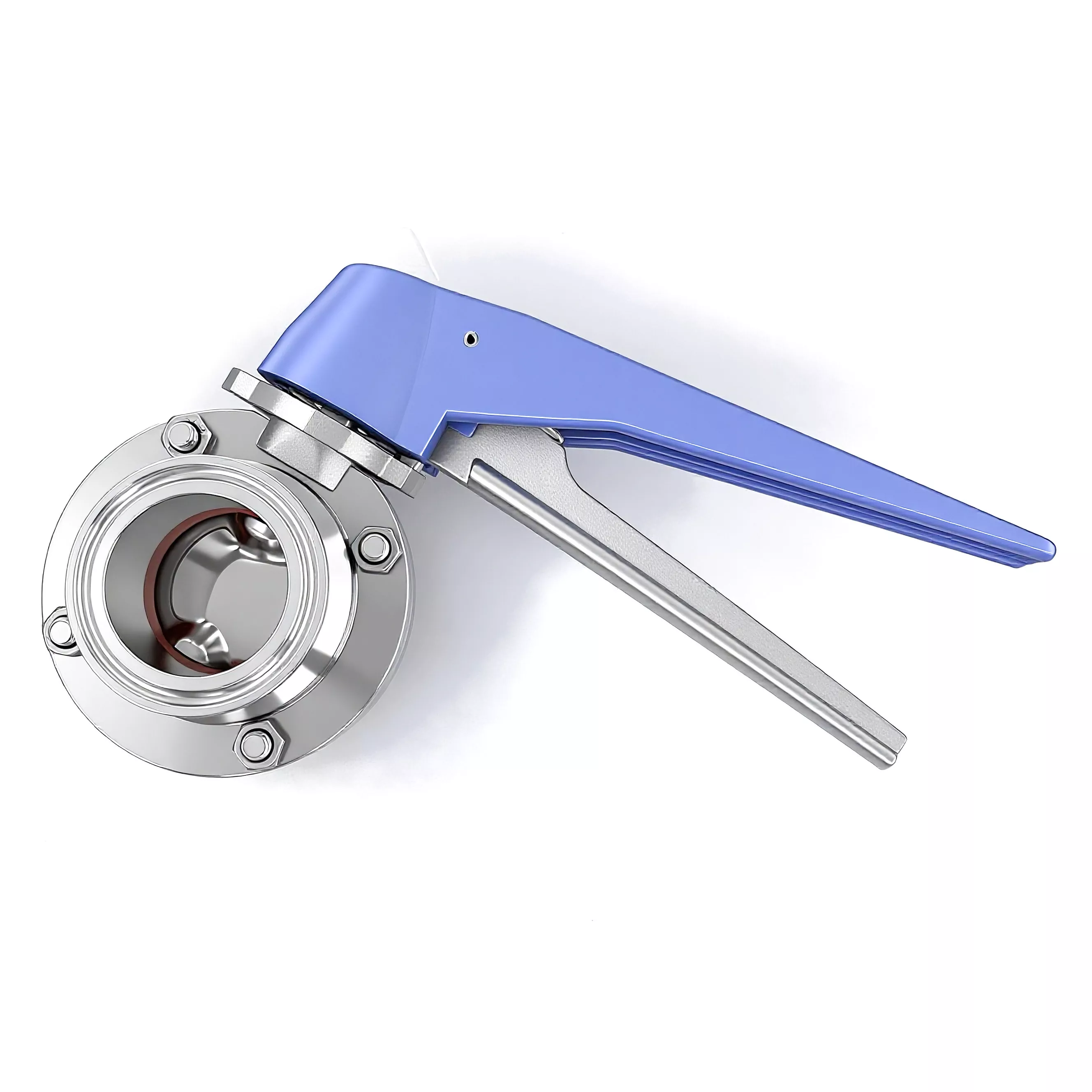

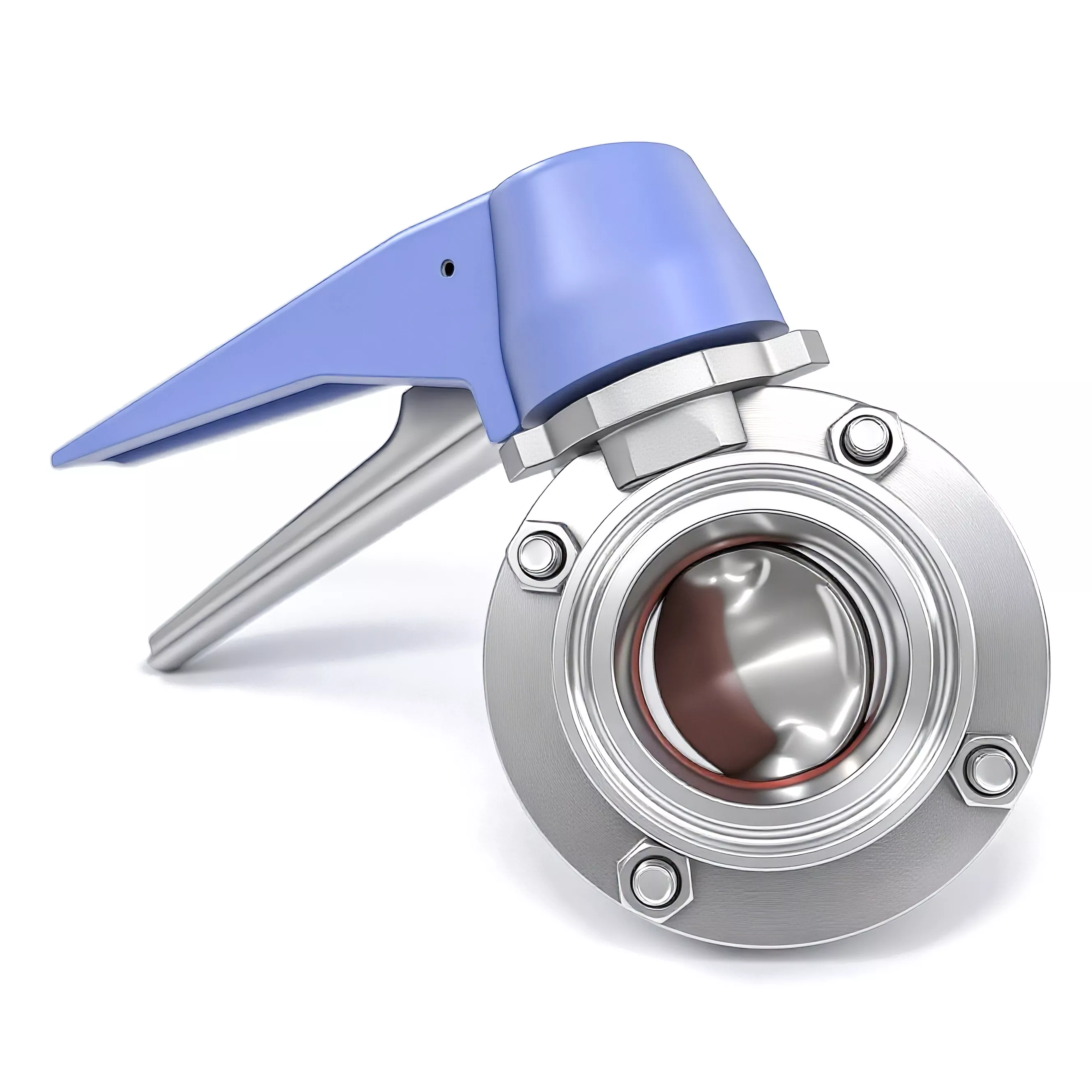

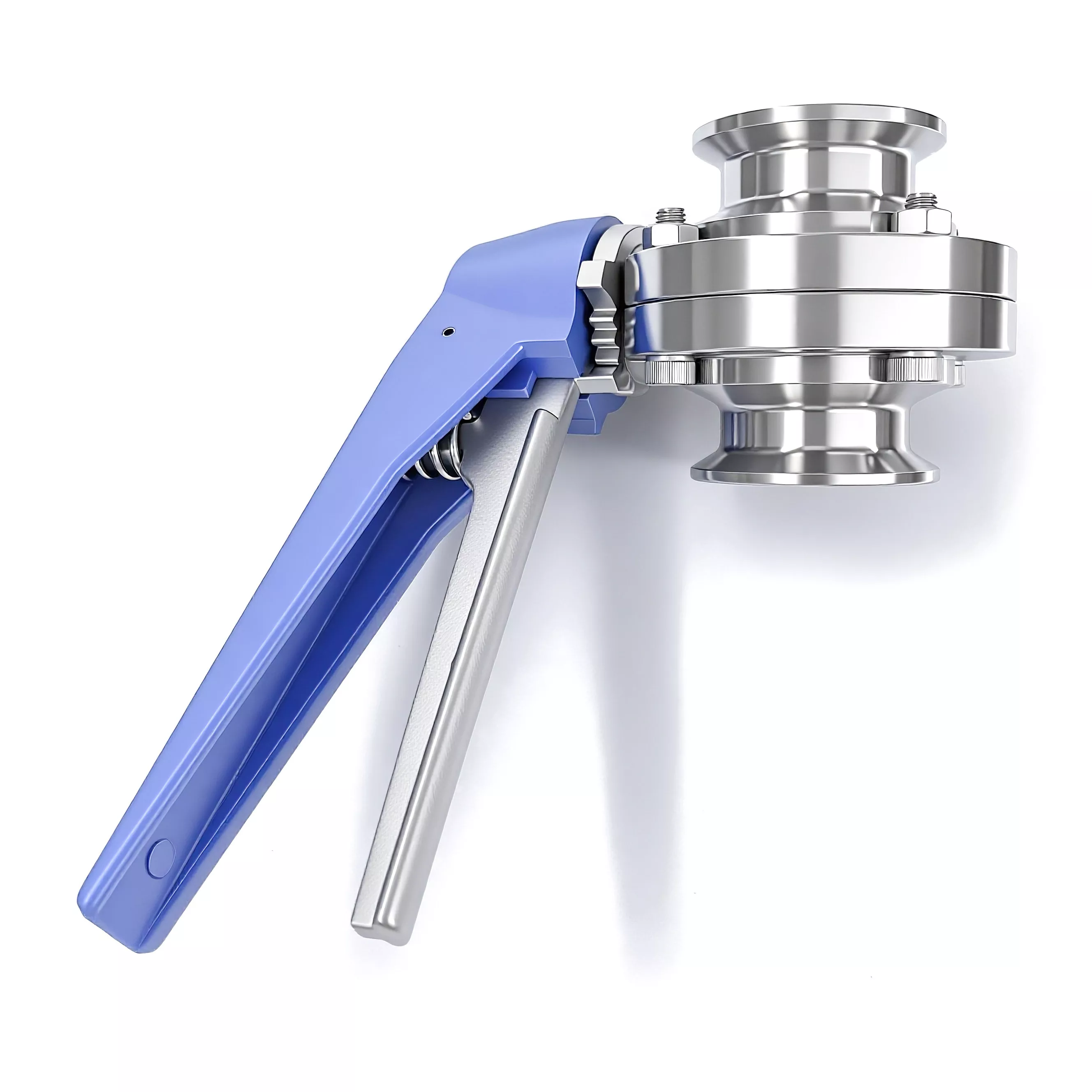

3） Type X: Multi-Position Plastic Handle (Ergonomic & Light-Weight Throttling)

Design & Material: High-strength, impact-resistant engineering plastic/nylon housing (the blue cover) paired with a robust stainless steel internal core and trigger mechanism.

Operation Mechanism: Same squeeze-trigger and notched-gear mechanism as Type Y, allowing effortless one-handed adjustments.

Flow Regulation: Provides multi-position graduated throttling for precise step-by-step fluid volume control.

FAQ

Q1: Can this butterfly valve with gripper handle be used for both water and glycol solutions in AI cooling loops?

A: Yes, absolutely. Our premium EPDM seat is highly resistant to both treated water and industrial glycol mixtures (ethylene/propylene glycol) commonly used in liquid cooling.

Q2: What is your after-sales warranty policy?

A: We provide a 12-month warranty from the date of installation or 18 months from the shipping date. If any butterfly valve with gripper handle fails due to material or manufacturing defects, we provide free replacements immediately via air freight.

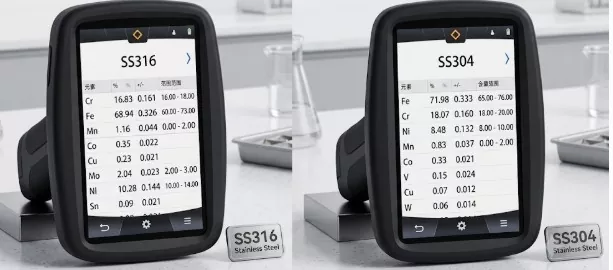

Quality Control & Material Testing

Every single time new materials arrive at our facility, they go through a strict verification process. We test them a second time before they leave our warehouse. This ensures that the chemical composition of our SS304 and SS316 steel stays strictly within the premium standard range. Rely on us for consistent, certified metal excellence.

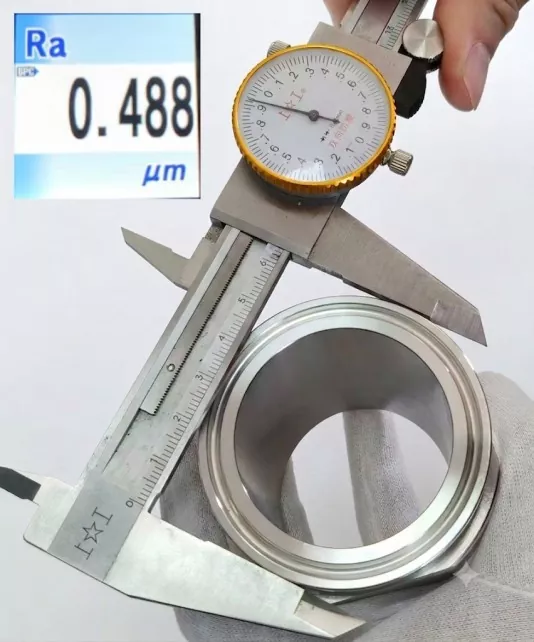

Quality control ＆ Roughness

At our factory, quality isn't just a final step—it's our promise. Every finished part undergoes strict inspection using high-precision dial calipers and roughness testers. We carefully verify critical dimensions including total height, outer diameter (OD), and inner diameter (ID). Additionally, we measure internal surface finish to guarantee an Ra value under 0.8 µm for super-smooth operation. Only parts passing 100% of these checks are approved for shipment. When you order from us, you get total peace of mind.
