DIN 11851 Sanitary Stainless Steel Unions

DIN 11851 Sanitary Stainless Steel Unions are one of the traditional connection solutions used in European hygienic processing equipment. Unlike welded pipe connections that require permanent installation, DIN unions allow operators to disconnect and reconnect pipeline sections during equipment inspection, cleaning, or maintenance.

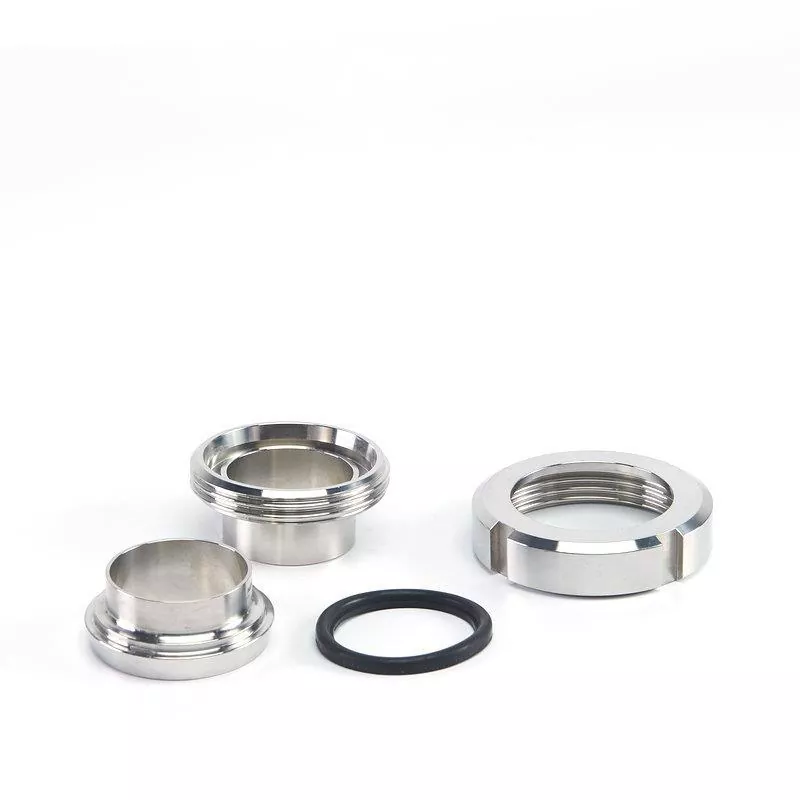

A complete DIN 11851 union set normally consists of a round slotted nut, threaded male part, liner, and sealing ring. The precision-machined components work together to provide a stable mechanical connection while maintaining a smooth internal flow passage suitable for sanitary applications.

At DINGYUE, we manufacture DIN 11851 Sanitary Stainless Steel Unions according to commonly used European sanitary piping requirements, supplying complete union assemblies and replacement components for food, dairy, beverage, pharmaceutical, and process equipment manufacturers.

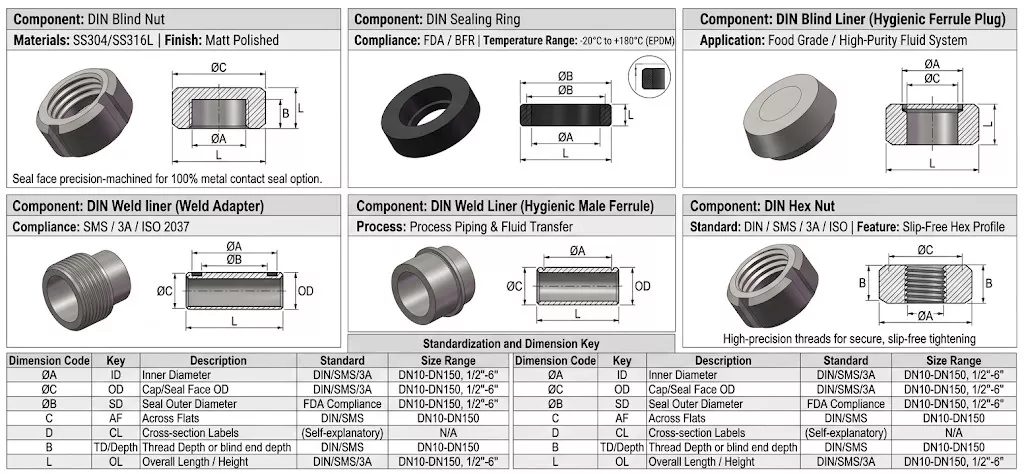

Technical Specifications

Primary Application Scenarios

Due to its robust metric design and superior pressure rating, specifying a DIN union is widely adopted across hygienic manufacturing sectors globally:

Brewing & Beverage: Essential for brewhouse distribution panels, fermentation cellars, and bottling lines.

Dairy & Milk Processing: Used extensively in raw milk receiving units, pasteurization loops, and cheese production tanks.

Pharmaceutical & Biotech: Reliable joining of liquid buffer preparation tanks and utility process lines.

Chemical & Cosmetics: Suitable for high-viscosity cream lines, liquid soaps, and active ingredient mixing vessels.

Operating & Maintenance Guidelines

To maintain a leak-tight seal and extend the lifespan of the elastomeric seal ring during operation:

Proper Alignment: Ensure the male part and liner faces are concentric before engaging the slotted nut to avoid thread galling or gasket pinching.

Spanner Tooling: Use a dedicated DIN C-spanner wrench to tighten the round nut to specified torque levels without damaging the external slots.

Preventive Servicing: Inspect any active DIN union during scheduled plant maintenance, checking for seal swelling or face indentations, and replace gaskets as part of routine upkeep.

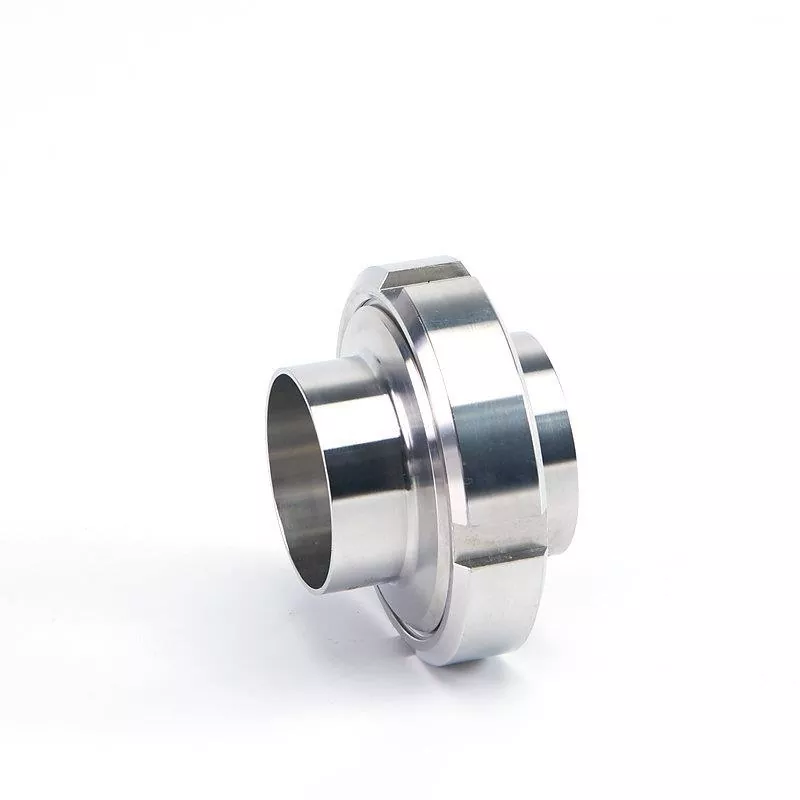

DIN Union Pipe-to-Pipe Connection

Used for joining two processing pipes inline, allowing quick assembly, disassembly, and line inspection without cutting metal. This is ideal for hygienic systems requiring frequent cleaning or maintenance.

DIN Union Blanking Nut (End Cap)

Used to securely seal off the end of a live pipeline or equipment port. By replacing the liner with a solid blanking plate inside the hex nut, it creates a sterile, leak-proof dead end for temporary shutdowns or future expansions.

Why the Nut Has Slots

The slots on the nut are designed so you can use a hook spanner wrench to tighten it down securely. Those notches give the tool a solid grip so you can crank it down tightly without slipping, even with wet hands or in tight spaces.

Frequently Asked Questions

Q1: What is the difference between DIN 11851 and 3A sanitary unions?

DIN 11851 is based on European metric sanitary piping standards and is widely used in European processing equipment. 3A unions follow US sanitary standards and are commonly used with American-style hygienic tubing systems.

Q2: Can DIN 11851 unions replace existing sanitary union fittings?

Yes, as long as the pipe dimensions, connection specifications, and sealing structure match the existing system. For replacement projects, confirming the original DIN size is recommended.

Q3: Why are DIN unions commonly used in dairy processing?

DIN 11851 unions have a long history in European dairy equipment because they provide a detachable connection that supports cleaning, inspection, and maintenance.

Q4: Which gasket material should I choose for a DIN sanitary union?

The suitable gasket depends on the working temperature, cleaning chemicals, and process media. EPDM, Silicone, FKM, and PTFE are commonly selected for different operating conditions.

Q5: Do you supply complete DIN 11851 union sets?

Yes. DINGYUE supplies complete union assemblies as well as individual components for equipment manufacturers, distributors, and maintenance replacement projects.

Q6: Can DINGYUE customize DIN 11851 unions?

Yes. We provide customized sizes, materials, sealing options, and OEM production according to customer drawings or sanitary piping requirements.
