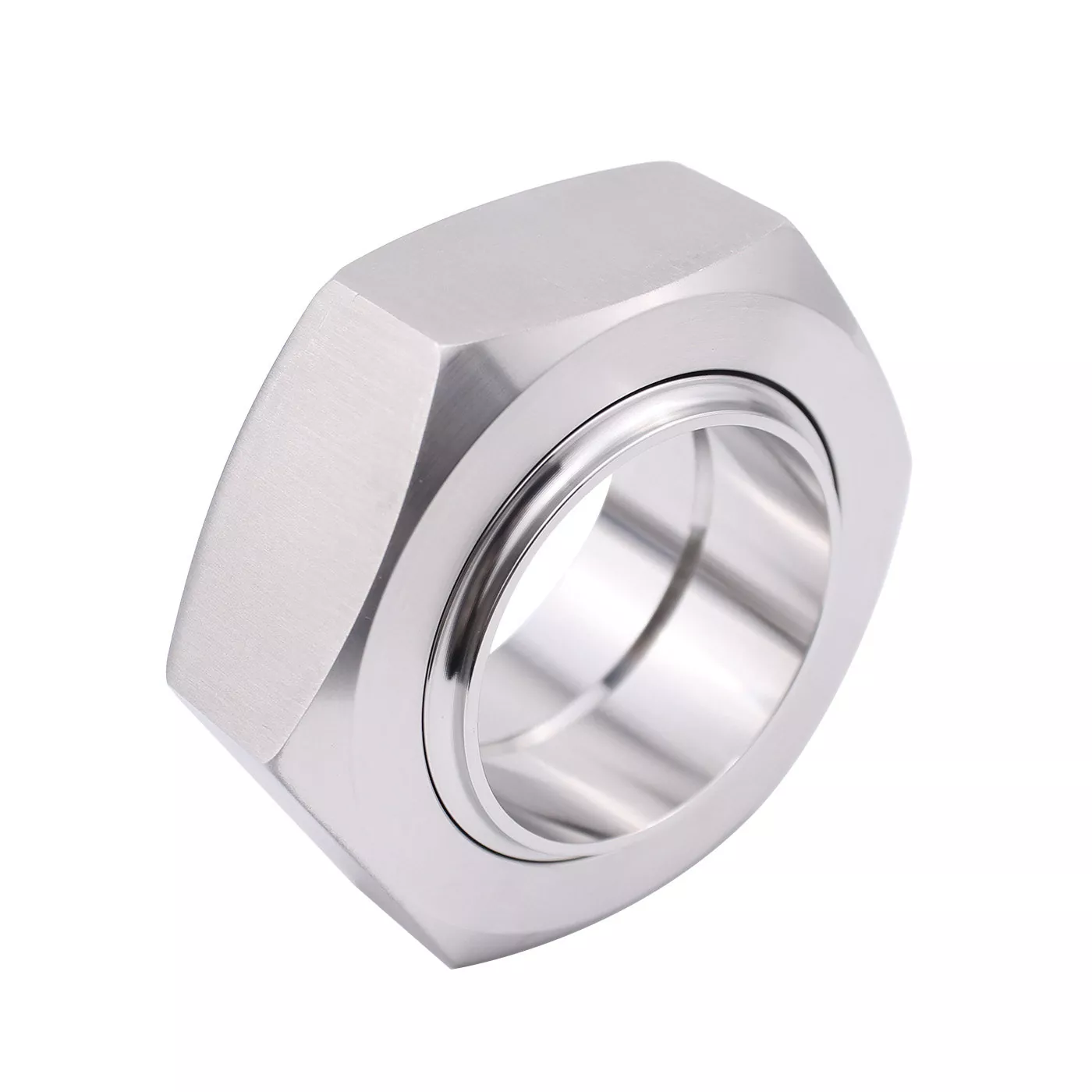

DINGYUE 3A Sanitary Stainless Steel Union Fittings provide a detachable hygienic connection solution for process piping where frequent inspection, cleaning, or equipment replacement is required.

Unlike permanent welded connections, sanitary unions allow operators to disconnect pipe sections without cutting or rewelding the pipeline. The union assembly consists of precision-machined components, including the threaded nut, male part, liner, and sealing element, creating a secure connection while maintaining a smooth internal flow path.

Designed according to 3-A sanitary requirements, these union fittings are suitable for systems where cleanability, material compatibility, and connection reliability are important considerations.

Specifications

3-A Standard Compatible Hygienic Connection

The design of a 3A Sanitary Stainless Steel Union Fittings focuses on reducing contamination risks and supporting easier cleaning procedures. Smooth machining surfaces and properly matched connection components help maintain hygienic conditions in process pipelines.

For food, beverage, and pharmaceutical equipment, selecting a connection method that meets sanitary requirements helps maintain system performance during long-term operation.

Easy Disassembly for Inspection and Maintenance

One of the main reasons customers choose union fittings is accessibility.

Compared with welded connections, a sanitary union can be opened when equipment requires inspection, cleaning, or component replacement. This makes it suitable for process systems that require regular maintenance access.

Stainless Steel Construction for Hygienic Applications

DINGYUE supplies 3A union fittings manufactured from stainless steel 304 and 316L.

316L stainless steel is commonly selected for pharmaceutical and higher-corrosion environments because of its improved corrosion resistance, while 304 stainless steel provides a practical solution for general food and beverage applications.

Reliable Replacement for Existing Sanitary Systems

For maintenance projects and equipment upgrades, matching the original union dimensions is essential.

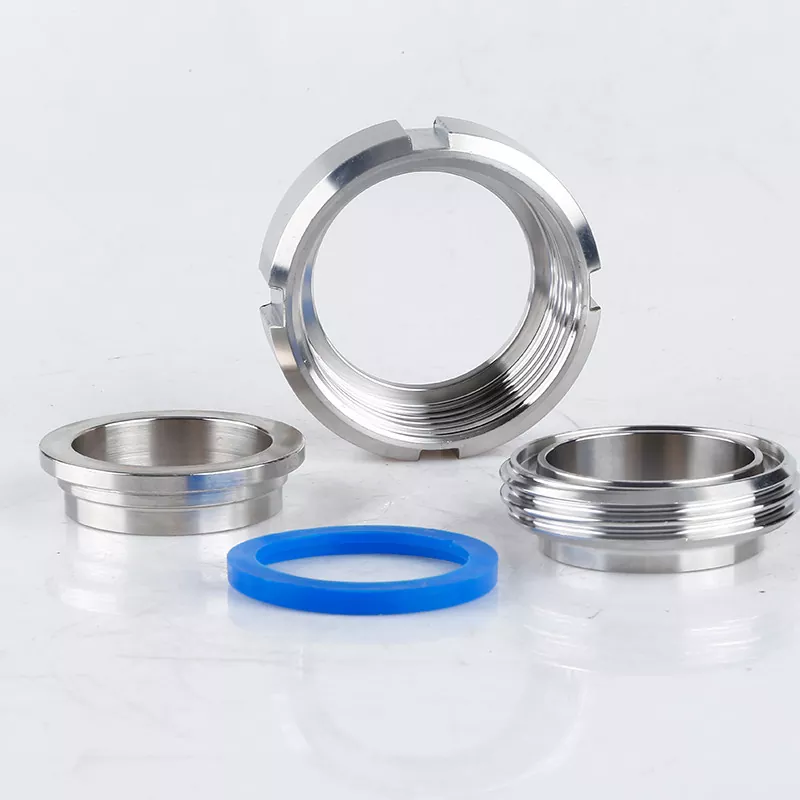

We supply replacement union sets with compatible components, including:

· Union nut

· Male part

· Liner

· Gasket/sealing components

This helps customers replace worn components without modifying the existing piping design.

Applications

Food and Beverage Processing

Food and beverage production lines require sanitary connections that can withstand frequent cleaning and production changes.

· Dairy processing equipment

· Beverage transfer systems

· Brewing equipment

· Ingredient handling pipelines

The detachable design allows operators to access piping sections during maintenance without major pipeline modifications.

Pharmaceutical and Bioprocess Systems

Pharmaceutical equipment requires strict control of cleanliness and material compatibility.

· Process skids

· Clean fluid transfer systems

· Pharmaceutical equipment connections

· Laboratory and pilot production systems

The hygienic design supports applications where regular inspection and cleaning are required.

Sanitary Equipment Manufacturing

Equipment manufacturers often need standardized connection components that can be integrated into tanks, pumps, valves, and processing modules.

DINGYUE supplies union sets for OEM applications requiring consistent dimensions, material traceability, and stable supply.

Maintenance and Disassembly

A major advantage of sanitary union fittings is that they allow easier access to the pipeline system during maintenance.

When disassembling a 3A union, operators typically only need to:

1. Stop the process flow and release system pressure.

2. Loosen the union nut using suitable tools.

3. Separate the connection components for inspection or cleaning.

4. Check the gasket condition before reassembly.

During maintenance, attention should be paid to:

· Proper alignment between connection parts

· Condition of gasket sealing surfaces

· Thread wear on the union nut

· Damage or deformation of sealing components

Replacing worn gaskets and maintaining clean sealing surfaces helps extend the service life of the connection assembly.

Frequently Asked Questions

Q1: What is the main structural difference between a 3A union and an SMS or DIN union?

A: A 3A union uses US imperial tubing sizes and specific bevel-seat or flat-face sealing geometries conforming to American 3-A standards, whereas SMS and DIN unions follow European dimensional and thread standards.

Q2: Can I interchange parts from different manufacturers for a 3A union?

A: While a standard 3A union follows nominal dimension guidelines, slight machining tolerances on spanner threads and gasket seats can vary; sourcing complete sets or verified matching components from the same supplier is recommended for leak-free performance.

Q3: Are 3A Sanitary Stainless Steel Union Fittings suitable for pharmaceutical applications?

Yes. 3A union fittings made from 316L stainless steel are commonly used in pharmaceutical and clean processing systems where hygienic design and reliable maintenance access are required.

Q4: Can I use replacement parts from different union suppliers?

Although 3A union dimensions follow standard requirements, machining tolerances and component matching may vary between manufacturers. Using a complete matched union set helps ensure proper sealing performance.

Q5: Which stainless steel material should I choose, 304 or 316L?

304 stainless steel is commonly used for general food and beverage applications. 316L stainless steel is preferred for pharmaceutical, chemical, and applications requiring higher corrosion resistance.

Q6: What gasket materials are available for 3A union fittings?

DINGYUE supplies different gasket options including EPDM, Silicone, FKM, and PTFE. The suitable material depends on temperature, cleaning chemicals, and process media.
