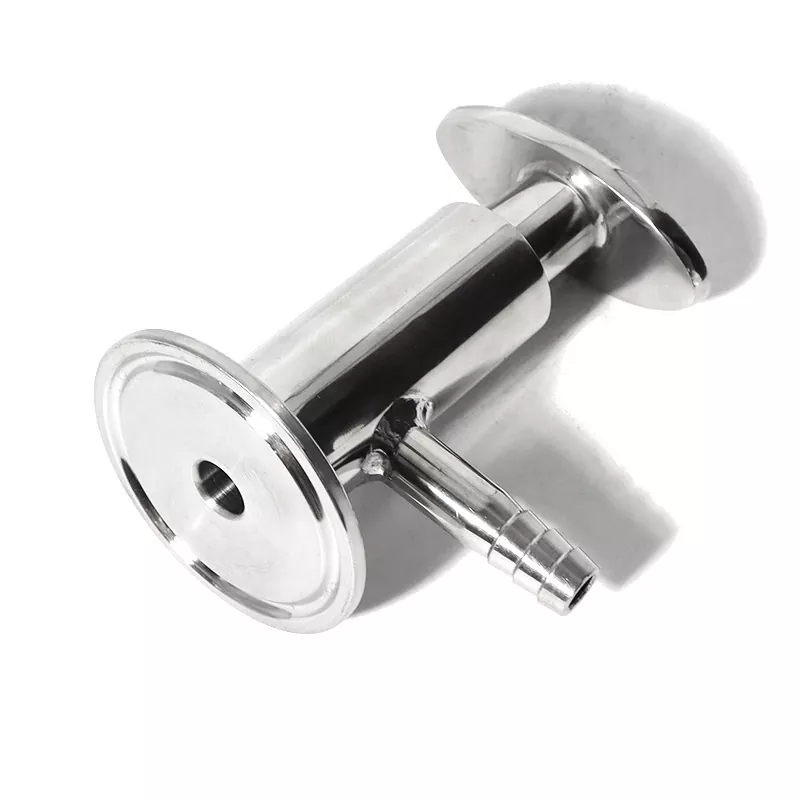

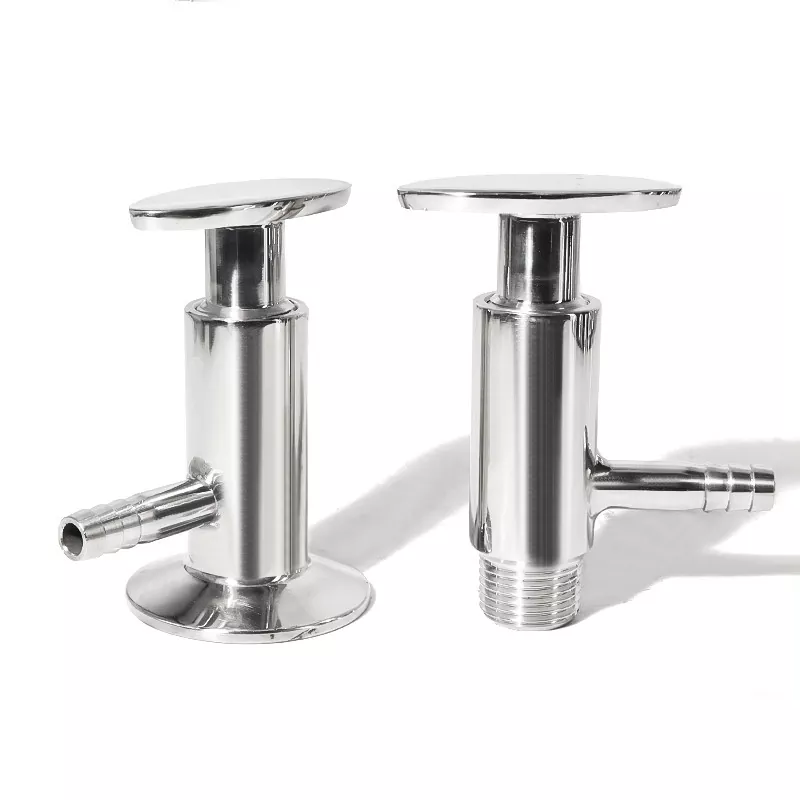

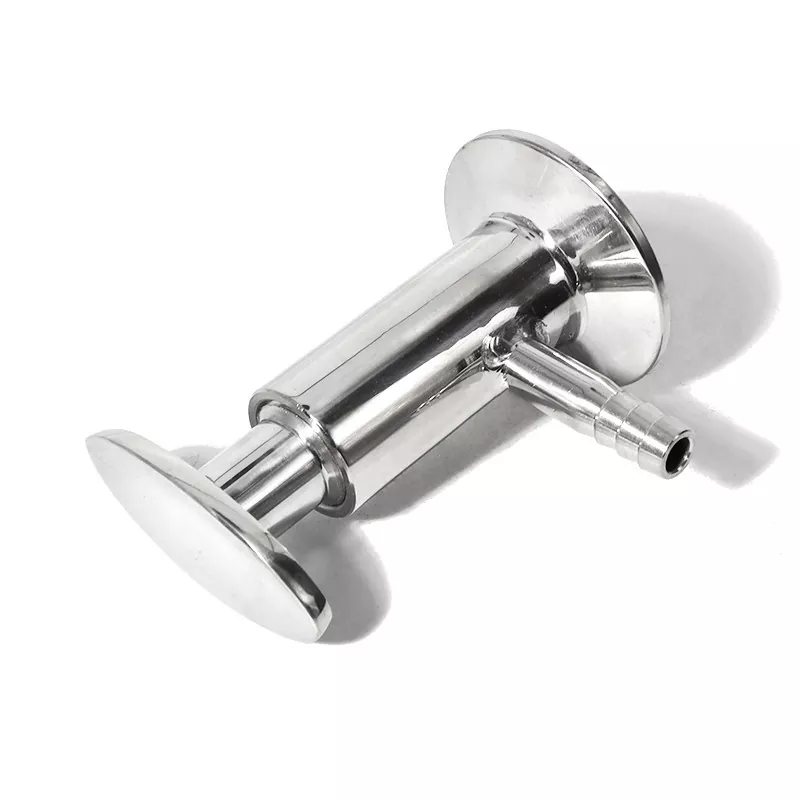

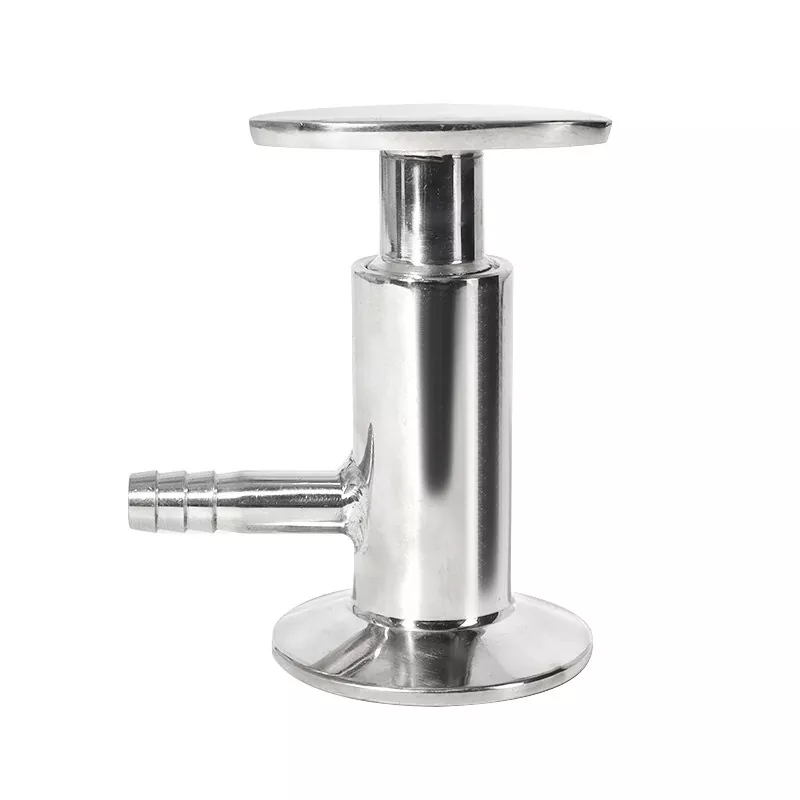

Tri-Clamp Sample Valve

During beverage and fermentation production, regular sampling is essential for checking taste, quality, and process conditions. The DINGYUE Tri-Clamp sample valve provides a convenient access point for collecting liquid samples directly from the pipeline while helping maintain the cleanliness of the process system.

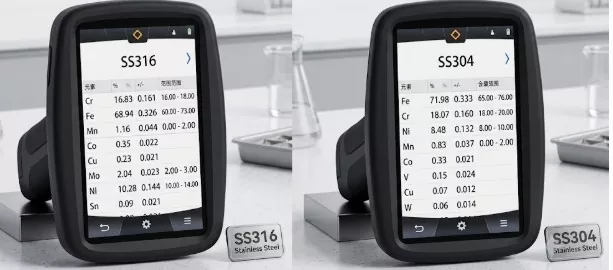

With a sanitary clamp connection and 316L stainless steel construction, the valve is suitable for applications requiring frequent sampling and easy cleaning. It is commonly installed in beer brewing systems, wine processing lines, dairy equipment, and other hygienic fluid applications where operators need to monitor product conditions without affecting the entire production process.

Technical Specifications

Reliable Sealing for Clean and Controlled Sampling

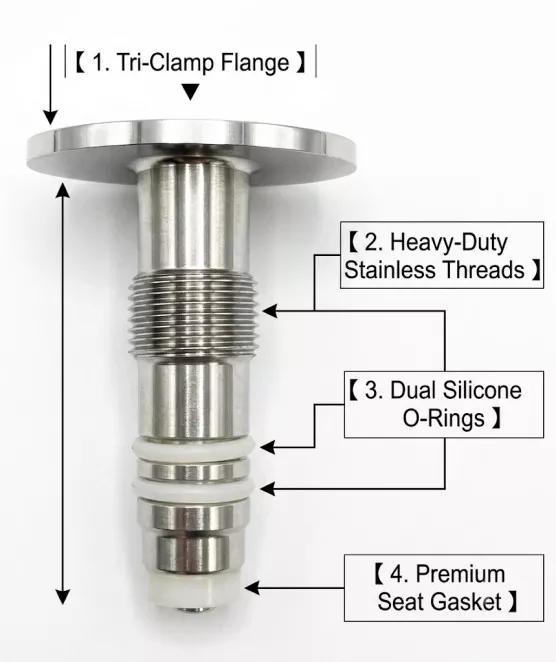

During liquid sampling, pressure changes inside the pipeline can cause leakage or unwanted splashing if the sealing structure is not designed properly. The silicone sealing rings inside the DINGYUE tri clamp sample valve provide a tight contact surface during opening and closing, helping guide the sample flow smoothly into the collection container while reducing external leakage.

This sealing design helps maintain a cleaner sampling process, especially in applications where product loss and workplace cleanliness are important considerations.

Maintain Sample Purity During Testing

For breweries, dairy plants, pharmaceutical facilities, and other sanitary processing environments, the accuracy of a sample depends on keeping the sampling path clean.

The sealing rings create an isolated flow area inside the valve, helping prevent external contaminants from entering the sample path. Combined with proper cleaning or sterilization procedures, the valve supports more reliable sampling results by reducing the risk of sample contamination during quality checks.

Protect Internal Components for Long-Term Operation

When processed liquids enter mechanical gaps or threaded areas, dried residues can affect valve operation and make maintenance more difficult. The sealing structure helps keep product media away from critical internal components, reducing residue buildup and unnecessary wear.

As a result, the tri clamp sample valve can maintain smoother operation over repeated sampling cycles, making it suitable for production lines that require frequent inspection and monitoring.

Applications

1）Beer & Brewing

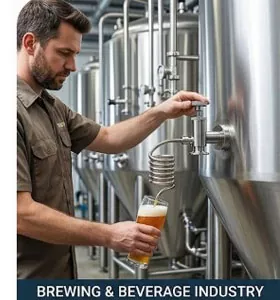

This is the most classic setup. You'll usually see this tri clamp sample valve installed on fermentation tanks, storage tanks, or product pipelines. It lets brewers easily check sugar levels, alcohol content, yeast health, and overall flavor. Plus, the curved nozzle is perfect for hooking up a sampling coil (or "pigtail") to catch a smooth pour under pressure without too much foam.

2）Dairy & Food Processing

Perfect for production lines making yogurt, milk, juice, or sauces. It allows teams to safely draw quick liquid samples to test for bacteria or impurities, making sure every batch is clean, safe, and delicious before it hits the shelves.

Precautions

Safe Sampling Under Pressure

The "Why": Inside the tanks or pipelines, liquids are usually under high pressure. If you open the valve too fast, the liquid can shoot out like a shaken soda can.

The "How": Always open the tri clamp sample valve very slowly! Turn the knob gently to let the liquid trickle out. If you are sampling beer or other fizzy, carbonated drinks, we highly recommend hooking up a sampling coil (or "pigtail") to the nozzle first. This coil naturally slows down the liquid and lowers the pressure, giving you a smooth, clean pour without making a giant mess or causing too much foam.

Trusted by Industry Applications Worldwide

DINGYUE sanitary fluid control components are used in demanding environments where cleanliness, reliability, and consistent performance are essential. Our products support applications across food and beverage processing, pharmaceutical manufacturing, semiconductor-related systems, and advanced liquid cooling projects.

From hygienic production lines to high-purity cooling systems, DINGYUE works with equipment manufacturers, engineering companies, and industrial partners to provide stainless steel valves and components designed for long-term, stable operation.

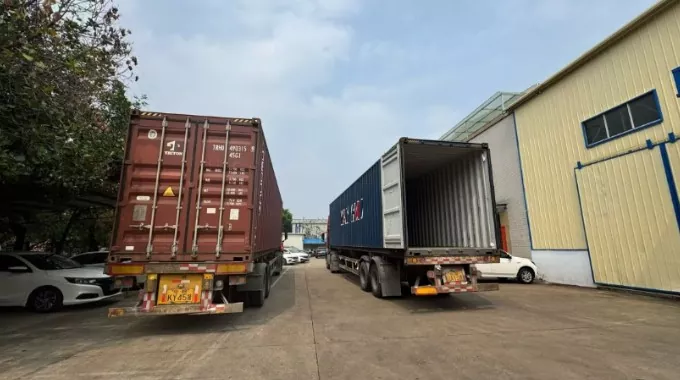

Packaging, Loading & Global Logistics
