Hygienic Non Return Valve

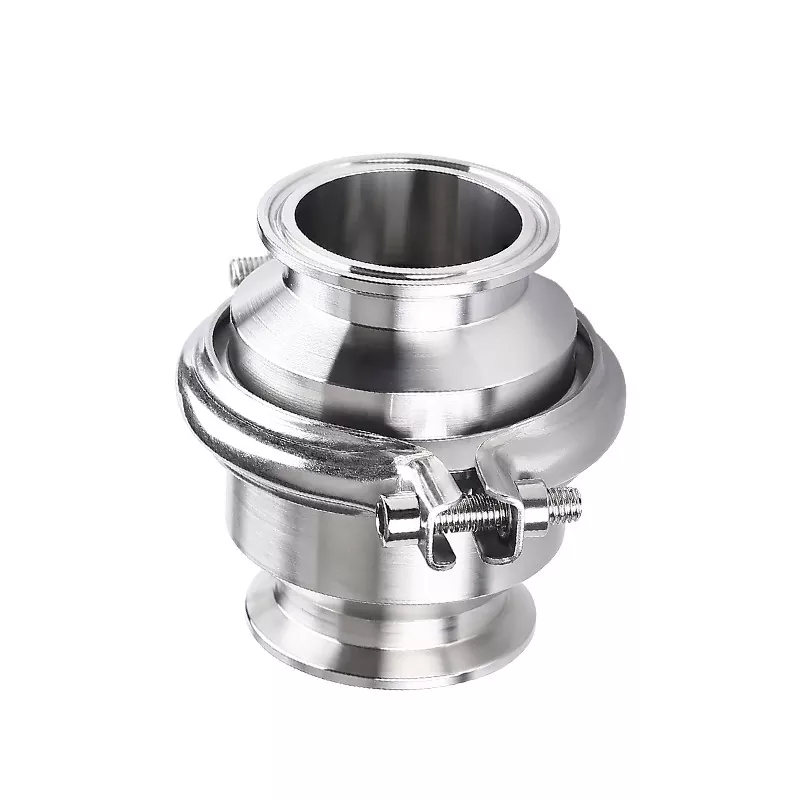

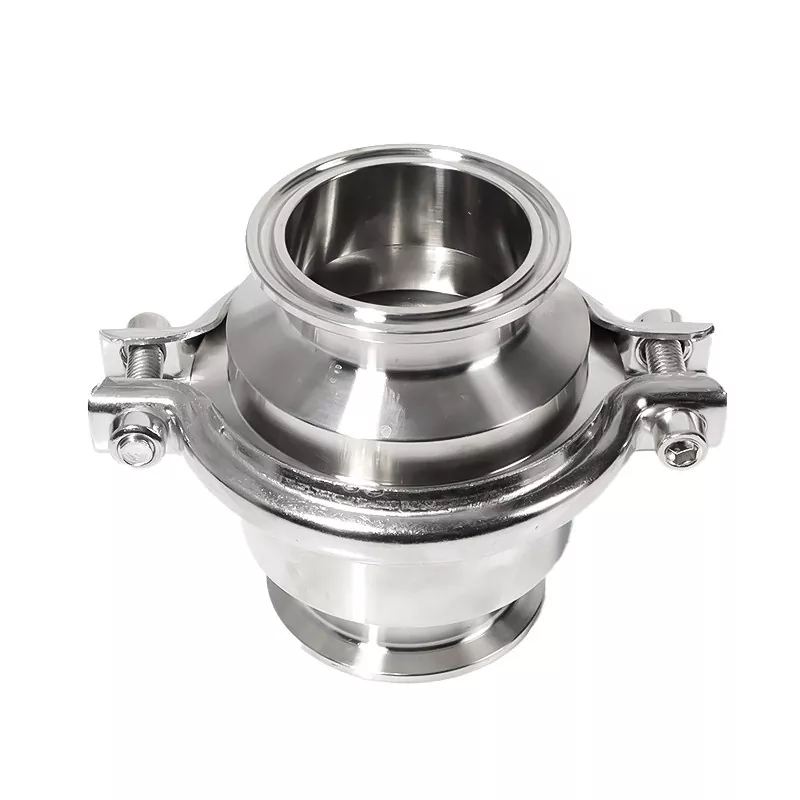

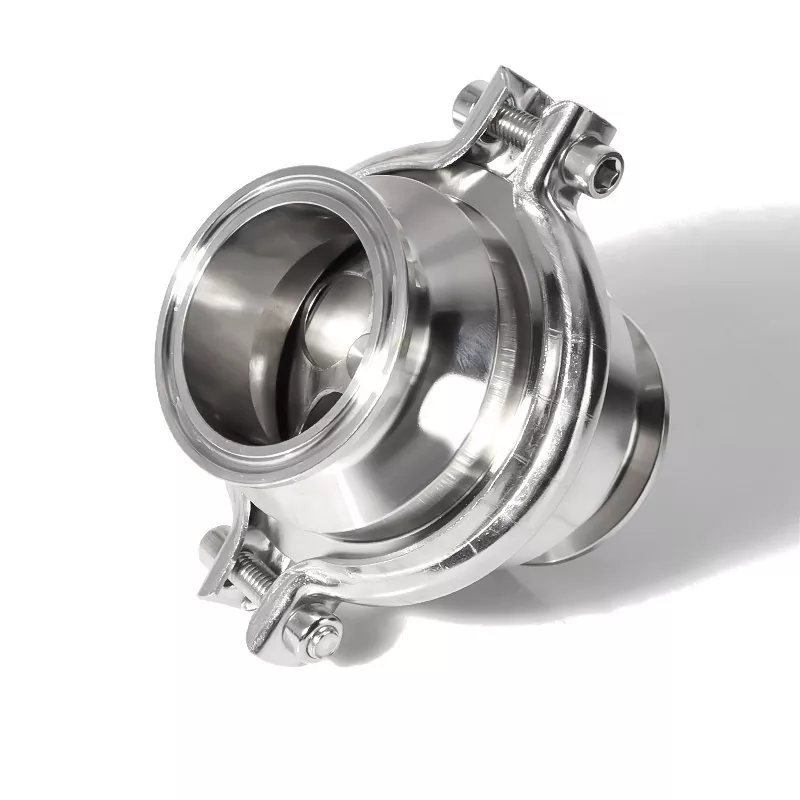

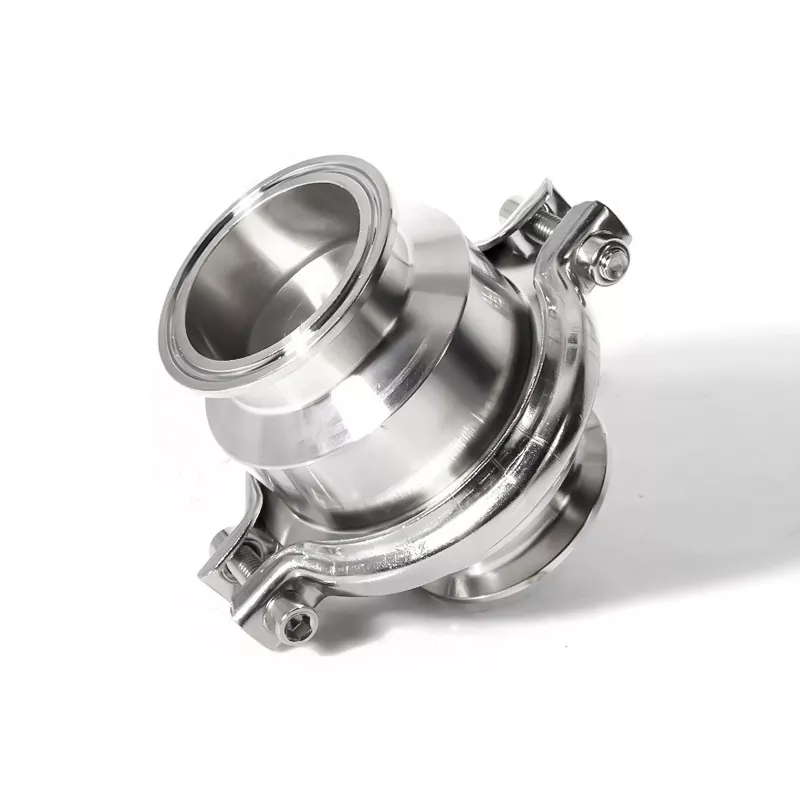

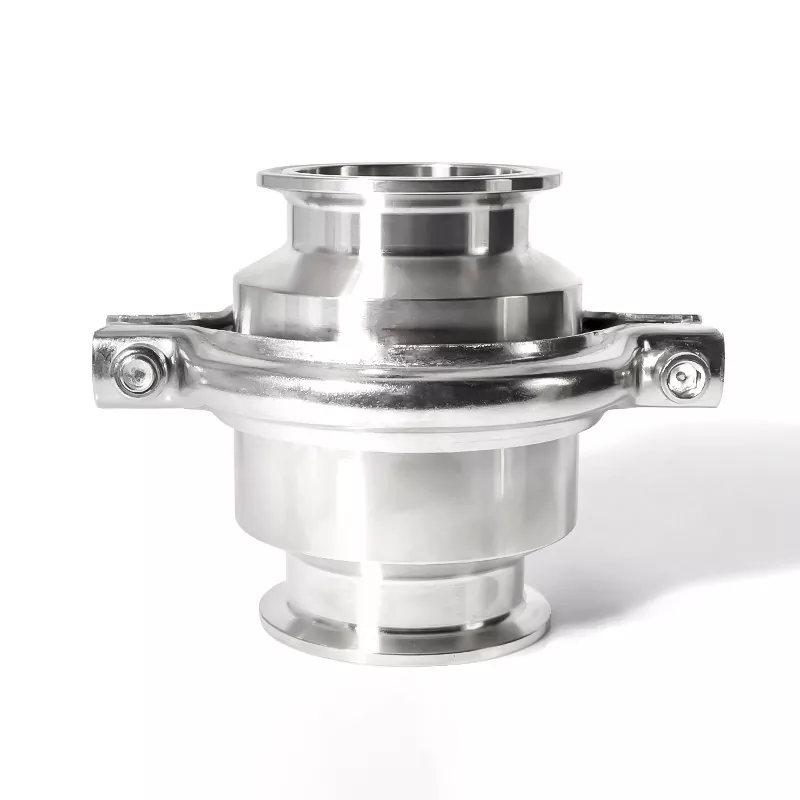

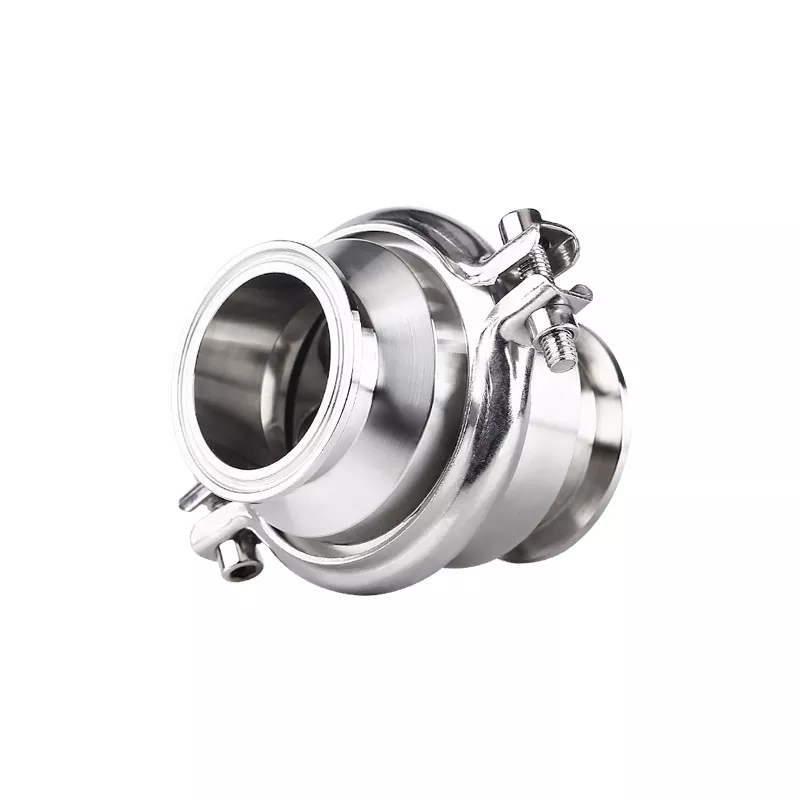

In sanitary processing systems, preventing reverse flow is essential for protecting equipment, maintaining process consistency, and reducing contamination risks. The DINGYUE hygienic non return valve uses an automatic closing mechanism that allows fluid to pass in the intended direction while stopping backflow when pressure changes occur. Manufactured from 304/316L stainless steel with hygienic surface finishing, the valve is suitable for applications such as beverage transfer lines, pharmaceutical pipelines, CIP systems, and liquid cooling loops. Its clamp connection design enables convenient installation and maintenance, making it a practical choice for sanitary piping systems that require reliable flow protection.

Specification Details

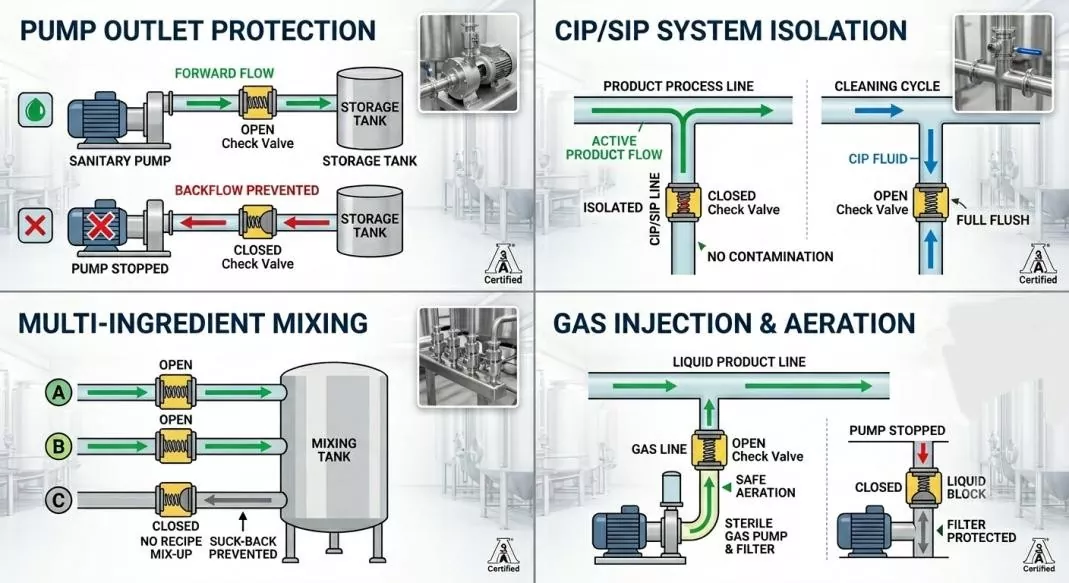

Applications

1. Preventing Backflow in Process Pumps

Where: Installed directly at the outlet of sanitary centrifugal pumps, lobe pumps, and feeding lines.

Why it matters: When the pump stops, fluid automatically tries to rush backward due to gravity. Our 3-A check valve closes instantly to protect your expensive pumps from reverse impact and prevents sterilized product from mixing back into raw ingredient tanks.

2. Cross-Contamination Barrier in CIP/SIP Systems

Where: At the intersection of main product lines and CIP (Clean-in-Place) chemicals or steam sterilization (SIP) lines.

Why it matters: It acts as an absolute safety barrier. It allows cleaning fluids or steam to flow during cleaning cycles but guarantees that ZERO chemical detergent or wastewater can ever leak back into your beverages, dairy, or pharmaceutical products during production.

3. Tank Charging & Multi-Ingredient Mixing Lines

Where: In vertical lines feeding into batching tanks, fermentation vessels, or storage tanks.

Why it matters: When mixing multiple ingredients (e.g., water, sugar, flavorings), pressure drops in one line can cause "suck-back" from the tank. Our hygienic non return valve ensures ingredients only flow into the tank, eliminating the risk of recipe contamination.

4. Gas Injection & Aeration Systems

Where: On gas lines injecting CO 2 into beer/soda, or sterile air into fermentation tanks.

Why it matters: It allows gas to blow in smoothly but instantly blocks liquid from creeping back into the gas pipes or fouling delicate sterile air filters when the gas pressure drops.

Product Advantages

1. It's an Automatic "One-Way Traffic Cop"—No Effort Required

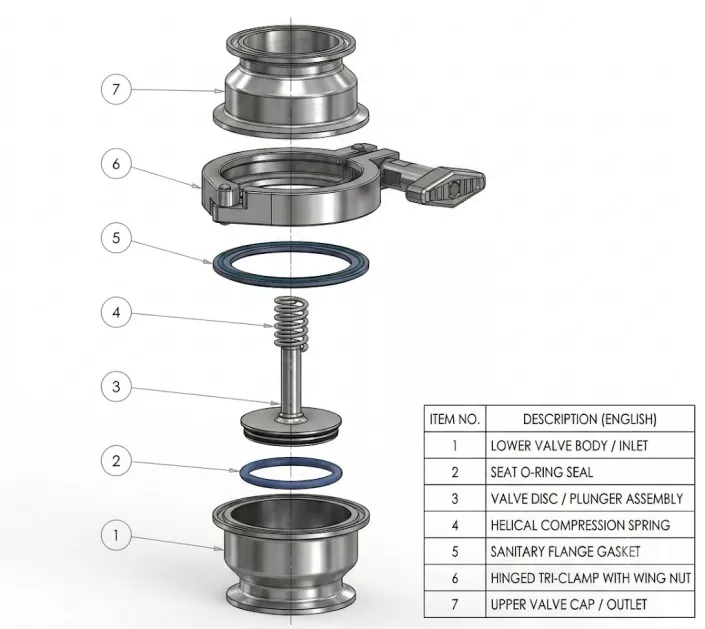

The Fluid Does All the Work: A check valve doesn't need electricity, air pressure, or anyone to manually turn it. When water flows forward, it pushes the hygienic non return valve open. The second the water tries to flow backward, an internal spring or flap snaps shut in milliseconds, locking it down.

Why a Butterfly Valve Can't Compete:

A butterfly valve is "blind" to the direction of the water. To make a butterfly valve stop backflow, you would need to install expensive sensors to detect the water flow, plus an electric or pneumatic motor to turn the handle. Not only is this setup incredibly expensive, but by the time the sensor wakes up and the motor finally turns the valve shut, the backward-flowing water has already rushed right through.

2. It's a "Dirty Water Blocker" and a "Bodyguard" for Your Equipment

Keeps Dirty Water from Ruining Premium Ingredients: In food, beverage, or pharmaceutical production, the front of the line holds freshly sanitized, clean ingredients, while the back holds processed liquids. If the processed liquid suddenly flows backward, the entire batch is ruined. A check valve acts like a strict firewall, ensuring that clean water stays clean and processed water can never turn back.

Prevents "Water Hammer" from Smashing Your Pumps: Imagine the liquid inside a pipe is like a speeding freight train. If the water pump suddenly shuts off, that "train" of water will violently slam backward due to inertia. This massive impact—known as "water hammer"—is incredibly powerful and can easily crack expensive pumps, filters, or heat exchangers. A check valve slams the door shut the exact millisecond the water tries to reverse, absorbing the shock and protecting your high-value equipment.

Manufacturing Process

Premium Material: High-grade SS304/SS316L stainless steel with full MTR traceability.

Precision Forging: Forged valve body eliminates porosity, ensuring high durability and hygiene.

CNC Machining: High-precision CNC turning for perfect Tri-clamp dimensions and leak-proof performance.

Sanitary Polishing: Internal surface finish reaches Ra < 0.4μm, preventing bacterial growth and ensuring easy cleaning (CIP).

100% Tested: Every hygienic non return valve undergoes rigorous pressure and backflow leakage tests before shipping.

Quality Certified: Equipped with FDA-compliant seals (EPDM/Silicone/Viton).

Faq

Is this hygienic non-return valve made of real stainless steel? Will it rust?

Yes, it is made of high-quality SS304 or SS316L. It is rust-proof and safe for food, drinks, and medicine. It

How hard is it to clean?

It's very easy! Thanks to the Quick-Install (Tri-clamp) design, you can take it apart by hand in seconds. The inside

Can I use it for hot liquids?

Definitely. We use special FDA-approved seals that can handle high temperatures (up to 120°C/248°F). It's perfect for hot water, milk, or steam cleaning.

Will it fit my current pipes?

Most likely, yes. Our hygienic non return valve follow international standards (like ISO, DIN, and SMS). If you have standard pipes, our valve

Does it really stop the water from flowing back?

Yes, 100%. Every single hygienic non return valve is pressure-tested before we ship it. It seals tightly to stop backflow and protect

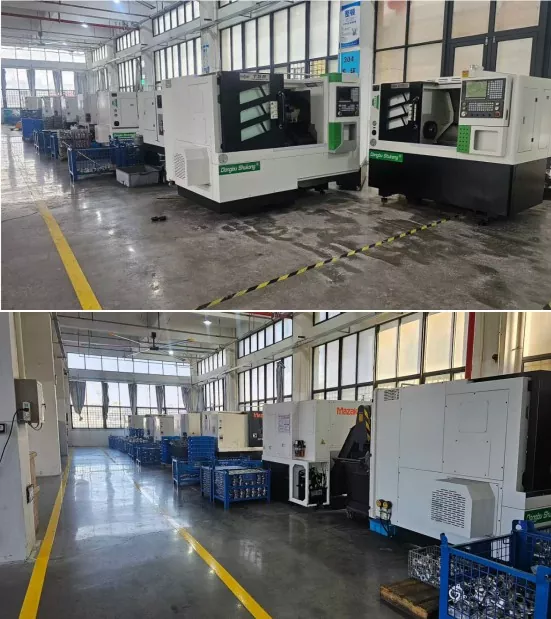

Advanced Manufacturing Workshop

Some shops still make metal parts by hand, which means one part might fit and the next one might not. Not us. Our machines do 100% of the hard work using precise computer programs. Every single thread and seal is perfectly cut. You get heavy-duty, commercial-grade hardware that works flawlessly right out of the box.

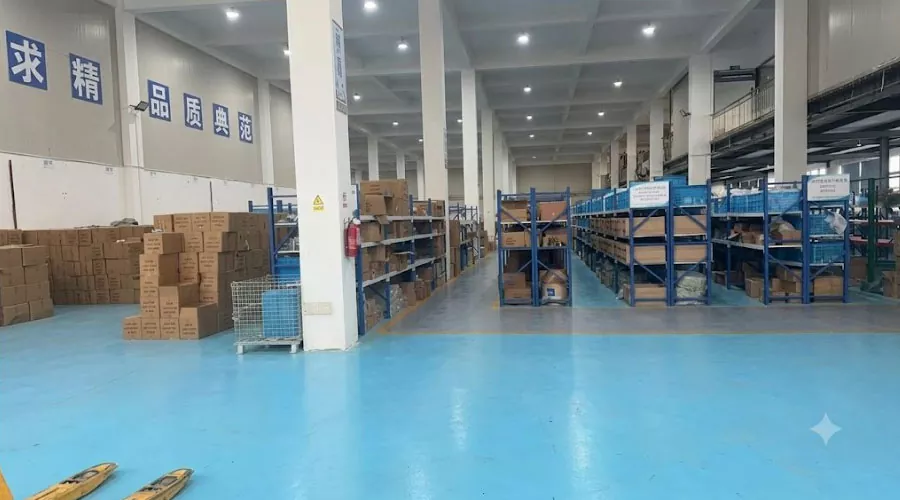

Our Warehouse

When you have a project to finish, time is money. You can't afford to waste days wondering where your package is. That's why we invest heavily in keeping our shelves packed at all times. Look at our warehouse—it's clean, organized, and filled with products ready to go. This massive scale allows us to cut down processing times to a minimum. We don't just promise fast shipping; we deliver it.
